Default Modification: RV-10 Step bolt access

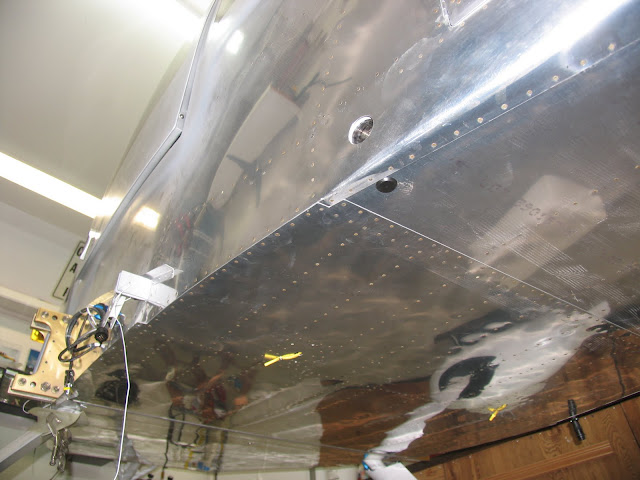

There was some discussion about using the stall warning access panels on the baggage floor to facilitate future access to the step bolts. While I still have a ways to go before needing to do this, what do you think of my proposed locations? Right now, the holes are essentially on top of the step, but I could move them aft of the stiffener as well. Thanks for your thoughts! -Jim



Uploaded with ImageShack.us
Reply With Quote
  #2
Old 12-16-2010, 07:23 PM
douglassmt douglassmt is offline

Join Date: Nov 2008
Location: Missoula, MT
Posts: 709
Default Me too

I did exactly the same thing, in almost the same place. In hindsight, I think the holes couldn't get close enough to the outboard side of the aircraft to get good access to the bolts. Still, it was really easy and cheap to do and it's better access than none.
__________________
Bryan Douglass
=VAF= 2020 dues paid
RV-10 N242BD
Reply With Quote
  #3
Old 12-16-2010, 08:08 PM
aturner's Avatar
aturner aturner is offline

Join Date: Jan 2005
Location: Clarion, Pennsylvania
Posts: 538
Default

Given the length of the bolt and distance to the floor, I don't think you will be able to get the bolt in and out without an access cover directly over the bolt. This means you have to shoehorn the access cover up into the corner, with an edge running under the floor rib:

http://forums.matronics.com/files/p1000864_520.jpg

-Andy
__________________
-Andy Turner
RV-10 N784JC
Reply With Quote
  #4
Old 12-16-2010, 08:20 PM
N427EF N427EF is offline

Join Date: Oct 2005
Posts: 1,514
Default Another solution

The best solution I have seen was a nutplate attached to the top of the sleeve and a 1" access hole in the bottom skin.
I did not know or think about that and made 2 one inch access holes, one in the baggage floor and one in the bottom skin, just large enough to access the nut with a socket. The removable side cover was an unintended consequence due to my lack of foresight.



__________________
Ernst Freitag
RV-8 finished (sold)
RV-10 Flyer 600 plus hours
Running on E10 mogas
Don't believe everything you know.
Reply With Quote
  #5
Old 12-18-2010, 12:22 AM
Janekom's Avatar
Janekom Janekom is offline

Join Date: Jan 2006
Location: South Africa
Posts: 817
Default

I have made mine as two little doors with the hinge FWD side and further to that I have also installed my two com antennas directly below the doors. So now I have access to the step bolts as well as the antenna connectors.
__________________
Jan Hanekom
South Africa
Approved Person nr 325
http://www.rvbits.com
RV10 - ZU-XOX - (Flying)
RV7A - ZU-JRV - (Flying)
RV10 - ZU-JVR - (Written off)
RV7 - ZU-LOL - (Flying)
RV10 - ZU-RVI - (Flying)
RV7A - ZU-MER (Bought back)
RV7A - ZU-JAD (Sold Flying)
Dues paid for 2020 WITH A SMILE
Reply With Quote
  #6
Old 12-18-2010, 09:13 AM
Mike S's Avatar
Mike S Mike S is offline
Senior Curmudgeon

Join Date: Sep 2005
Location: Dayton Airpark, NV A34
Posts: 15,187
Default

Quote:
Originally Posted by Janekom View Post
I have made mine as two little doors with the hinge FWD side and further to that I have also installed my two com antennas directly below the doors. So now I have access to the step bolts as well as the antenna connectors.
Great idea, I would definitely steal tip that if I was still in the building process.
__________________
Mike Starkey
VAF 909

Rv-10, N210LM.

Flying as of 12/4/2010

Phase 1 done, 2/4/2011

Sold after 240+ wonderful hours of flight.

"Flying the airplane is more important than radioing your plight to a person on the ground incapable of understanding or doing anything about it."
Reply With Quote
  #7
Old 12-29-2010, 06:42 AM
flion's Avatar
flion flion is offline

Join Date: Dec 2007
Location: Flagstaff, AZ
Posts: 2,581
Default

Quote:
Originally Posted by N427EF View Post
The best solution I have seen was a nutplate attached to the top of the sleeve and a 1" access hole in the bottom skin.
I'm thinking ahead to that point and I don't think I like the idea of having a bolt able to drop out (with subsequent disaster waiting at the step). But, combining an idea from the next post, if you put the nutplate below and an access door above for the bolt and a comm antenna mount, it should be pretty nice.
__________________
Patrick Kelley - Flagstaff, AZ
RV-6A N156PK - Flying too much to paint
RV-10 14MX(reserved) - Fuselage on gear
http://www.mykitlog.com/flion/
EAA Technical Counselor #5357
Reply With Quote
  #8
Old 12-29-2010, 07:20 AM
N427EF N427EF is offline

Join Date: Oct 2005
Posts: 1,514
Default Keep It Simple

flion,
You bring up valid reasons to do what you have outlined.
This seems to be one place where you can make it unnecessarily complicated.
First, a bolt will not come loose out of a nutplate and if it did it would not be able to fall out because it will bottom out against the plug. At worst it will be left stuck just keeping the bottom end of the step tubes engaged and you will notice a wiggly step.(time to check on it)
You really do not need access to the back of the antenna, terminate the cable with enough slack and plug it in before you mount it, the reverse is true for disconnecting.
I am trying to save hours of labor making access holes on top if you can do it from the bottom with a step drill in about 5 minutes or less.
__________________
Ernst Freitag
RV-8 finished (sold)
RV-10 Flyer 600 plus hours
Running on E10 mogas
Don't believe everything you know.
Reply With Quote
  #9
Old 12-30-2010, 05:58 AM
blahphish's Avatar
blahphish blahphish is offline

Join Date: Jul 2010
Location: Marietta, GA (KCZL)
Posts: 308
Default Purpose?

New builder question - what is the purpose of a customization in this area? Are the steps prone to come loose? Have there been a rash of problems in this area or is this just one of those 'better to do it now' kind of ideas?
__________________
Brian Unrein
RV10 N42BU 900+ hours!
First flight 6-16-12
https://N42BU.com
Reply With Quote
  #10
Old 12-30-2010, 06:56 AM
N427EF N427EF is offline

Join Date: Oct 2005
Posts: 1,514
Default Bang up job on shin

Van's instructions have you install the step somewhat early in the building process. Once the floor is riveted on you cannot remove the step anymore.
(unless you drill out the rivets holding the floor down)

Having a removable step is simply a convenience while you build so you won't bang up your shin everytime you walk past the step.
__________________
Ernst Freitag
RV-8 finished (sold)
RV-10 Flyer 600 plus hours
Running on E10 mogas
Don't believe everything you know.
Reply With Quote
