Default Balancing Tires/Wheels - Homemade Balancer

My plane has always had a little vibration around 22 to 24 knots. This has been true with several sets of tires, from Van's cheapies to Michelin to my current favorite, retreads from Desser. I've never worried too much about it, since that speed is a bit faster than typical taxi speeds, and during takeoff and landing, one passes through those speeds fairly quickly. However, after the last annual, during which I rotated the tires inside to out, the vibration showed up a fair bit more noticeable. In fact, it was quite noticeable right after landing as well, probably picking up the 2x excitation speed of 46 knots.

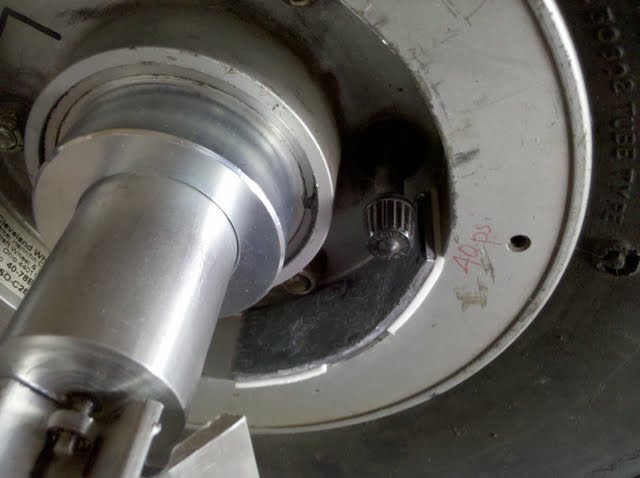

I built the balancer shown in the pictures below. I used a couple very small ball bearings for minimal friction, a precision 1.25" shaft, and a couple collars to clamp the wheel bearings snugly. I put the first wheel on, and it lazily found a preferred position. It didn't seem like a lot of imbalance, but it took a fairly sizable piece of lead (don't tell California) to bring it to balance (the small wheel diameter). The other wheel took a piece perhaps 1/4 the size of the one in the picture. I used some 3m double sticky pads to attach the lead.

I went out flying, with some taxiing up to 28 knots, and no vibration at all! On landing, I held the speed up down the runway, exploring the whole range of speeds, and not the slightest sign of any vibration.

What was quite a surprise is how little imbalance there seemed to be when I first put the wheel on the balancer. I really would not have thought it to be a problem, until I saw how much lead it took.

The small bearings, without seals, are key, as anything larger probably would have had too much friction.





__________________
Alex Peterson
RV6A N66AP 1400+ hours
Maple Grove, MN
www.n66ap.alexap.com
Reply With Quote
  #2
Old 03-20-2010, 10:45 PM
Greg Arehart's Avatar
Greg Arehart Greg Arehart is online now

Join Date: Jul 2007
Location: Reno, NV/Atlin, BC
Posts: 2,077
Default

Alex,

Very nice. Did you make your own lead sheet for the weights (leftover from drilling elevators)?

greg
__________________
Greg Arehart
RV-9B (Big tires) Tipup @RTS
N 7965A Done with Phase I, part II and free again!
Superior IO-360, Catto 3-blade FP
Dynon & Garmin avionics
Yep, I'm in for 2014
Reply With Quote
  #3
Old 03-20-2010, 11:53 PM
elippse elippse is offline

Join Date: Dec 2006
Location: Arroyo Grande, CA
Posts: 938
Default Tire and prop balancer

Check out the back-issues section of the Contact! magazine web-site for the prop balancer that a fellow used the design of to build a tire and wheel balancer.
Reply With Quote
  #4
Old 03-21-2010, 05:32 AM
Tony Spicer Tony Spicer is offline

Join Date: Dec 2005
Location: Wilmington, NC
Posts: 449
Default

And if you're not a welder, have a look at this:

http://www.harborfreight.com/cpi/cta...emnumber=98488

Much more sensitive than the two bearing type. Then stop by the local tire store and get a handfull of stick on weights:

http://picasaweb.google.com/tonyboyt...91680719732562

Tony
Reply With Quote
  #5
Old 03-22-2010, 10:42 PM
swaneymj swaneymj is offline

Join Date: Mar 2005
Posts: 19
Default

I don't have one of these, but it's on my Christmas list. See Rod Bower Aviation's Tire Balancer and Bearing Packer at:
http://www.ramairforhomebuilts.com/products.htm
Mark S.

Last edited by Mike S : 03-22-2010 at 11:39 PM.
