  #61
Old 08-31-2019, 07:28 PM
DaleB's Avatar
DaleB DaleB is offline

Join Date: Sep 2012
Location: Omaha, NE (KMLE)
Posts: 2,153
Default

Well, its finished for now. I installed everything yesterday, but the D180 wasn't getting GPS data. Found some wires swapped, fixed that, but still no joy. This morning I replaced the ancient USB to serial adapter I had (bought years ago and used for all manner of lab and bench experiments) with a new one from Best Buy. That worked. I took a 45-minute test flight, got ADS-B traffic on the display, played with the flight plan, tested the AP and CDI, everything works as it should. We'll need to spend some time setting up the screen to show what we want, but that's pretty simple to do. I requested a PAPR report post-flight, because I've been making adjustments to the echoUAT threshold settings. Even that was near perfect -- 0.26% BARO ALT failures, so nothing bad.

Overall I'm happy with it. It doesn't block the radio display like I was afraid it might. I'll probably print one more mount with a few tweaks to make it more stable when using the touch screen.

Reflection from the screen is a little much to get good pictures, but not enough to make it difficult to read. A non-glare screen would have been a plus, but it's pretty low on the list of things to gripe about. It's more legible then the D180, really. I like the alerts for traffic, airspace, etc. Now the only thing left to do is figure out which AV board volume control to tweak to get the audio louder -- I can barely hear it with the iFly volume up full. Too bad you can't get at those without pulling the forward skin, that's a PITA.

TONS better than the 496, and better than the 496 and a tablet. It's a win, I'm happy with it.
__________________
Dale

Omaha, NE
RV-12 # 222 N980KM "Screamin' Canary" (bought flying)
Fisher Celebrity (under construction)
Previous RV-7 project (sold)
Reply With Quote
  #62
Old 09-01-2019, 07:08 AM
Mich48041 Mich48041 is offline

Join Date: Apr 2008
Location: Riley TWP MI
Posts: 2,941
Default

Quote:
Now the only thing left to do is figure out which AV board volume
control to tweak to get the audio louder -- I can barely hear it with the iFly
volume up full.
With the D-180 RV-12, The GPS audio does not get
amplified by Van's control board. Use a ground loop isolator between the iFly
and the Flightcom 403 intercom pins 18 and 19 aux music input.
Perhaps eBay item number:151617844291
https://previews.dropbox.com/p/thumb...ue&size_mode=5
__________________
Joe Gores
RV-12 Flying

Last edited by Mich48041 : 09-01-2019 at 07:26 AM. Reason: Added link to schematic
Reply With Quote
  #63
Old 09-01-2019, 07:42 AM
jpowell13 jpowell13 is offline

Join Date: Nov 2008
Location: Baton Rouge, LA
Posts: 641
Default SD card

I've been flying with an iFly 720 for several years and really like it. The only problem I ever had was that the data on the SD card got corrupted once on a short x-country and the Maps wouldn't come up. Since then I carry a backup SD card with map data on it. It's only happened that one time. John
Reply With Quote
  #64
Old 09-01-2019, 08:13 AM
Dave12 Dave12 is offline

Join Date: Oct 2010
Location: Elkton, Md.
Posts: 1,458
Default

Dale, will your DynonA/P ďcut the corner ď as it approaches the waypoints now that itís talking to the Ifly?
__________________
Wag Aero Sport Trainer sold and wrecked
N588DF RV12 #336 Sold, alive and well in New York
N73DF RV12 #244 Sold, alive and well in Florida
N91 RV RV9 I wish I could say I built this one! Mark Santoleri hit the ball out of the park on this gem.
Reply With Quote
  #65
Old 09-21-2019, 08:27 AM
Piper J3's Avatar
Piper J3 Piper J3 is offline

Join Date: Nov 2014
Location: Hinckley, Ohio
Posts: 1,570
Default

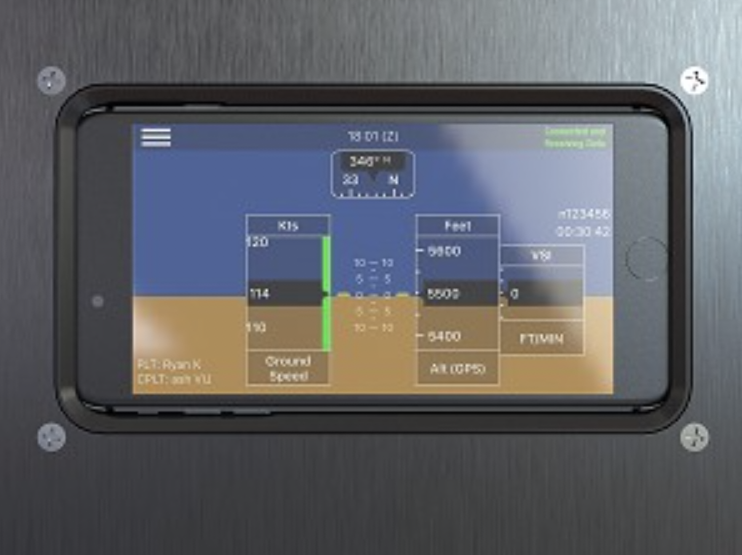

Iíve decided to get serious about replacing my Gamin 296 with an Apple device so I can run ForeFlight on a second screen. I have a Mini iPad mounted at an angle below the pilotís D-180 and I like this mounting position.

ForeFlight allows multiple devices to be used at same time on a single account. Now I want to replace the 296 with an iPhone 6S+ that has a 5.5Ē display. ForeFlight has cockpit sharing and synch to make one display a master and the second display a slave. This will make programming routes for both displays very simple.

I can buy a refurbished iPhone 6S+ for $150 and a Guardian Avionics SmartPanel mount for $129.

Stay tunedÖ





__________________
-
Jim Stricker
Hinckley, Ohio (1OA2)
EAA #499867
PPL/ASEL 1970 - Sport Pilot since 2007
80 hrs Flying Aeronca Chief 11AC N86203
1130 hrs Flying 46 Piper J-3 Cub N6841H
RV-12 E-LSA #120058 AWC July 2012 N633CM
RV-12 Bought Flying Oct 2015 with 48TT - Hobbs now 522

LSRM-A Certificate 2016
Special Thanks... EJ Trucks - USN Crew Chief A-4 Skyhawk
MJ Stricker (Father & CFI) - USAAF 1st Lt. Captain B-17H
Reply With Quote
  #66
Old 09-22-2019, 08:49 AM
Piper J3's Avatar
Piper J3 Piper J3 is offline

Join Date: Nov 2014
Location: Hinckley, Ohio
Posts: 1,570
Default

So, I went out to the plane this morning to see how an iPhone 6S Plus might fit to replace the Garmin 296. By chance, held the mini iPad up over the panel hole and it fits perfectly. On my airplane there is enough clearance between the canopy bow and the panel for the thin iPad. So, there’s my answer – I’m going to run two mini iPad’s on ForeFlight with cockpit sharing between the two displays. I'll probably run the center screen on Sectional map page and the angled screen on Aeronautical map page which is better for viewing traffic and weather.

The new mini iPad will be “fastened” to the panel with Velcro 3/8” discs so unit can be removed for updates. The top four panel screws need to be changed from round head to flat head so unit sits flush.

I’ll decide later if a power cable is desired. The mini iPad has an internal battery that operates for ten hours so I may just run it on its own power.

This will be cool….







host image
__________________
-
Jim Stricker
Hinckley, Ohio (1OA2)
EAA #499867
PPL/ASEL 1970 - Sport Pilot since 2007
80 hrs Flying Aeronca Chief 11AC N86203
1130 hrs Flying 46 Piper J-3 Cub N6841H
RV-12 E-LSA #120058 AWC July 2012 N633CM
RV-12 Bought Flying Oct 2015 with 48TT - Hobbs now 522

LSRM-A Certificate 2016
Special Thanks... EJ Trucks - USN Crew Chief A-4 Skyhawk
MJ Stricker (Father & CFI) - USAAF 1st Lt. Captain B-17H

Last edited by Piper J3 : 09-22-2019 at 08:55 AM.
Reply With Quote
  #67
Old 09-22-2019, 09:46 AM
SPX SPX is offline

Join Date: Dec 2018
Location: San Diego
Posts: 158
Default

Quote:
Originally Posted by Piper J3 View Post
Iíll decide later if a power cable is desired. The mini iPad has an internal battery that operates for ten hours so I may just run it on its own power.
Before deciding, Iíd suggest running your iPad on battery power as close to in the exact configuration as you will be running it in the airplane, and seeing how the battery does. The amount of time that you get on the battery will vary significantly depending on how you have it setup.. screen brightness, WiFi on/off, Bluetooth on/off, the apps youíre running, what you are doing with those apps, etc.

I would not be shocked to hear that your ďten hour iPadĒ battery lasts for 2-3 hours the way that youíre using it.
__________________
RV-9A, Carlsbad Ca (CRQ)
Paid, 09/2019
Reply With Quote
  #68
Old 09-23-2019, 04:55 PM
Piper J3's Avatar
Piper J3 Piper J3 is offline

Join Date: Nov 2014
Location: Hinckley, Ohio
Posts: 1,570
Default

I shouldn't get lost now...

__________________
-
Jim Stricker
Hinckley, Ohio (1OA2)
EAA #499867
PPL/ASEL 1970 - Sport Pilot since 2007
80 hrs Flying Aeronca Chief 11AC N86203
1130 hrs Flying 46 Piper J-3 Cub N6841H
RV-12 E-LSA #120058 AWC July 2012 N633CM
RV-12 Bought Flying Oct 2015 with 48TT - Hobbs now 522

LSRM-A Certificate 2016
Special Thanks... EJ Trucks - USN Crew Chief A-4 Skyhawk
MJ Stricker (Father & CFI) - USAAF 1st Lt. Captain B-17H
Reply With Quote
  #69
Old 09-24-2019, 11:27 AM
Piper J3's Avatar
Piper J3 Piper J3 is offline

Join Date: Nov 2014
Location: Hinckley, Ohio
Posts: 1,570
Default

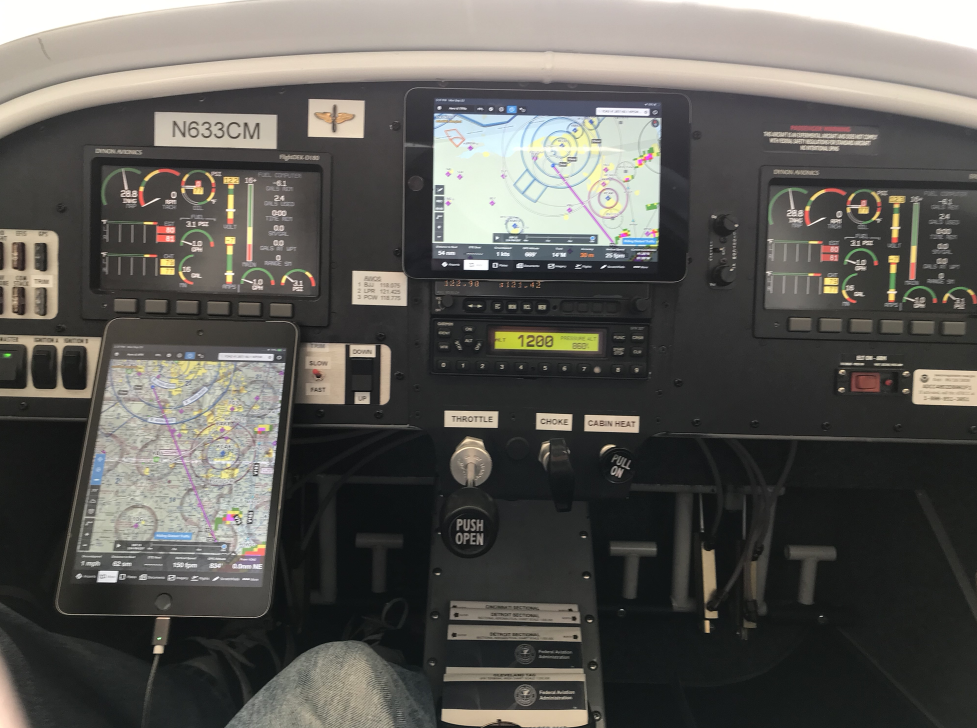

I flew with both mini iPads this morning. Totally cool. 4-leg route was set up on my iPhone at home running FF and then, when I got to the plane, I did cockpit sharing and transferred the route into both mini iPads. In the air I could pan ahead and zoom to see close traffic on one screen while the other remained optimized for cruise flight.

The new center screen (mini 4) used 25% battery for the one-hour flight - not bad. Iíll continue operating on internal battery for the interim.

Tickety Boo.

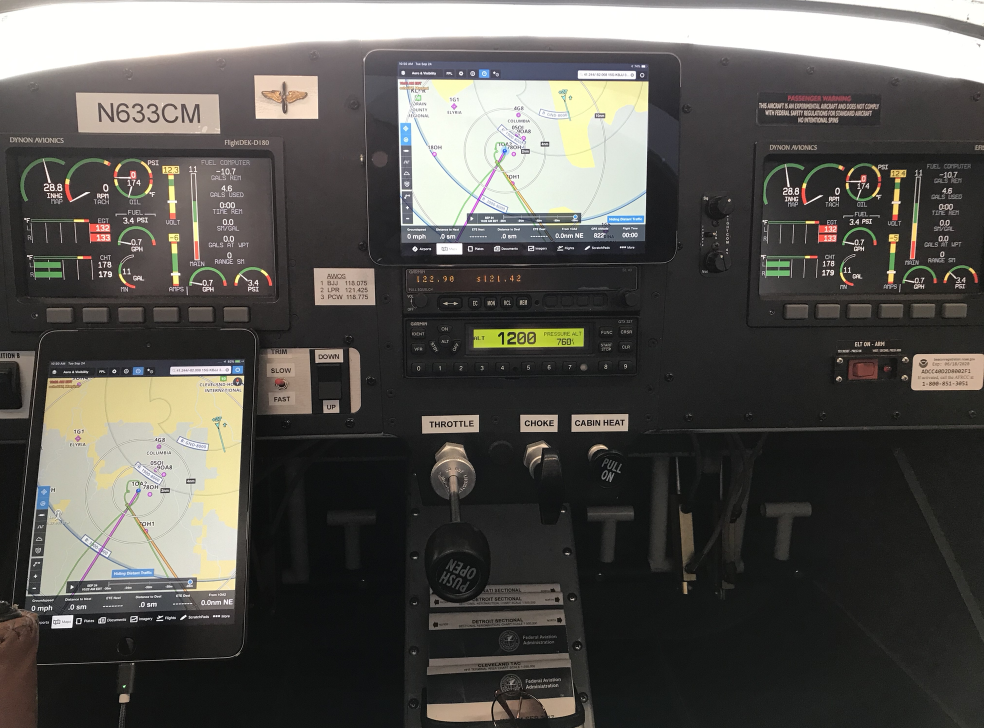

Final installation...

__________________
-
Jim Stricker
Hinckley, Ohio (1OA2)
EAA #499867
PPL/ASEL 1970 - Sport Pilot since 2007
80 hrs Flying Aeronca Chief 11AC N86203
1130 hrs Flying 46 Piper J-3 Cub N6841H
RV-12 E-LSA #120058 AWC July 2012 N633CM
RV-12 Bought Flying Oct 2015 with 48TT - Hobbs now 522

LSRM-A Certificate 2016
Special Thanks... EJ Trucks - USN Crew Chief A-4 Skyhawk
MJ Stricker (Father & CFI) - USAAF 1st Lt. Captain B-17H
Reply With Quote
  #70
Old 09-24-2019, 11:40 AM
JwWright57 JwWright57 is offline

Join Date: Dec 2016
Location: Charlotte, NC
Posts: 138
Default

How about some pictures Jim?
__________________
-----------------------------------------
Jeff Wright, Charlotte NC
Rv-12 started!
Tail 99% done
Wings 99% done
12IS fuse kit 99% done
Finish kit is Here!! 2% done :-)
Dues paid 2020
Reply With Quote
