Default Exhaust clearance with bottom of fuselage

Hi guys and gals.

I have just installed the tailpipes on my O-320. I was hoping that I could get some advise on what kind of clearance I should have between the tailpipes and the bottom of the fuselage. I have included a link that shows the clearance - about 3/8".

__________________
"Pilots: Looking down on people since 1903"
(author unknown)
Robert Morrison RV-9
90% finished - 90% to go.
Mosquito XEL kit in hangar waiting on RV-9 to be flying.
Reply With Quote
  #2
Old 03-09-2017, 12:57 PM
JonJay's Avatar
JonJay JonJay is offline

Join Date: Jan 2007
Location: Battleground
Posts: 3,495
Default

You can start with that. Once you start your engine, things will move around a bit and you can make adjustments to your exhaust hangars then.
__________________
Smart People do Stupid things all the time. I know, I've seen me do'em.

RV6 - Builder/Flying
Bucker Jungmann
Fiat G.46 -(restoration in progress, if I have enough life left in me)
RV1 - Proud Pilot.
Reply With Quote
  #3
Old 03-09-2017, 01:09 PM
MarkW's Avatar
MarkW MarkW is offline

Join Date: Sep 2011
Location: Lake Mary, FL. KSFB
Posts: 958
Default

3/8" seems like it is close but in reality it works. Like everything else on the plane check it frequently during the first hours of operation bu I think you will find it is plenty. Well maybe not plenty but enough.
__________________
Mark
RV9 - N14MW - Flying
G3X - ECI Titan I0-320
Catto three blade prop
http://www.mykitlog.com/MarkW
Reply With Quote
  #4
Old 03-09-2017, 02:18 PM
jdiehl jdiehl is offline

Join Date: Jan 2011
Location: Williamsport, Pa
Posts: 145
Default Exhaust clearance

Looks about right. In your early flight hours, you'll likely have to tinker with it 'till it settles in. Early on, keep an eye on potential exhaust rub(contact) points, check the tightness of all of the clamps, flex joints, etc.

Jim Diehl 7A
Reply With Quote
  #5
Old 03-09-2017, 02:48 PM
Steve Melton's Avatar
Steve Melton Steve Melton is offline

Join Date: Apr 2011
Location: Cincinnati, OH
Posts: 1,180
Default

Quote:
Originally Posted by jdiehl View Post
Looks about right. In your early flight hours, you'll likely have to tinker with it 'till it settles in. Early on, keep an eye on potential exhaust rub(contact) points, check the tightness of all of the clamps, flex joints, etc.

Jim Diehl 7A

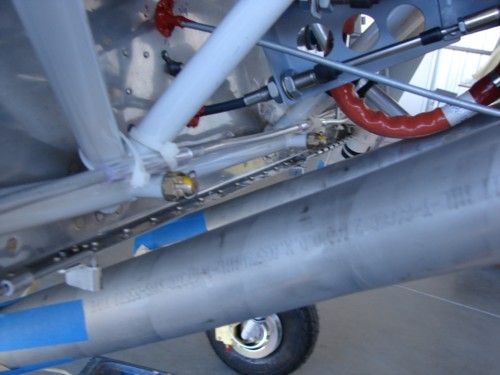

ditto. these have been hanging untouched for 500+ hrs. you can see a slight paint chip on the RHS above the exhaust. not sure how I got that. I put a small flare on the ends of the hanger rods that fit in to the hose and then clamped.



__________________
Steve Melton
Cincinnati, OH
RV-9A, Tip-up, Superior O-320, roller lifters, 160HP, WW 200RV, dual impulse slick mags, oil pressure = 65 psi, EGT = 1300F, flight hours = 500+ for all

Simplicity is the art in design.

Last edited by Steve Melton : 03-09-2017 at 02:50 PM.
Reply With Quote
  #6
Old 03-09-2017, 06:58 PM
vetterman vetterman is offline

Join Date: Oct 2006
Location: TX
Posts: 16
Default Exhaust clearance

In looking at your picture, you need to rotate your pipes for more turndown, minimum of 25 degrees to bottom skin. Steve Melrons picture should give you a good reference as they are correct. Also the distance at the top is too close about 3/4 inch as they will tend to ride up at cruise.
