Default How did you do that? ( Tight Space Rivet)

I seem to be running to to a few areas that need some special attention to complete. The latest spot is the rivet closest to the trailing edge at the top of the rudder. The plans call for a MK-319-BS pop rivet to be put in place.

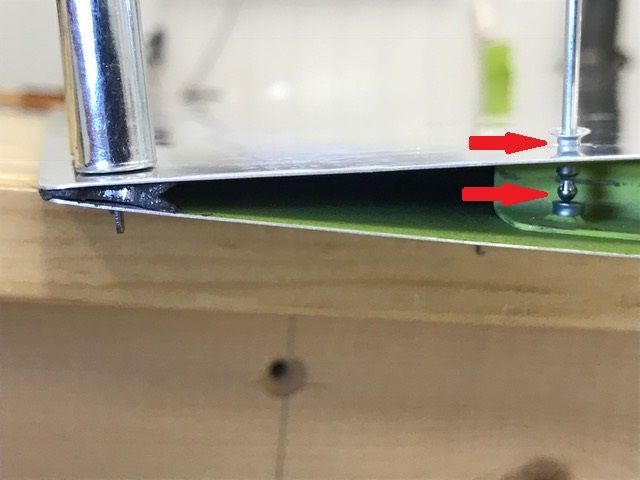

As you can see from the pictures below, there appears to be no room to get the second one in due to the lack of room. What's baffling to me as in searching this site, it looks like that I'm the only one having trouble with this spot. This makes me believe that I've done something in the wrong order or.....I'm just plain stupid. Both are distinct possibilities!!

The pictures below depict the problem. I expected to have a problem with the last rivet on the bottom side, but this one surprised me.

Thoughts?

Thanks,

Fred



__________________
Dues Paid for 2017
RV-14
Setting up shop
Working on Empennage
Reply With Quote
  #2
Old 03-04-2017, 06:02 AM
rzbill's Avatar
rzbill rzbill is offline

Join Date: Nov 2005
Location: Asheville, NC
Posts: 2,387
Default

Very slowly pull the rivet. As it gets shorter, keep pushing the flush head into position. It will come out fine.
__________________
Bill Pendergrass
RV-7A: Flying since April 15, 2012. 550hrs
YIO-360-M1B, mags, CS, GRT H1s & A/P, Navworx
Unpainted, polished....kinda'
My RV Construction Page
Reply With Quote
  #3
Old 03-04-2017, 06:37 AM
Tom023 Tom023 is offline

Join Date: Jul 2011
Location: Cypress, TX
Posts: 168
Default

Not that it solves your problem but on my build the bottom rivet causing the interference is a solid rivet and sits lower giving a tiny bit more room for the pulled rivet. That's probably why I didn't seem to notice the clearance issue. As Bill said you will be fine.
__________________
RV14A #83
Wings, empennage and fuselage completed
Finish kit in progress

Last edited by Tom023 : 03-04-2017 at 06:39 AM.
Reply With Quote
  #4
Old 03-04-2017, 07:34 AM
Reflex Reflex is offline

Join Date: Jan 2015
Location: Baldwin City, Kansas
Posts: 58
Default

Quote:
Not that it solves your problem but on my build the bottom rivet causing the interference is a solid rivet and sits lower giving a tiny bit more room for the pulled rivet. That's probably why I didn't seem to notice the clearance issue. As Bill said you will be fine.
Yup, after getting everything in place, I realized that I could have indirectly driven a solid rivet on one side giving me a bit more room. Too late now as the plans state that the hole in the R-903 rib should be drilled out to #33 before installation. Now to big for a -3 solid rivet. Hate to go to an oops rivet as it means drilling again and taking another step toward creating a "point of no return" mess by drilling a larger hole.

Fred
__________________
Dues Paid for 2017
RV-14
Setting up shop
Working on Empennage
Reply With Quote
  #5
Old 03-04-2017, 02:18 PM
PilotjohnS PilotjohnS is offline

Join Date: Jan 2016
Location: Los Angeles
Posts: 264
Default Mandrel

In the picture it looks like the mandrel is too far down. Maybe if you pull the mandrel back into the rivet it would seat better before you start squeezing.
__________________
Thank you
John S

WARNING! Information presented in this post is my opinion. All users of info have sole responsibility for determining accuracy or suitability for thier use.

Extra dues paid 2017, worth every penny

RV9A- Status: tail feathers done less tips
Wings 50%
www.pilotjohnsrv9.blogspot.com
Reply With Quote
  #6
Old 03-06-2017, 08:41 AM
RVbySDI's Avatar
RVbySDI RVbySDI is offline

Join Date: May 2005
Location: Tuttle, Oklahoma
Posts: 2,310
Default

Have you considered drilling out that driven rivet below that is holding things off? Then pull the top rivet. Then buck the lower one again.

Not sure about the order of riveting called for, or that was done, but it seems to me had you started at this tight end first and worked your way toward the more accessible rivets you could have had more room to get to these rivets in this section while the skins were still unattached down the line.

Just thoughts from an armchair quarterback.
__________________
RVBYSDI
Steve
RV9A
Live Long And Prosper!
Reply With Quote
  #7
Old 03-06-2017, 08:44 AM
ppilotmike's Avatar
ppilotmike ppilotmike is offline

Join Date: Jan 2010
Location: Denver, CO
Posts: 1,657
Default

Solid rivet on one side, squeezed to the max that tolerance will allow, to get it pretty flat (no hole yoke helps here), then ease in a pop rivet on the other side.
__________________
Mike Rettig
EAA Chapter 301, President www.eaa301.org
VAF Dues Current: as of 01/13/17
RV-10 (41PX Reserved) Fuselage
F-14 (Pedal Plane - Daughter's Project) "Flying"
http://www.mykitlog.com/mikrettig
Reply With Quote
