Default Section 40a: attaching Upper Gear Brace

Has anyone had issues trying to get the three AN6 bolts through the Upper gear brace and through the wing spar?

I can get one bolt through, but then the others don't fit.

Any help would be appreciated.

ken
__________________
Ken Stockman
Midland, MI
EAA Chapter 1093 member


RV-14 (serial number 140073)
N73XP (at least that # reserved now)
Reply With Quote
  #2
Old 09-19-2018, 02:19 PM
mturnerb mturnerb is offline

Join Date: Apr 2015
Location: Ponte Vedra, FL
Posts: 770
Default

Just did this - no issues except I had to remove primer from inside the holes in the brace after priming since the holes are very close tolerance.

Are you sure you did the reaming steps in section 25-06 for these holes? If that didn't get done, might be your problem.
__________________
Turner Billingsley
RV-14A In Progress
N14VB Reserved
https://turnerb14a.blogspot.com/

Last edited by mturnerb : 09-19-2018 at 02:22 PM.
Reply With Quote
  #3
Old 09-19-2018, 02:48 PM
Stockmanreef Stockmanreef is offline

Join Date: Nov 2012
Location: Midland, mi
Posts: 601
Default

No I figured out issue. The top edge of the rib was acting like a pivot. A bit of filing and I was able to get one side in. I have to go back out and do the other side.

It took about 10 minutes to file down enough to fix the issue.

I have a feeling that torquing down the AN3 bolts might be entertaining.
__________________
Ken Stockman
Midland, MI
EAA Chapter 1093 member


RV-14 (serial number 140073)
N73XP (at least that # reserved now)
Reply With Quote
  #4
Old 09-19-2018, 02:58 PM
RV-14E's Avatar
RV-14E RV-14E is offline

Join Date: Jun 2018
Location: Colorado
Posts: 154
Default

Quote:
Originally Posted by Stockmanreef View Post
Has anyone had issues trying to get the three AN6 bolts through the Upper gear brace and through the wing spar?

I can get one bolt through, but then the others don't fit.

Any help would be appreciated.

ken
I outline on my blog some of the things I learned from attaching the gear legs. A few things to consider
  • Did you ream the holes as directed in Step 1 on page 25-06?
  • Make sure the bolts can pass through the holes prior to placement of the parts (just to make sure the diameters are correct - and this may not be practical for you if you already have the legs in place). A gauge pin might be helpful if you're worried about marring your bolts.
  • Lubricate the shaft of the bolts prior to introduction. Be sure to clean threads prior to subsequent introduction of the nuts.
  • Try a different sequence of attaching all the bolts associated with the gear braces. It could help things line up better. I recall that the sequence I used was not the same as in the plans.

Just one clarification, you mean bulkhead, rather than wing spar
__________________
E
http://rv-14a.blogspot.com/
Reply With Quote
  #5
Old 09-19-2018, 04:10 PM
Stockmanreef Stockmanreef is offline

Join Date: Nov 2012
Location: Midland, mi
Posts: 601
Default

yes, I meant bulkhead. As I stated above, it was just a teeter totter effect. After filing down the top edge of the rib that the gear brace was touching, the part went in fine.

All the holes had been reamed or at least the bolts slid through without an issue prior to putting the part in place.

Thanks
ken
__________________
Ken Stockman
Midland, MI
EAA Chapter 1093 member


RV-14 (serial number 140073)
N73XP (at least that # reserved now)
Reply With Quote
  #6
Old 09-19-2018, 04:19 PM
RV-14E's Avatar
RV-14E RV-14E is offline

Join Date: Jun 2018
Location: Colorado
Posts: 154
Default

Quote:
Originally Posted by Stockmanreef View Post
yes, I meant bulkhead. As I stated above, it was just a teeter totter effect. After filing down the top edge of the rib that the gear brace was touching, the part went in fine.

All the holes had been reamed or at least the bolts slid through without an issue prior to putting the part in place.

Thanks
ken
Glad to hear it's resolved! I was busy composing my post when you had posted yours.

Build on.
__________________
E
http://rv-14a.blogspot.com/
Reply With Quote
  #7
Old 09-19-2018, 04:52 PM
mturnerb mturnerb is offline

Join Date: Apr 2015
Location: Ponte Vedra, FL
Posts: 770
Default

Quote:
Originally Posted by Stockmanreef View Post
No I figured out issue. The top edge of the rib was acting like a pivot. A bit of filing and I was able to get one side in. I have to go back out and do the other side.

It took about 10 minutes to file down enough to fix the issue.

I have a feeling that torquing down the AN3 bolts might be entertaining.
There was a printed sheet in my finishing kit with instructions for filing it - forgot about it until you mentioned it.

I found the AN3's easy to torque - reach in with torque wrench between the spar sections. What was hard was the two bolts through the lower brace - space there is very tight.
__________________
Turner Billingsley
RV-14A In Progress
N14VB Reserved
https://turnerb14a.blogspot.com/
Reply With Quote
  #8
Old 09-19-2018, 04:59 PM
Bavafa Bavafa is offline

Join Date: Oct 2007
Location: Sacramento, CA
Posts: 2,508
Default

Quote:
Originally Posted by RV-14E View Post
I outline on my blog some of the things I learned from attaching the gear legs. A few things to consider
  • Did you ream the holes as directed in Step 1 on page 25-06?
  • Make sure the bolts can pass through the holes prior to placement of the parts (just to make sure the diameters are correct - and this may not be practical for you if you already have the legs in place). A gauge pin might be helpful if you're worried about marring your bolts.
  • Lubricate the shaft of the bolts prior to introduction. Be sure to clean threads prior to subsequent introduction of the nuts.
  • Try a different sequence of attaching all the bolts associated with the gear braces. It could help things line up better. I recall that the sequence I used was not the same as in the plans.

Just one clarification, you mean bulkhead, rather than wing spar
Sorry if this is a drift on your subject and please feel free to remove if you need to.

@E.
Did you find the wing bolt installation pretty hard or did you do anything to ease up the big bolts insertion in?
I know we have more room than RV6/7/9 but those are really tight and hard to fully insert without freezing them or other methods.
__________________
Mehrdad
N825SM RV7A - IO360M1B - SOLD
N825MS RV14A - IO390 - Phase one
Dues paid
Reply With Quote
  #9
Old 09-19-2018, 05:31 PM
RV-14E's Avatar
RV-14E RV-14E is offline

Join Date: Jun 2018
Location: Colorado
Posts: 154
Default

Quote:
Originally Posted by Bavafa View Post
Sorry if this is a drift on your subject and please feel free to remove if you need to.

@E.
Did you find the wing bolt installation pretty hard or did you do anything to ease up the big bolts insertion in?
I know we have more room than RV6/7/9 but those are really tight and hard to fully insert without freezing them or other methods.
Definitely thread drift

Wing attach bolts were super easy. They all slid in real nice with gentle tapping. Per plans, just Boelube on the bolts (clean threads before introducing nuts). No freezing of bolts or anything special was done. Start-to-finish, both wings were on and torqued down in 40 minutes.

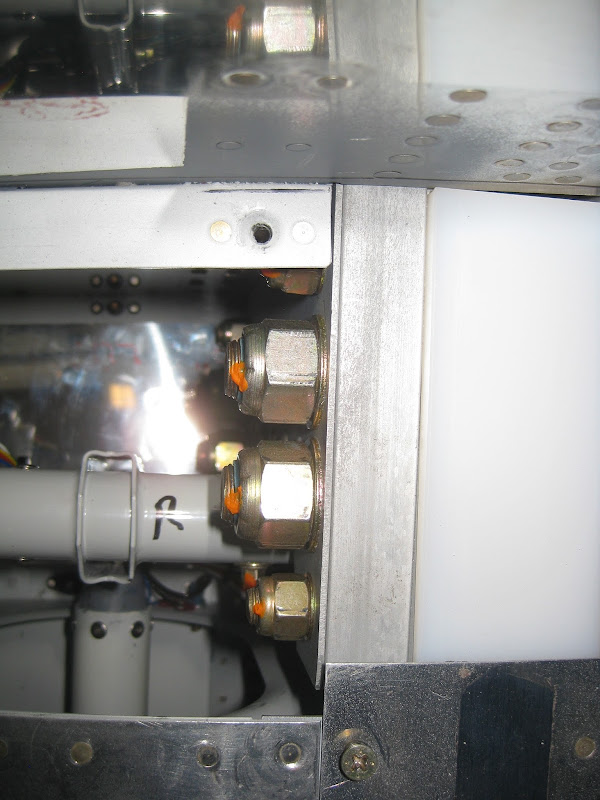

The web on the F-01404 Aft Center Section Bulkhead did this on me...



The nut brought it back down. This happened to another builder recently too. Keep an eye out for it so you can mitigate it immediately.

__________________
E
http://rv-14a.blogspot.com/
Reply With Quote
  #10
Old 09-19-2018, 06:33 PM
Stockmanreef Stockmanreef is offline

Join Date: Nov 2012
Location: Midland, mi
Posts: 601
Default

Drift is fine for this thread.
