Default Fuselage Build Trolley

When we built our 8, we had a low wooden trolley on castors to support the QB fuselage so I could work 'into' it early on.

Anyone done one for a 10 as the forward body gets assembled ?

If so, got any snaps please ?
__________________
"I add a little excitement, a little spice to your lives, and all you do is complain!" - Q

Donated in 2019
Reply With Quote
  #2
Old 03-23-2020, 10:43 AM
Mike S's Avatar
Mike S Mike S is offline
Senior Curmudgeon

Join Date: Sep 2005
Location: Dayton Airpark, NV A34
Posts: 14,981
Default

Show Planes had one when they did the 10.

There used to be photos of it on their website while the build was going on. Cant find the photos now------but maybe an email would get them sent to you??

As I recall, it was a rectangular frame with adjustable height risers that picked up the spars, and the step sockets. Casters to make it roll around easy.
__________________
Mike Starkey
VAF 909

Rv-10, N210LM.

Flying as of 12/4/2010

Phase 1 done, 2/4/2011

Sold after 240+ wonderful hours of flight.

"Flying the airplane is more important than radioing your plight to a person on the ground incapable of understanding or doing anything about it."
Reply With Quote
  #3
Old 03-23-2020, 10:49 AM
Kyle Boatright Kyle Boatright is offline

Join Date: Aug 2005
Location: Atlanta, GA
Posts: 3,997
Default

I made a wooden one like Mike described. I used blocks on the trolley rails to level it fore and aft. The fuselage was supported on the spar stubs and on the ends of a pipe inserted through the sockets for the steps.
__________________
Kyle Boatright
Atlanta, GA
2001 RV-6 N46KB
2019(?) RV-10
Reply With Quote
  #4
Old 03-23-2020, 11:14 AM
Zuldarin's Avatar
Zuldarin Zuldarin is offline

Join Date: Mar 2013
Location: Snoqualmie, wa
Posts: 369
Default

Here is the one I have been using. If you make one just be sure you have access to insert the gear legs such that it doesn't require cutting the stand apart to get it out. :-)

I padded the front and rear crossbars before I lowered the fuse onto the cart.

__________________
Darin
Snoqualmie WA
RV-9A Flying as of 03/2015
RV-10 Building - Finishing Kit
www.DarinAnderson.com
2020 donation sent!
Reply With Quote
  #5
Old 03-23-2020, 12:29 PM
mike newall's Avatar
mike newall mike newall is offline

Join Date: Jan 2005
Location: Yorkshire, England
Posts: 1,878
Default

Spot on Chaps !


Thanks
__________________
"I add a little excitement, a little spice to your lives, and all you do is complain!" - Q

Donated in 2019
Reply With Quote
  #6
Old 03-23-2020, 06:56 PM
Richard Connell Richard Connell is offline

Join Date: Aug 2006
Location: Sydney Australia
Posts: 188
Default

another example

__________________
Richard
RV7 VH-XRC Sold :-(
RV10 in progress.
Sydney, AUS
Reply With Quote
  #7
Old 03-24-2020, 04:38 AM
cderk cderk is offline

Join Date: Sep 2015
Location: Park Ridge, NJ
Posts: 463
Default

I made one just like the one Tim Olson made, and it worked out great. Keeps the plane low enough that i was able to climb in and out without needing a ladder

https://www.myrv10.com/tips/workarea.html
__________________
RV10 - #41673 ready for inspection!
http://n688cd.wordpress.com
Reply With Quote
  #8
Old 03-24-2020, 06:47 AM
leok leok is offline

Join Date: Apr 2013
Location: Clarkston, MI
Posts: 299
Default A different solution

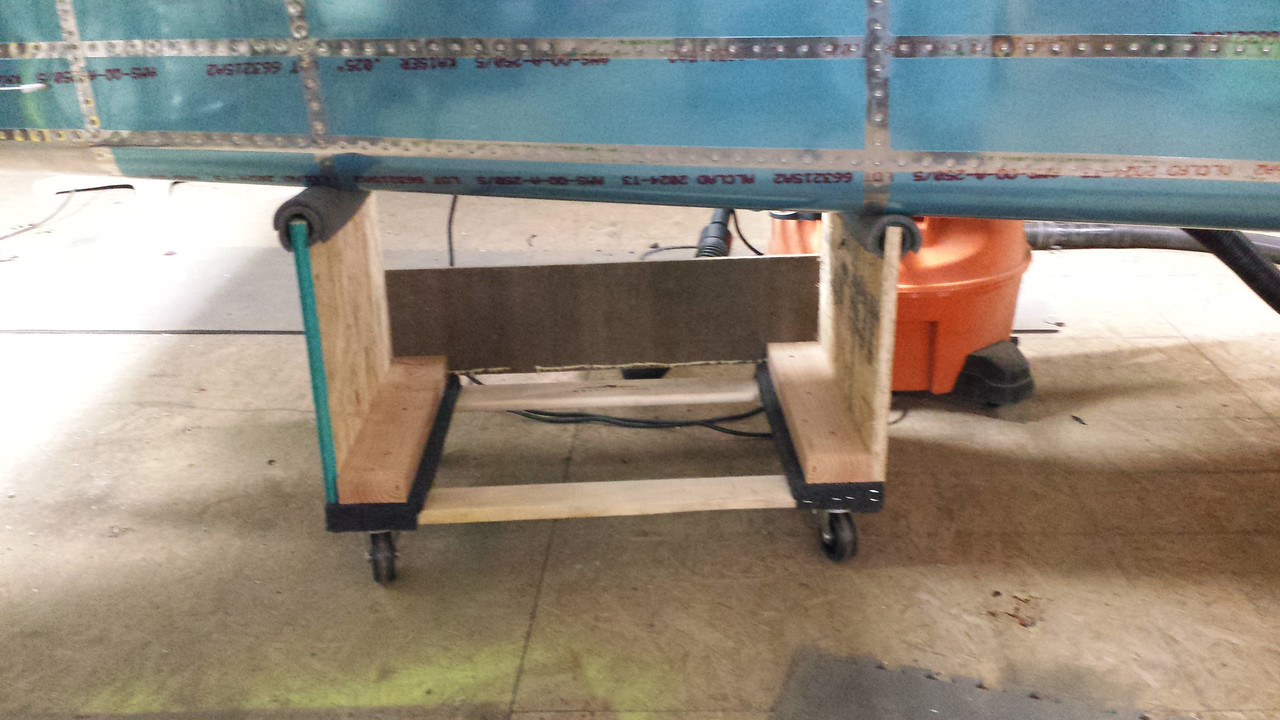

I made a short set of 'legs' for mine with a castor on the bottom. Bolted on with hardware store bolts (that I also used for the initial wing fit up).

[IMG][/IMG]

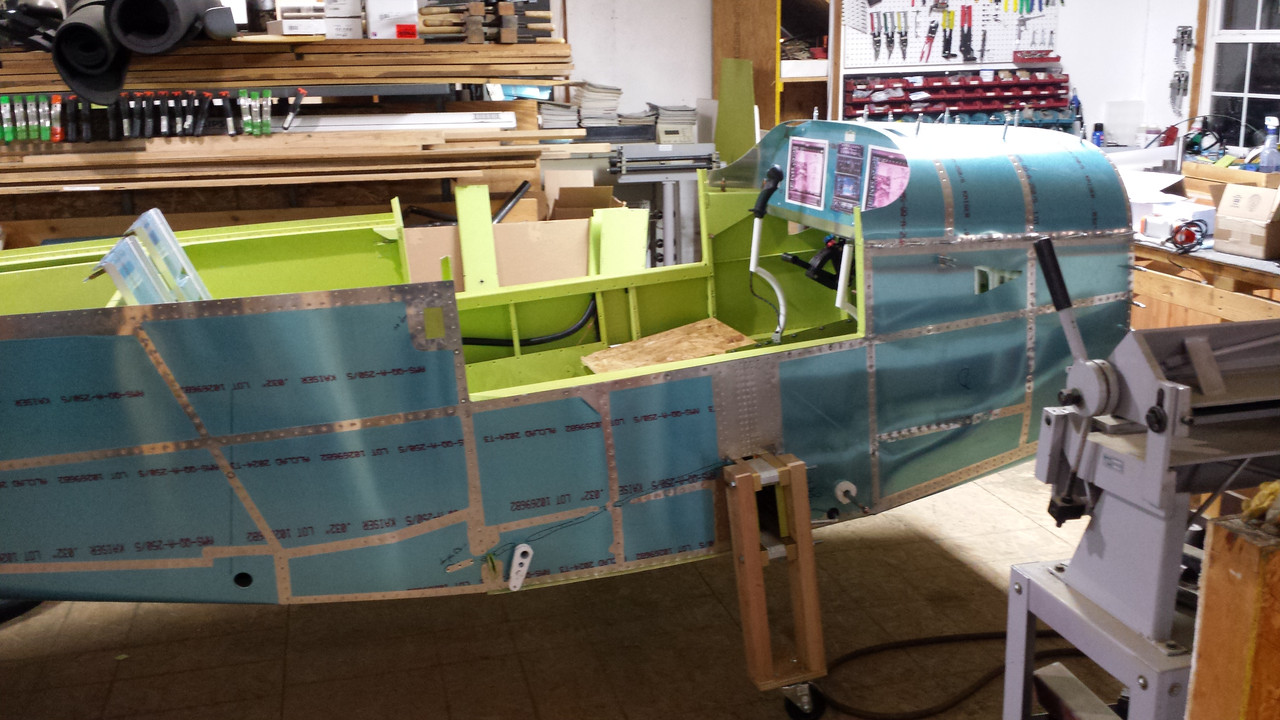

I made up a small sled for the rear of the fuselage. Notice the spacing of the two supports is right under a bulkhead

[IMG][/IMG]
__________________
Building started Oct 5th 2014, Flying since 1/16/2020
http://www.mykitlog.com/leok
RV Hotel, come by and visit if you're in town
Dues paid 2020
Reply With Quote
  #9
Old 03-24-2020, 07:08 AM
rvanstory's Avatar
rvanstory rvanstory is offline

Join Date: Dec 2016
Location: New Braunfels
Posts: 210
Default

Built my dolly from wooden saw horses from Lowes and furniture dollies from Harbor Freight.



__________________
Randy Vanstory
Building RV10
N783V - Reserved
Flying Mooney M20J
Tail Cone, Wings, Cabin top, Doors, Windows done. Engine hung, Prop & Spinner installed, Cowling fitted, Wheel Pants and Gear Leg Fairings done, Avionics delivered but waiting to be installed, Seats are being upholstered..... Itís beginning to feel like a plane.
Donation Happily Made 2020
Reply With Quote
  #10
Old 03-24-2020, 07:20 PM
wjb's Avatar
wjb wjb is offline

Join Date: Nov 2012
Location: Half Moon Bay, CA
Posts: 946
Default

I built two. The first is a VAF published design, relatively easy to find





This second one is a bit lower and worked very well. Solid and stable, and a good hight to lean over the rails and work with both feet on the ground.

Hacked it together with some Van's crate leftovers and some 2x4's. The under area made for very convenient storage location for cabin panels, seat backs, etc.



It's a bit surprising how much wood I used given that it's an all aluminum airplane
__________________
Bill Bencze
N430WB RV-7 #74152, tip-up; IO-360; CS. Pushing toward first flight in 2020!

Log at: http://rv7.wbencze.com
Defeating gravity one rivet at a time
VAF 2020 donation happily made

Last edited by wjb : 03-24-2020 at 07:28 PM.
