  #21
Old 08-14-2018, 08:18 PM
Dustyone Dustyone is offline

Join Date: Oct 2012
Location: Brisbane,Austalia
Posts: 128
Default

Carl were they the later large rings or the earlier small rings?

Would you mind sharing what size yours are.

Cheers,
__________________
Ashley Miller
RV-10 #40597
Dual SDS CPI
http://www.vansairforce.com/communit...d.php?t=140051
Airflow Systems Air-Con
http://www.vansairforce.com/communit...4&postcount=15
VH-XTE 500hrs +
Redcliffe,Brisbane
Australia
Photos : https://goo.gl/photos/zsfBeVofHMe4ze7i7
Reply With Quote
  #22
Old 08-15-2018, 01:57 AM
Janekom's Avatar
Janekom Janekom is offline

Join Date: Jan 2006
Location: South Africa
Posts: 731
Default

@ Dan - sitting halfway around the world is not easy. Shipping is way too expensive to get from SA to you guys in USA.
__________________
Jan Hanekom
South Africa
AP 325, AMO 1256
http://www.rvbits.com
RV10 - ZU-XOX - (Fuselage)
RV7A - ZU-JRV - (Flying)
RV10 - ZU-JVR - (Written off)
RV7 - ZU-LOL - (Flying)
RV10 - ZU-RVI - (Flying)
RV7A - ZU-MER (Sold Flying)
RV7A - ZU-JAD (Sold Flying)
Dues paid for 2018
Reply With Quote
  #23
Old 08-15-2018, 07:11 AM
DanH's Avatar
DanH DanH is offline

Join Date: Oct 2005
Location: 08A
Posts: 7,921
Default

Quote:
Originally Posted by Dustyone View Post
Dan,The cowl inlets on the RV-10 have reverse airflow at the blade root. I have observed this on my own aircraft where my first baffle rubbers would actually lift backwards into the A/C serpentine belt.
So any transition for the plenum would need to address this problem.
The simplest is adding round inlets as far outboard on the cowl and slightly higher than centre as recommended by Sonja Englert (Cessna TTX engineer )
I am not afraid of tackling the cowl and transitions and realize that this is only part of the equation to reducing cooling drag.
Sounds familiar.





Quote:
So my question would be,what size inlet rings ?
We know the first Sam James rings were to small,and I do plan to throttle the exit later in the project,so do I just start with 6” rings and work from there?
There is no "perfect" size; any size covers an operating range. All the data says low Vi/Vo is superior, so when in doubt, go larger. Experimentally, six inches diameter seems to work well with the 390 and 540. The external diffusion (pressure rise in front of the inlet) is frictionless. The practical limit seems to be set by external drag, i.e. flow separation as the excess air flows from in front of the inlet, to outward and around the inlet....something like this:



The aero guys call it spillage, although I think that creates a mental picture of air entering the inlet, reversing, and somehow flowing back out again. Whatever it's called, the cowl needs to be well rounded in the region surrounding the inlet, and as the inlet moves further outboard, further upward, or grows in diameter, there is less and less real estate within the frontal area envelope for shapely external curvature.

For external shape I look at the best radial engine cowls. In a previous thread, Steve Smith suggested looking at good fanjet inlets. I have no idea if this is optimal:

__________________
Dan Horton
RV-8 SS
Barrett IO-390

Last edited by DanH : 08-15-2018 at 07:15 AM.
Reply With Quote
  #24
Old 08-15-2018, 08:32 AM
Carl Froehlich's Avatar
Carl Froehlich Carl Froehlich is offline

Join Date: Dec 2007
Location: Dogwood Airpark (VA42)
Posts: 1,730
Default

Quote:
Originally Posted by Dustyone View Post
Carl were they the later large rings or the earlier small rings?

Would you mind sharing what size yours are.

Cheers,

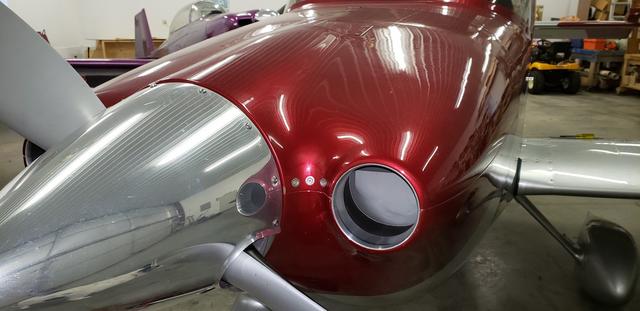

These rings measure about 4 3/4” ID, but James list them at 4 5/8” ID. Here is the link: http://www.jamesaircraft.com/?page_id=11

Note the 14” spinner. While I understand Van’s desire to standardize across kits, the stock 13” spinner is, in my opinion, out of proportion on an RV-10.

Carl
Reply With Quote
  #25
Old 08-15-2018, 09:38 AM
Dustyone Dustyone is offline

Join Date: Oct 2012
Location: Brisbane,Austalia
Posts: 128
Default

Hi Carl,

Well done for getting the James set up to work correctly with the small inlets.
All the reports I had read mentioned that with the small inlets they had had to except higher CHT's than they would of liked.
In the end,it was only after fitting the 6" rings that there problems were solved.
They also mentioned having to run Turbo Rail Injectors for stable LOP operation because of the higher Vi of the smaller inlets.

It does look good with the 14" spinner
__________________
Ashley Miller
RV-10 #40597
Dual SDS CPI
http://www.vansairforce.com/communit...d.php?t=140051
Airflow Systems Air-Con
http://www.vansairforce.com/communit...4&postcount=15
VH-XTE 500hrs +
Redcliffe,Brisbane
Australia
Photos : https://goo.gl/photos/zsfBeVofHMe4ze7i7
Reply With Quote
  #26
Old 08-15-2018, 09:49 AM
Dustyone Dustyone is offline

Join Date: Oct 2012
Location: Brisbane,Austalia
Posts: 128
Default Challenge accepted !

Hi Dan,

Looks like me and the " Dremmel " are going to be getting back together again!

So before I contact James Aircraft for a set of 6" rings,does anyone have a set lying around they would part with?
I am in Calgary for another two weeks.

Dan, you mentioned a while back about a 2 channel digital Manometer. I have found several expensive ones,but I remember yours was well priced ?
Can you supply the link ?

Also, how close to the prop can the intakes go ? I have read that 1/2" clearance is the go ?

Thank you to all that contribute to this amazing hobby !
__________________
Ashley Miller
RV-10 #40597
Dual SDS CPI
http://www.vansairforce.com/communit...d.php?t=140051
Airflow Systems Air-Con
http://www.vansairforce.com/communit...4&postcount=15
VH-XTE 500hrs +
Redcliffe,Brisbane
Australia
Photos : https://goo.gl/photos/zsfBeVofHMe4ze7i7
Reply With Quote
  #27
Old 08-15-2018, 10:07 AM
Carl Froehlich's Avatar
Carl Froehlich Carl Froehlich is offline

Join Date: Dec 2007
Location: Dogwood Airpark (VA42)
Posts: 1,730
Default

Quote:
Originally Posted by Dustyone View Post
Hi Carl,

Well done for getting the James set up to work correctly with the small inlets.
All the reports I had read mentioned that with the small inlets they had had to except higher CHT's than they would of liked.
In the end,it was only after fitting the 6" rings that there problems were solved.
They also mentioned having to run Turbo Rail Injectors for stable LOP operation because of the higher Vi of the smaller inlets.

It does look good with the 14" spinner
Have no clue on such reports. I run LOP 95% of the time. Cruise is 170+kts at 9.5-11.5 GPH depending on altitude. CHTs in cruise are below 380. I run a standard Van’s IO-540 but replaced 4 injector nozzles to get the GAMI spread down to 0.1GPH. At $26 a nozzle this is the cheapest thing you can do to make your engine a better performer.

Perhaps your reports are about an RV-10 with some fire breathing engine - or other issues.

There is no free lunch. A plenum enables you to get the most cooling for every pound mass of air coming in the engine. As such, you can reduce drag by reducing engine cooling air coming in. While the inlet rings have a roll in this, remember the cowl outlet is a big player. I did install louvers on the bottom of the cowl (not the Van’s stufff) to add some additional cooling.

Every element of my RV-10 was optimized for cruise efficiency. If you want an RV-10 to be a climb monster, installing a plenum no longer makes sense.

Carl
Reply With Quote
  #28
Old 08-15-2018, 01:02 PM
DanH's Avatar
DanH DanH is offline

Join Date: Oct 2005
Location: 08A
Posts: 7,921
Default

Ashley, you have air conditioning and a front governor? If I were you, I would take a real hard look at the Acclaim and TTx. Then I would think about how I might add glass structure inside the cowl for optimized flap sealing surfaces. I might even make some molded seals for perfect fit.
__________________
Dan Horton
RV-8 SS
Barrett IO-390

Last edited by DanH : 08-15-2018 at 01:16 PM.
Reply With Quote
  #29
Old 08-15-2018, 01:08 PM
DanH's Avatar
DanH DanH is offline

Join Date: Oct 2005
Location: 08A
Posts: 7,921
Default

Ashley,
Cheap mamometer is single channel, from eBay, about $35. Send an email and I'll send a white paper.

I don't remember how close the prop gets on mine.
__________________
Dan Horton
RV-8 SS
Barrett IO-390

Last edited by DanH : 08-15-2018 at 01:11 PM.
Reply With Quote
  #30
Old 08-15-2018, 01:50 PM
DanH's Avatar
DanH DanH is offline

Join Date: Oct 2005
Location: 08A
Posts: 7,921
Default

Quote:
Originally Posted by Carl Froehlich View Post
Every element of my RV-10 was optimized for cruise efficiency. If you want an RV-10 to be a climb monster, installing a plenum no longer makes sense.
A plenum lid is just a sealing device. The flight regime matters not at all; better sealing is always beneficial, regardless of how it is accomplished.

That said, better conversation of available dynamic pressure (largely an inlet function) and better sealing are most valuable in the low speed climb regime, where there isn't much dynamic pressure available, and power setting is high.
__________________
Dan Horton
RV-8 SS
Barrett IO-390
Reply With Quote
