Default I'm installing my own avionics - question

I've got a PS Engineering PM2000 intercom, a King KMA24 audio panel, a Garmin GNC355 gps/comm, and a Garmin SL60 gps/comm that I'm installing in the RV7 I'm building. All of the radios are used except for the GNC355. The intercom works fine between the pilot and copilot, PTT works, too. I can hear audio coming back through the audio panel and intercom from the gps/comm radios and it seems fine. The problem is that when I use the PTT, instead of my voice being transmitted I get a tone (200 hz, I'm guessing) and no intelligible voice. I suspect I have a wiring screw-up on the mic side, but am unsure where to look.

Any help is appreciated!
Reply With Quote
  #2
Old 03-09-2020, 01:12 PM
fl-mike's Avatar
fl-mike fl-mike is online now

Join Date: Jul 2005
Posts: 1,284
Default

Funny tone on one or both radios when PTT? (selected)
Assuming you have the correct radio selected for xmit on the KMA24, I'm going to guess that the audio out of the KMA24 to the radios is either on the wrong pin (at one or both ends), not connected, broken wire, or you have COMM 1 and 2 audio swapped.
Sounds like you are keying an open wire on the radio audio input.
__________________
Mike W
Venice, FL
RV-6A. Mattituck TMX O-360, FP, GRT Sport EFIS, L3 Lynx NGT-9000
N164WM
N184WM reserved (RV-8)....finishing kit in progress. Titan IOX-370

Last edited by fl-mike : 03-09-2020 at 05:14 PM. Reason: had the intercom and audio panel numbers reversed
Reply With Quote
  #3
Old 03-09-2020, 01:15 PM
jgbmo jgbmo is offline

Join Date: Jan 2016
Location: Higbee, MO
Posts: 61
Default

Both of the radios transmit the same way (with the tone and no voice). I wired them the same way into the audio panel, so I'm pretty sure I connected pins the wrong way at the audio panel--or from the mic side of the intercom to the audio panel. Things get a bit confusing since King, Garmin, and PS Engineering use slightly different terminology and logic in their wiring diagrams.
Reply With Quote
  #4
Old 03-09-2020, 02:08 PM
rocketbob's Avatar
rocketbob rocketbob is offline

Join Date: Jun 2006
Location: 8I3
Posts: 3,502
Default

Did you connect the transmit interlock lines between the two comm radios?
__________________

Please don't PM me! Email only!

Bob Japundza CFI A&PIA
N9187P PA-24-260B Comanche, flying
N678X F1 Rocket, under const.
N244BJ RV-6 "victim of SNF tornado" 1200+ hrs, rebuilding
N8155F C150 flying
N7925P PA-24-250 Comanche, restoring
Not a thing I own is stock.
Reply With Quote
  #5
Old 03-09-2020, 04:32 PM
jgbmo jgbmo is offline

Join Date: Jan 2016
Location: Higbee, MO
Posts: 61
Default

I'm afraid I don't know what "transmit interlock lines" are? Nothing related to a flux capacitor, I trust ;-)
Reply With Quote
  #6
Old 03-09-2020, 08:18 PM
fl-mike's Avatar
fl-mike fl-mike is online now

Join Date: Jul 2005
Posts: 1,284
Default

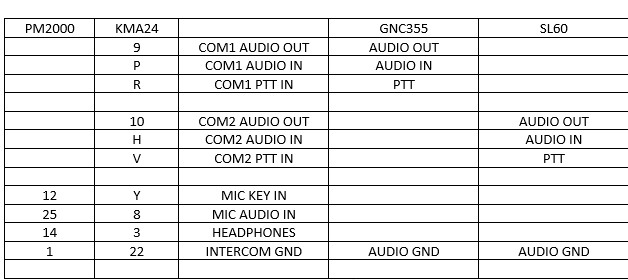

Based on install manuals I found on the web, I think this is the wiring between the audio for the intercom, audio panel, and radios. (does not include power, etc. Just the audio and PTT stuff)
See if this matches your wiring diagram or wire list.

oops, Add KMA24 pin "1" to the the intercom ground row. (KMA24 has a power ground, "speaker" ground, and and "everything else" ground.)
__________________
Mike W
Venice, FL
RV-6A. Mattituck TMX O-360, FP, GRT Sport EFIS, L3 Lynx NGT-9000
N164WM
N184WM reserved (RV-8)....finishing kit in progress. Titan IOX-370
Reply With Quote
  #7
Old 03-09-2020, 09:39 PM
BobTurner BobTurner is offline

Join Date: Dec 2011
Location: Livermore, CA
Posts: 6,423
Default

Quote:
Originally Posted by jgbmo View Post
I'm afraid I don't know what "transmit interlock lines" are? Nothing related to a flux capacitor, I trust ;-)
A transmit interlock is a wire from PTT for #1 to an interlock or mute input on #2, and vice versa. So if the antennas are close together you won’t get annoying feed thru on the radio not in use. To test if you need this, just turn off #2 and transmit on #1, see the the problem goes away. Not all radios have this input.
Reply With Quote
  #8
Old 03-09-2020, 10:39 PM
lr172 lr172 is offline

Join Date: Oct 2013
Location: Schaumburg, IL
Posts: 4,879
Default

Quote:
Originally Posted by fl-mike View Post
Based on install manuals I found on the web, I think this is the wiring between the audio for the intercom, audio panel, and radios. (does not include power, etc. Just the audio and PTT stuff)
See if this matches your wiring diagram or wire list.

oops, Add KMA24 pin "1" to the the intercom ground row. (KMA24 has a power ground, "speaker" ground, and and "everything else" ground.)
Sorry, but I know nothing about the KMA 24 and am surprised it has comm audio out and audio in.

From what I gahter from your chart, KMA audio out should go to Mic hi on the radios and audio in should go to the Phones hi pin on the radios. Need to be carefull here, as many radios have both headphone pins and speaker pins. You want the 600 ohm headphone pins. The radios may also have an audio in pin that is designed for high impedence sources such as stall or traffic warnings. Mic output (i.e. Audio Out) needs to go to a pin called mic or mic hi on the radio, not something called audio. At least for modern Garmin radios. This is possibly your problem.

You will need to review the KMA manual to understand what direction In and Out refer to, as I may have it backwards. I am guessing here on what they mean. I assumed they meant in or out of the KMA.

You;ll want to tie the two phone lo's together with the KMA other ground and tie the two mic lo's to the KMA other ground as well. Not really sure if this is the best config for the KMA. Maybe Bob Turner can give guidance on that. Again, I have no experience with the KMA so can't advice well on ground ties. Most modern audio panels tie all of the lo's on a common ground bus in the a/p.
__________________
N64LR - RV-6A / IO-320, Flying as of 8/2015
N11LR - RV-10, Flying as of 12/2019

Last edited by lr172 : 03-09-2020 at 11:16 PM.
Reply With Quote
  #9
Old 03-10-2020, 07:04 AM
jgbmo jgbmo is offline

Join Date: Jan 2016
Location: Higbee, MO
Posts: 61
Default

Thank you to all! I'm going to go through my wiring with the chart and info you all have provided to check after breakfast this morning. Regarding the interlock, I think the audio panel provides that functionality. Regardless, I get the tone even if only one radio is installed in its rack, so I doubt that's a problem--but I'll check it out.

Thank you all!
Reply With Quote
  #10
Old 03-10-2020, 09:54 AM
John Tierney John Tierney is offline

Join Date: Jan 2006
Location: Vonore, TN
Posts: 326
Default Headset Jacks

Also check that you PTT is correctly wired at your microphone jack for the headsets, grounding the tip to the barrel when pressed.

I found this PS Engineering presentation helpful, but I don't find it on the PS Engineering website any more:
https://slideplayer.com/slide/2364675/
