Default Too many dimples in F-01412A Bulkhead?

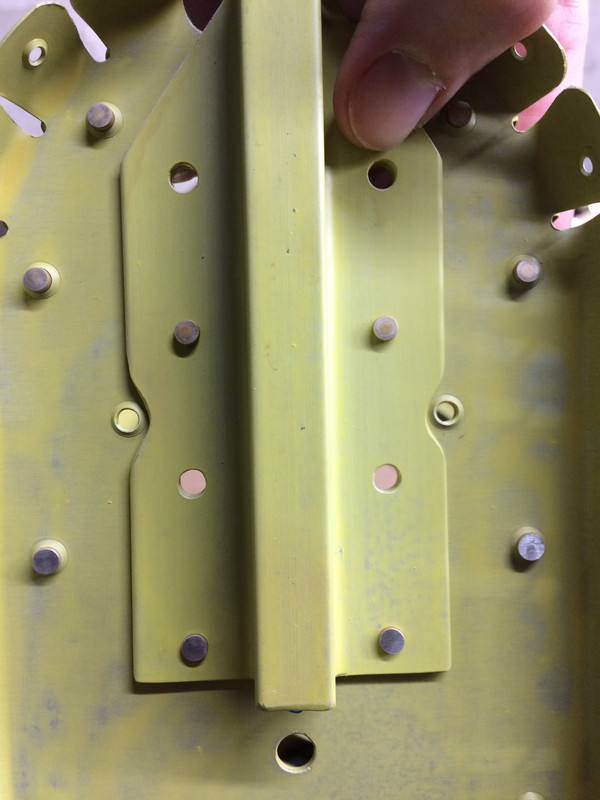

The plans page 10-07 step 1 called for dimpling the #30 holes in the web of the bulkhead except as indicated in the figure. There are two holes that I don't think should have been dimpled though. In the picture you can see the two dimples behind the edges of the tie-down bracket that is keeping it from laying flush to the bulkhead. Anyone else run into this? Can I just flatten those dimples out?

__________________
Ron Slosberg
Roswell, GA
RV-14A -- Wings

Build Log: https://ronslosberg.com
Reply With Quote
  #2
Old 01-12-2019, 06:54 PM
mturnerb mturnerb is offline

Join Date: Apr 2015
Location: Ponte Vedra, FL
Posts: 970
Default

I think I ended up "undimpling" those holes.....

I use a hand squeezer with two flat dies - don't recall if I called Vans on this one though. It's been more than two years
__________________
Turner Billingsley
RV-14A FLYING!!
https://turnerb14a.blogspot.com/

Last edited by mturnerb : 01-12-2019 at 06:57 PM.
Reply With Quote
  #3
Old 01-13-2019, 05:31 AM
mulde35d's Avatar
mulde35d mulde35d is offline

Join Date: Dec 2017
Location: Williamsburg, VA
Posts: 137
Default Dimples

Those two holes must be dimpled since you must have the flat portion on the backside in order to place the vertical stabilizer flat against this portion of the aft fuselage during assembly.

The solution is to mark the interference point on the tie-down and grind away the metal on the tie down bracket to allow for the dimpled skin. Just FYI, I am not the creator of this fix. Other threads have previously been posted on this topic with the solution.

Also, make sure you grind away enough metal to fit a flat squeezer edge in to squeeze the working end of the rivet

__________________
Jon
RV-14A - N122X (probably)
http://www.mykitlog.com/mulde35d
Empennage Complete
Wings in Progress
Research on-going

Last edited by mulde35d : 01-13-2019 at 05:53 AM.
Reply With Quote
  #4
Old 01-13-2019, 07:50 AM
Tom023 Tom023 is offline

Join Date: Jul 2011
Location: Cypress, TX
Posts: 289
Default

For the -A model nothing goes in the two holes in question. Page 10-6 figure 2 Rev 1 shows them to remain undimpled. Perhaps a few years back Rev 0 did not show the exclusion for these two holes, I wii check my plan notes in the hangar as I know I dimpled and then flattened them back flush.
__________________
RV14A #140083
AW certificate issued
2018 Donation+

Last edited by Tom023 : 01-13-2019 at 08:07 AM.
Reply With Quote
  #5
Old 01-13-2019, 08:37 AM
mulde35d's Avatar
mulde35d mulde35d is offline

Join Date: Dec 2017
Location: Williamsburg, VA
Posts: 137
Default Page mix up

I think you are mixing up the aircraft types with page numbers. The tail dragger (RV-14) is on page 10-06. The tri-gear (RV-14A) is on page 10-07. On page 10-08 figure 1 it clearly shows placing an AN426 rivet in those two holes for the tri-gear, which appears to be what Ron is building based upon his signature.
__________________
Jon
RV-14A - N122X (probably)
http://www.mykitlog.com/mulde35d
Empennage Complete
Wings in Progress
Research on-going
Reply With Quote
  #6
Old 01-13-2019, 09:53 AM
RonS RonS is offline

Join Date: Nov 2018
Location: Roswell, GA
Posts: 11
Default

Thanks for the responses, guys.

If you look at 10-08, there are no rivets called out for those two holes. I can't find anything further into the plans that calls for anything to go in those holes. So, I'm not sure I need to modify the tie-down bracket. Instead i'll likely "un-dimple" them as Turner suggests. I shot an email to Van's support. I'll let you know what they say.



Personally, I believe that this is an oversight in the plans but we'll see what Van's says. My page 10-07 is Rev 1. I just got my kit from Van's this past November (2018). So I'd be surprised if they didn't provide the latest rev.

__________________
Ron Slosberg
Roswell, GA
RV-14A -- Wings

Build Log: https://ronslosberg.com
Reply With Quote
  #7
Old 01-13-2019, 10:06 AM
Tom Martin Tom Martin is offline

Join Date: Jan 2005
Location: Ontario, Canada
Posts: 1,469
Default

The really shocking thing is that the tie down bracket is where the tail spring mount is supposed to go.........
__________________
Tom Martin RV1 pilot 4.6hours!
CPL & IFR rated
EVO F1 Rocket 1000 hours,
2010 SARL Rocket 100 race, average speed of 238.6 knots/274.6mph
RV4, RV7, RV10, two HRIIs and five F1 Rockets
RV14 Tail dragger

Fairlea Field
St.Thomas, Ontario Canada, CYQS
fairleafield@gmail.com
Reply With Quote
  #8
Old 01-13-2019, 10:24 AM
RonS RonS is offline

Join Date: Nov 2018
Location: Roswell, GA
Posts: 11
Default

What's a tail spring? ;-)

Actually... looking forward in the plans, these holes appear to get drilled out for AN6 bolts in the tail dragger version on Page 10-28. See Fig 2.
__________________
Ron Slosberg
Roswell, GA
RV-14A -- Wings

Build Log: https://ronslosberg.com
Reply With Quote
  #9
Old 01-13-2019, 10:44 AM
Tom023 Tom023 is offline

Join Date: Jul 2011
Location: Cypress, TX
Posts: 289
Default

Quote:
Originally Posted by mulde35d View Post
I think you are mixing up the aircraft types with page numbers. The tail dragger (RV-14) is on page 10-06. The tri-gear (RV-14A) is on page 10-07. On page 10-08 figure 1 it clearly shows placing an AN426 rivet in those two holes for the tri-gear, which appears to be what Ron is building based upon his signature.
Yes you are correct the A model is page 7. That must be why I dimpled them. However page 8 clearly shows no rivets go in those holes in either version.
__________________
RV14A #140083
AW certificate issued
2018 Donation+

Last edited by Tom023 : 01-13-2019 at 11:00 AM.
Reply With Quote
  #10
Old 01-13-2019, 11:01 AM
mulde35d's Avatar
mulde35d mulde35d is offline

Join Date: Dec 2017
Location: Williamsburg, VA
Posts: 137
Default

Quote:
Originally Posted by Tom023 View Post
Yes you are correct the A model is page 7. That must be why I dimpled them. However page 8 clearly shows no rivets go in those holes in either version.
Your right I misread it. Ah well, I put two rivets in them anyways.
__________________
Jon
RV-14A - N122X (probably)
http://www.mykitlog.com/mulde35d
Empennage Complete
Wings in Progress
Research on-going
Reply With Quote
