Question Delrin Aileron Stop

While doing research on fabricating the Van's aileron stop I came across info on making the Delrin stop. Looked great, simple, easy and adjustable!

So I ordered several diameters of Delrin stock...Others had used " stock but my gap looked pretty big. Using " stock I fabricated a stop with the aluminum bushing pressed into it.

The " stop isn't event close to touching the bracket?? Is there really that big of difference in hinge dimensions between projects? It looks like I will need at least a 1" stop.

Am I doing something wrong??

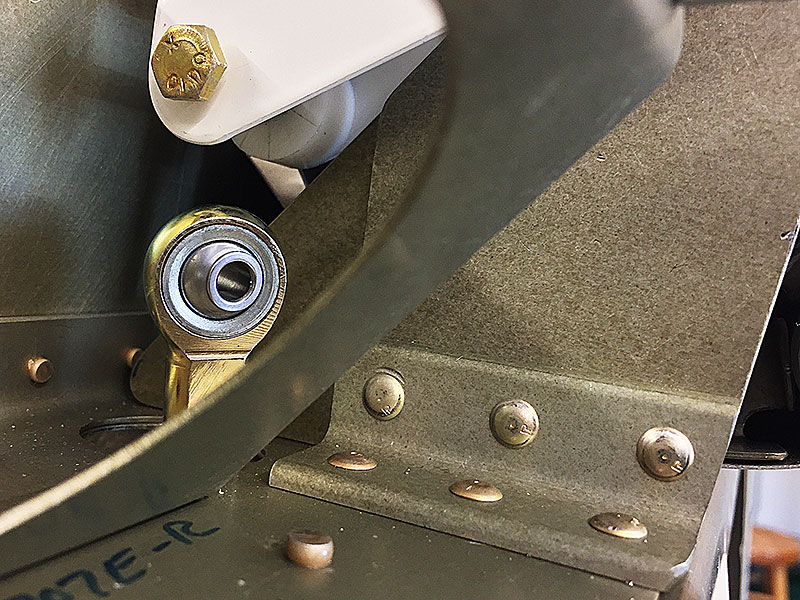

The gap is really more than this photo shows, because the aileron is resting against one of the hinge bolts on the outboard end.
__________________
Michael Fleming
Joseph, OR
sagriver at icloud dot com

RV-7 Slider #74572
Empennage (sans fiberglass), ailerons and flaps complete.
Working on wing and fuel tanks.
Donated 2017
Reply With Quote
  #2
Old 12-05-2017, 02:59 PM
jmjula's Avatar
jmjula jmjula is offline

Join Date: Oct 2005
Location: Portland, OR
Posts: 170
Default

I made mine using a hole saw in a sheet of delrin of the right width, then I "lathed" it to the perfect diameter using a cordless drill and the bench scotch-brite wheel. I don't remember exactly what diameter I ended up with, though visually looking at your pictures I believe mine are slightly bigger. That said, each side is a different diameter to get the deflections to match right and left, so I do know there is a variance.

EDIT: measured mine, they are both about 15/16" in diameter, and I have mid-range deflection to limit the sticks contact with the throttle and mixture
__________________
James Jula - CFI/II/MEI - N713JL RV-7A First Flight 10/12/15 - "What is chiefly needed is skill rather than machinery." Wilbur Wright, 1902

Last edited by jmjula : 12-08-2017 at 04:31 PM.
Reply With Quote
  #3
Old 12-05-2017, 04:50 PM
mfleming's Avatar
mfleming mfleming is offline

Join Date: Sep 2016
Location: Joseph, Oregon
Posts: 99
Default

Quote:
Originally Posted by jmjula View Post
I made mine using a hole saw in a sheet of delrin of the right width, then I "lathed" it to the perfect diameter using a cordless drill and the bench scotch-brite wheel. I don't remember exactly what diameter I ended up with, though visually looking at your pictures I believe mine are slightly bigger. That said, each side is a different diameter to get the deflections to match right and left, so I do know there is a variance.
Great tip...

I'm thinking I must have done something wrong because even a ⅞" delrin spacer would fall far short of stopping the aileron

With the aileron full up and no stop, I measure 32°...That doesn't seem right.
__________________
Michael Fleming
Joseph, OR
sagriver at icloud dot com

RV-7 Slider #74572
Empennage (sans fiberglass), ailerons and flaps complete.
Working on wing and fuel tanks.
Donated 2017

Last edited by mfleming : 12-05-2017 at 04:55 PM. Reason: Add content
Reply With Quote
  #4
Old 12-05-2017, 04:56 PM
Bruce's Avatar
Bruce Bruce is offline

Join Date: Feb 2006
Location: ADDISON,TX
Posts: 1,014
Default

Michael,

I used a -3 bolt and 2 big washers and then ground on wheel.
Can't remember the washer size but the 1" size sounds right.
You should have a stack of the washers in the kit.

You have to put on both sides.
Then you can get the right measurements.
Everything has to be hooked up.
__________________
Bruce (BOOMER) Pauley
Kathy (KAT) Pauley

RV 7A--"MISS MARIE"--- N177WD (SOLD FLYING)72742
VAF #582-----------------EAA LIFETIME MEMBER
EX -KC-135A -------------BOOM OPERATOR #3633
VAN'S FLIGHT------------#6930

See you in OSHKOSH


http://www.mykitlog.com/users/index....ley&project=84


2006-2017 DUES PAID

Last edited by Bruce : 12-05-2017 at 04:58 PM. Reason: Added more
Reply With Quote
  #5
Old 12-05-2017, 06:04 PM
BillL BillL is offline

Join Date: Sep 2007
Location: Central IL
Posts: 4,006
Default Just did this today

It seems I totally missed the stop and some friendly builders found the deficiency. I used some wax to measure and came up with .490" for left and .560" for the right. I would not venture to comment on what is right.

You might check Mike Bullocks website - rvplane.com to see what size he had.
__________________
Bill

Op Lims in hand 12-7-17
Prep for 1st flight underway.
Reply With Quote
  #6
Old 12-05-2017, 06:38 PM
mfleming's Avatar
mfleming mfleming is offline

Join Date: Sep 2016
Location: Joseph, Oregon
Posts: 99
Thumbs up

Quote:
Originally Posted by BillL View Post
It seems I totally missed the stop and some friendly builders found the deficiency. I used some wax to measure and came up with .490" for left and .560" for the right. I would not venture to comment on what is right.

You might check Mike Bullocks website - rvplane.com to see what size he had.
Very cool trick...

So the measurement of .490 for instance, was the distance needed to be bridged and the diameter of the stop would be roughly double that?
__________________
Michael Fleming
Joseph, OR
sagriver at icloud dot com

RV-7 Slider #74572
Empennage (sans fiberglass), ailerons and flaps complete.
Working on wing and fuel tanks.
Donated 2017
Reply With Quote
  #7
Old 12-06-2017, 06:00 AM
swisseagle's Avatar
swisseagle swisseagle is offline

Join Date: Feb 2005
Location: 20km outside of Zurich, Switzerland
Posts: 373
Default Take black Delrin

Take black Delrin, it is better regarding UV stability.

The black pigments are preventing the UV ray's to enter the material.
__________________
Dominik

RV-7A, TMX-IO-320, FM-150, Sensenich FP
Flying since 28. April 2016
Reply With Quote
  #8
Old 12-06-2017, 11:37 AM
bruceh's Avatar
bruceh bruceh is offline

Join Date: Mar 2008
Location: Ramona, CA
Posts: 1,968
Default

I think I used 7/8" diameter on the RV-9A.

I've still got a bunch of material left, so if anyone needs some.....

Good instructions on Smitty's site.
__________________
Bruce Hill
RV-9A N5771H flown over 500 hours!
http://www.overthehills.com/RV-9A-Project
APRS Tracking for KJ6YRP and New Flying Blog
2017 VAF donator
EAA Tech Counselor
Reply With Quote
  #9
Old 12-06-2017, 12:07 PM
PilotjohnS PilotjohnS is offline

Join Date: Jan 2016
Location: Los Angeles
Posts: 346
Default Deal

Bruce,
I will take some of that extra delrin.
Thanks
__________________
Thank you
John S

WARNING! Information presented in this post is my opinion. All users of info have sole responsibility for determining accuracy or suitability for thier use.

Extra dues paid 2017, worth every penny

RV9A- Status: tail feathers done less tips
Wings 50%
www.pilotjohnsrv9.blogspot.com
Reply With Quote
  #10
Old 12-07-2017, 06:32 PM
RV7A Flyer's Avatar
RV7A Flyer RV7A Flyer is offline

Join Date: Jul 2013
Location: US
Posts: 1,359
Default

Quote:
Originally Posted by mfleming View Post
Great tip...

I'm thinking I must have done something wrong because even a ⅞" delrin spacer would fall far short of stopping the aileron

With the aileron full up and no stop, I measure 32...That doesn't seem right.
Isn't that what the manual gives for Max Up deflection?

Design Travel in degrees Maximum Up/Down Minimum Up/Down
Aileron 32/17 25/15
