Default New builder critique

Hey everyone, Iím a new builder just looking to have someone critique my work. Right now I am getting the shop ready for a RV-7 Empennage build this winter. Iíve started the practice tool box kit to get a feel for my tools and riveting for the first time. I just have a few questions.

Am I using the rivet gauge correctly?
How are my dimples?
Do the Flush head of my rivets look ok?


https://www.flickr.com/gp/158887686@N05/17tgF5
Reply With Quote
  #2
Old 10-10-2017, 09:39 AM
bkervaski's Avatar
bkervaski bkervaski is online now

Join Date: Mar 2017
Location: Birmingham, Alabama
Posts: 449
Default

Strong work, you got this, order the emp.
__________________
#140376 RV-14A QB IO-390 Thunderbolt
Reserved: N196
Progress: Finishing Kit
Reply With Quote
  #3
Old 10-10-2017, 09:47 AM
BrianDC BrianDC is online now

Join Date: Mar 2016
Location: Northern VA
Posts: 70
Default

From the photos, I'm not seeing anything wrong.

Now drill out all those rivets and do it again! (only halfway kidding!)

Seriously, go ahead and order the kit. If you enjoyed the practice kit, building the real thing is even better.
__________________
Brian Lester
RV10 - #41778
Empennage - Done (for now)
Wings - on-order
RV10builder.com
Reply With Quote
  #4
Old 10-10-2017, 10:12 AM
Mort04 Mort04 is offline

Join Date: Oct 2017
Location: Michigan
Posts: 15
Default

Quote:
Originally Posted by BrianDC View Post
From the photos, I'm not seeing anything wrong.

Now drill out all those rivets and do it again! (only halfway kidding!)

Seriously, go ahead and order the kit. If you enjoyed the practice kit, building the real thing is even better.

Thanks! I did forget to mention I drilled out 8 rivets and reset them. Those 8 wonít be the last Iím sure!

I wish I had taken better care in avoiding scratches though. I know this is just the toolbox, but Iím trying to actually treat this project like the plane.
Reply With Quote
  #5
Old 10-10-2017, 10:59 AM
bkervaski's Avatar
bkervaski bkervaski is online now

Join Date: Mar 2017
Location: Birmingham, Alabama
Posts: 449
Default

Quote:
I wish I had taken better care in avoiding scratches though.
You will have all matter of scratches, burnishes, and all kinds of marks on your plane, best to come to terms with that now. If you even glance at the aluminum wrong it will scratch, it's very soft. "Let the painter fix it" will be something you say to yourself frequently
__________________
#140376 RV-14A QB IO-390 Thunderbolt
Reserved: N196
Progress: Finishing Kit
Reply With Quote
  #6
Old 10-10-2017, 11:34 AM
FloMo14Builder's Avatar
FloMo14Builder FloMo14Builder is online now

Join Date: Sep 2017
Location: Flower Mound, TX
Posts: 24
Default Lesson learned from tool box

Yes, the tool box project removed any doubt I had about if I wanted to paint or polish.
__________________
FloMo14Builder - KG5VAC
Shop - Complete
Practice tool box - Complete
Practice Airfoil - In progress
Emp Kit - Ordering Soon
Reply With Quote
  #7
Old 10-10-2017, 12:19 PM
mfleming's Avatar
mfleming mfleming is offline

Join Date: Sep 2016
Location: Joseph, Oregon
Posts: 99
Default

Quote:
Originally Posted by Mort04 View Post
Hey everyone, Iím a new builder just looking to have someone critique my work....
Your work looks very well done.

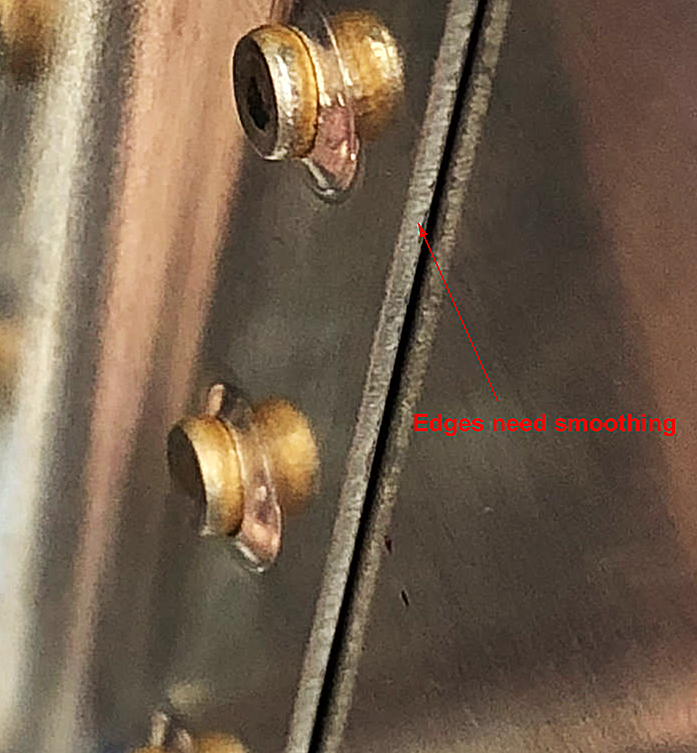

The one thing I noticed that needs attention is the sheet metal edges.
It looks like they still have the sharp edges and tooling marks from the manufacturing process.

Read about how to smooth these edges to remove all signs of these imperfection. When you run a finger over the edges, there should be no possibility of getting a cut.

__________________
Michael Fleming
Joseph, OR
sagriver at icloud dot com

RV-7 Slider #74572
Empennage (sans fiberglass), ailerons and flaps complete.
Working on wing and fuel tanks.
Donated 2017
Reply With Quote
  #8
Old 10-10-2017, 12:39 PM
airguy's Avatar
airguy airguy is offline

Join Date: Oct 2006
Location: Garden City, Tx
Posts: 3,884
Default

You'll find that when you take the blue vinyl film off and expose the fresh aluminum cladding it will be so soft that just about anything at all will mark it up. You can write on it with a sharpie, then take a rag with acetone and remove the writing, and you can still read what you wrote in the surface scratches from the sharpie felt-tip. There is no avoiding it while working on it.

The first thing the painter will do is scuff it all up with scotchbrite or sandpaper anyway.
__________________
Greg Niehues - VAF 2017 dues paid
Garden City, TX
N16GN flying! http://websites.expercraft.com/airguy/
Built an off-plan 9A with too much fuel and too much HP. Should drop dead any minute now.
Reply With Quote
  #9
Old 10-10-2017, 01:08 PM
Mort04 Mort04 is offline

Join Date: Oct 2017
Location: Michigan
Posts: 15
Default

Quote:
Your work looks very well done.

The one thing I noticed that needs attention is the sheet metal edges.
It looks like they still have the sharp edges and tooling marks from the manufacturing process.
This is a very good point, seeing a close up of the edge shows I didnít smooth/ debur the edge as well as I thought. I am ordering a Deburr wheel as we speak. At the time of assembly all I was using was some sandpaper. Thanks for pointing that out.
Reply With Quote
  #10
Old 10-10-2017, 02:28 PM
JonJay's Avatar
JonJay JonJay is offline

Join Date: Jan 2007
Location: Battleground
Posts: 3,642
Default

Quote:
Originally Posted by Mort04 View Post
This is a very good point, seeing a close up of the edge shows I didn’t smooth/ debur the edge as well as I thought. I am ordering a Deburr wheel as we speak. At the time of assembly all I was using was some sandpaper. Thanks for pointing that out.
A quick hit with a smooth single cut file 90 deg. to the edge will take off the tooling marks (punch tabs,shear marks, etc... ) You can then finish off with an edging tool, like a V-deburrer, or hit the edge with a file at 45 deg. on both sides.
Not only does this save time and wheel wear, it will square the edge better than just the polishing wheel alone.
It doesn't take a lot to clean up these edges.
