  #11
Old 12-06-2014, 09:25 PM
simatos simatos is offline

Join Date: Sep 2014
Location: vancouver canada
Posts: 83
Default

................and the jack screw does screw out of the back of the servo, right??
Reply With Quote
  #12
Old 12-06-2014, 10:44 PM
SMO's Avatar
SMO SMO is offline

Join Date: Oct 2007
Location: Salmon Arm, BC
Posts: 883
Default

If you look at the picture of your servo (T3 12A) on this page it shows the jack screw extending out the back of the servo. http://www.rayallencompany.com/products/servos.html
You can confirm the distance on yours by running it with a 9 volt battery.
__________________
Mark Olson
1987 RV-4 Sold
2003 Super Decathlon - Sold
F1 EVO Rocket, first flight May 31/14
Reply With Quote
  #13
Old 12-07-2014, 12:18 PM
simatos simatos is offline

Join Date: Sep 2014
Location: vancouver canada
Posts: 83
Default

Mark: Agreed: Powered up the servo while installed in the elevator and extension of jack screw bangs up against the spar so to make it work it work, the screw needs to go thru the spar or the servo must be mounted about one inch further away from spar. Thats where I am now, considering the reposition of the servo further away and see if that position works the trim tab ok. While there is a hole in the spar where you can route the wires, it is not in line with the jack screw as I have it all built. You need to run the servo thru its entire range to make sure there is no jack screw conflict, other wise I think you could
"SCREW" up the screw and servo big time, Thanks for your help, Cheers G
Reply With Quote
  #14
Old 10-19-2016, 06:14 PM
tgmillso tgmillso is offline

Join Date: Nov 2012
Location: Launceston, Tasmania, Australia
Posts: 444
Default

Quote:
Originally Posted by bruceh View Post
The hole on the elevator spar that the wiring goes through also conflicts with the threaded rod that sticks out on the servo. I drilled a smaller hole above that large hole big enough for a small snap bushing sized for the sleeved wiring. I made the new hole close enough to the existing hole so I could cut a small slot between the two holes so that the servo wire could be slipped into the new hole from the existing larger hole.

Picture this (rotated 90 degrees):

o=O

(crude ASCII drawing representation of big hole and small hole connected by a small slot)

Simply slit the small snap bushing with a utility knife so you can install it over the servo wire then snap it into place in the new smaller hole you drilled. The snap bushing fills the new hole and the slot is small enough to not affect the stability of the snap bushing to stay in the wiring hole.

Once you get the servo installed in the elevator, you can pull the wiring back into the fuselage and make a service loop there for the excess wire.
Is Bruce's solution still the most accepted way of making this modification? There's no way I'm comfortable with the Jack screw and wire running through the same hole like the standard drawings suggest. Does anyone know Vans take on this mod?
Tom.
Reply With Quote
  #15
Old 10-19-2016, 06:21 PM
rockwoodrv9 rockwoodrv9 is offline

Join Date: Dec 2011
Location: Meridian ID, Aspen CO
Posts: 2,234
Default

I just did exactly what Bruce suggested. It looks like it will work great and Bruce isn't having any issues and he is flying the pants off his plane.
__________________
rockwoodrv9a
Meridian Idaho
rockwoodrv9a@gmail.com
O-320 D2A
Panel andWiring done
Final assembly and paint!
Reply With Quote
  #16
Old 10-20-2016, 06:46 AM
Raymo's Avatar
Raymo Raymo is offline

Join Date: Nov 2014
Location: Richmond Hill, GA (KLHW)
Posts: 1,302
Default

I did the same as Bruce, following AeroElectric guidelines. Be sure to use a good heat shrink that won't allow the pins to be pulled out after shrinking.
__________________
Ray
RV-7A - Slider - N495KL - First flt 27 Jan 17
O-360-A4M w/ AFP FM-150 FI, 1 PMag, Vetterman Trombone Exh, SkyTech starter,
PlanePower Alt, Catto 3 blade NLE, FlightLines Interior, James cowl & plenum
All lines by TSFlightLines (AKA Hoser)
NSDQ

"The object of the game, gentlemen, is not to cheat death: the object is not to let him play."
Patrick Poteen, Sgt. U.S. Army


- - 2016/17 donation compliant - -
Reply With Quote
  #17
Old 10-20-2016, 03:43 PM
tgmillso tgmillso is offline

Join Date: Nov 2012
Location: Launceston, Tasmania, Australia
Posts: 444
Default Wire routing feedback from Van's

I wrote to Vans on this figure eight hole and received a response from them this morning regarding it and a number of other wire routing holes. They (Scott and Sterling) were not happy with the figure 8 type hole configuration in the elevator spar, but were satisfied with drilling another completely separate 3/8" hole approximately halfway between the edge of the existing hole and the top of the spar so that you don't have to route the cable through the same hole as the jack screw. This would mean terminating the cables in a plug after they had been routed, or possibly using small staggered bullet type joiners you could feed through one at a time (someone elses post addresses this on the forum). I'm not here to tell anyone they can't use the figure 8 hole in this location, I'm just saying that two of Van's tech guys were saying it was unacceptable, so I would think that if you are insistent to use it, perform your own fatigue and stress analysis. Regarding the rest of the routing of the trim cable, I had proposed feeding this along the front of the elevator torque tube per the plans, then down through a hole and corresponding snap bushing in the F-714 aft deck just in front of the elevator torque tube. The cable would then feed into conduit centered on the webs of F-711 and F-710. This hole would be 9/16" in size for the conduit I am using. From here the conduit would feed forward all the way to just aft of the main spar carry through. If necessary, a standoff with adel clamp would be riveted to the left side skin to hold the cable away from the elevator horn after it passes through the F-714 and into the conduit. My postings on the conduit may be found below.
Although my setup is relatively simple (only an electric elevator trim and rudder tail light) hopefully this helps others with similar wire routing questions.
Tom.

Fuselage Conduit Thread:
http://www.vansairforce.com/communit...36#post1120336




Reply With Quote
  #18
Old 09-14-2017, 06:07 AM
tgmillso tgmillso is offline

Join Date: Nov 2012
Location: Launceston, Tasmania, Australia
Posts: 444
Default Simple solution

http://www.vansairforce.com/communit...d.php?t=114651

The solution in the link above seems far more elegant than the one I ran past Van's. I can't believe I didn't find it earlier. It keeps the wiring well away from the screw jack and makes the hole in an already reinforce location on the elevator. The routing up and over the spar also means you do not have the risk of water running down the cable into your connector as I did. The only thing I don't like is the fact that you've got to remove the HS bolt to remove the plug. I've reamed my bolt holes to a relatively tight tolerance in this location, so it's not something I'll want to be pulling out. I'll think of some way around this.

Tom.

Last edited by tgmillso : 09-14-2017 at 06:20 AM.
Reply With Quote
  #19
Old 10-04-2017, 01:35 AM
griffg griffg is offline

Join Date: Apr 2015
Location: Sydney, Australia
Posts: 11
Default Ray Allen Trim Servo wires

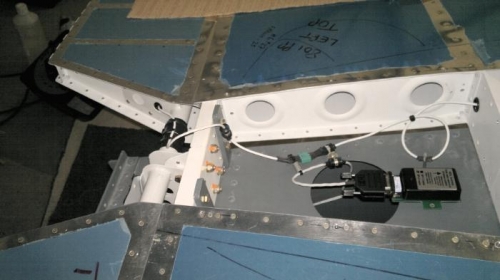

Please click on the links below for a view of the system I have used. I joined the short wires exiting from the elevator initially with D-Subs and then used a 9 pin connector to enable easy removal of the elevator.

The wiring length after the P-Clamps allows sufficient movement without the wire contacting against any part of the aircraft.

Hint: In the initial joining of the harnesses use differing lengths so that the joins are not all at the same location to minimise wiring thickness at the join location.

https://www.flickr.com/photos/141779426@N07/36778987024

https://www.flickr.com/photos/141779426@N07/37488428081
__________________
Gordon Griffin
RV-7A quickbuild under construction
Reply With Quote
  #20
Old 10-04-2017, 08:26 AM
rv8ch rv8ch is offline

Join Date: Feb 2005
Location: LSGG
Posts: 2,082
Default servo wiring

Quote:
Originally Posted by griffg View Post
The wiring length after the P-Clamps allows sufficient movement without the wire contacting against any part of the aircraft.
That's pretty clever. I've already done mine differently, but since I'm in the middle of the hstab SB, I might reconsider.
__________________
Mickey Coggins
http://rv8.ch
Reply With Quote
