  #1
Old 08-09-2019, 05:01 AM
mulde35d's Avatar
mulde35d mulde35d is offline

Join Date: Dec 2017
Location: Williamsburg, VA
Posts: 175
Default Lighted Switches

So while sitting with my wings complete and awaiting the arrival of the fuselage I took the time to photograph some back lighting options for AML34 Switches that fit nicely under Garmin GDU46X panels in the RV-14. These AML54 rockers from engravers.net are shown in AML34EBA4AA01 switches with LE-0504-01 LED Lights from digi-key.

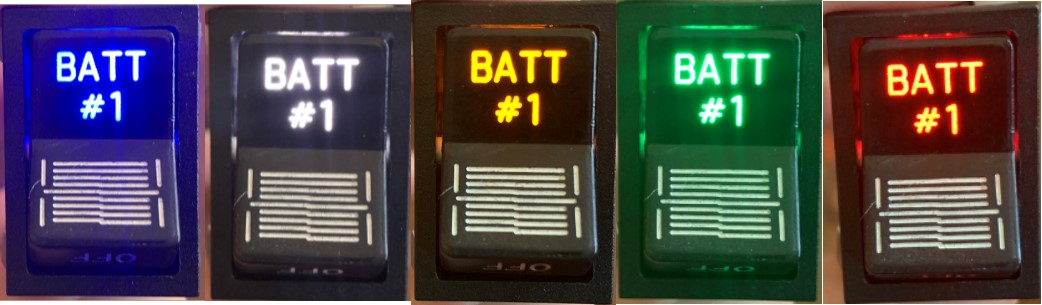

These are all the same Switch and Rocker, just with different LED lights installed (really easy to change out). From left to right is Blue, White, Yellow, Green, Red. Of note, the Green is really bright and the blue is not far behind. I am doing some additional experimenting with filling the transluscent engraving with white paint to make it more readable when the light is turned off. Will post more info on that later.

Thanks again to the guys at engravers.net for sending me some sample rocker switches to play with.
__________________
Jon
RV-14A - N122X (IO-390 TB, WW 74HRT, G3X)
http://www.mykitlog.com/mulde35d
Empennage & Wings Complete
Fuselage In Progress
Research Always
Reply With Quote
  #2
Old 08-09-2019, 06:42 AM
Walt's Avatar
Walt Walt is offline

Join Date: Aug 2005
Location: Dallas/Ft Worth, TX
Posts: 5,267
Default

As Stein would say just my 2c

Pro's:
Look "fancy"

Con's:
Cost more
Quality/reliability not as good as Honeywell toggle
Quick connect push on connectors not as robust/secure as screws
More complex to install with wiring and dimmers
Take up more room
__________________
Walt Aronow, DFW, TX (52F)

EXP Aircraft Services LLC
Specializing in RV Condition Inspections, Maintenance, Avionics Upgrades
Dynamic Prop Balancing, Pitot-Static Altmeter/Transponder Certification
FAA Certified Repair Station, AP/IA/FCC GROL, EAA Technical Counselor
Authorized Garmin G3X Dealer/Installer
RV7A built 2004, 1700+ hrs, New Titan IO-370, Bendix Mags
Website: ExpAircraft.com, Email: walt@expaircraft.com, Cell: 972-746-5154
Reply With Quote
  #3
Old 08-09-2019, 08:41 AM
Bavafa Bavafa is offline

Join Date: Oct 2007
Location: Sacramento, CA
Posts: 2,913
Default

Quote:
Originally Posted by Walt View Post
As Stein would say just my 2c

Pro's:
Look "fancy"

Con's:
Cost more
Quality/reliability not as good as Honeywell toggle
Quick connect push on connectors not as robust/secure as screws
More complex to install with wiring and dimmers
Take up more room
Plus 1, if I may.
__________________
Mehrdad
N825SM RV7A - IO360M1B - SOLD
N825MS RV14A - IO390 - Flying
Dues paid
Reply With Quote
  #4
Old 08-09-2019, 01:26 PM
mulde35d's Avatar
mulde35d mulde35d is offline

Join Date: Dec 2017
Location: Williamsburg, VA
Posts: 175
Default Fair

Fair opinion. I would argue pros also include

Ease of switch identification in low light
Reduced risk of leaving components on when they shouldnít be (Pitot Heat, Autopilot Inhibit, etc)

Not that anyone ever leaves pitot heat turned on after landing, right. I plan to make that one yellow or red.

I do agree in some cases upper face switch dependent lights donít make sense because the normal position is ON such as the master, alternator, and avionics. In these cases it isnít really notifying you of anything that you shouldnít already be aware of based on your screens being powered.

I find the additional light indicating operation helpful for things such as pitot heat, landing light, navigation lights, autopilot inhibit, ESP-X activation, etc. just differing opinions which is why I love experimental aviation. Everyone gets to have it their way.
__________________
Jon
RV-14A - N122X (IO-390 TB, WW 74HRT, G3X)
http://www.mykitlog.com/mulde35d
Empennage & Wings Complete
Fuselage In Progress
Research Always
Reply With Quote
  #5
Old 08-09-2019, 01:35 PM
Av8rRob's Avatar
Av8rRob Av8rRob is offline

Join Date: May 2005
Location: Rescue, CA. KROB
Posts: 276
Default

Well, I think they look awesome!!!
__________________
Rob Lasater
Rv-14 still workin
Paid nov 2018
Reply With Quote
  #6
Old 08-10-2019, 09:29 PM
dmattmul dmattmul is offline

Join Date: Dec 2015
Location: Spring Hill, FL
Posts: 60
Default Thatís why we build

We build experimental airframes so we can choose what we want. As long as itís safe and functional, builders choice. VAF needs to limit naysayers, whatís the point to dissing others personal options?

Thanks for sharing the color options, I applaud the effort and might need.

Seems easier to criticize than create.
__________________
RV-14A QB building, Lycoming 390 Thunderbolt arrived July 2019, Garmin avionics, Vertical Power, EFII-32 Ignition and Fuel, hope to be flying Spring of 2020 !! Dues paid+ of course !!
Reply With Quote
  #7
Old 08-10-2019, 09:38 PM
PilotjohnS PilotjohnS is offline

Join Date: Jan 2016
Location: Southwest
Posts: 741
Default Cool Idea

I actually like the idea of illuminated switches. Thanks for sharing, I will look into them.
__________________
John S

WARNING! Information presented in this post is my opinion. All users of info have sole responsibility for determining accuracy or suitability for their use.

Dues paid 2019, worth every penny

RV9A- Status: tail feathers done less tips
Wings done less tips and avionics
Fuselage 30%
www.pilotjohnsrv9.blogspot.com
Reply With Quote
  #8
Old 08-10-2019, 09:42 PM
PilotjohnS PilotjohnS is offline

Join Date: Jan 2016
Location: Southwest
Posts: 741
Default Colors for IFR

So for the experts on IFR lighting, what colors are best for an IFR panel? I was taught green or yellow, but my IFR ground school said to use white when on final and dont worry about preserving night vision because proper color rendering was more important.

What are everyone’s thoughts on color for IFR?
__________________
John S

WARNING! Information presented in this post is my opinion. All users of info have sole responsibility for determining accuracy or suitability for their use.

Dues paid 2019, worth every penny

RV9A- Status: tail feathers done less tips
Wings done less tips and avionics
Fuselage 30%
www.pilotjohnsrv9.blogspot.com
Reply With Quote
  #9
Old 08-11-2019, 04:49 AM
rocketman1988 rocketman1988 is offline

Join Date: Jun 2010
Location: Sunman, IN
Posts: 1,669
Default Data point

At work, pretty everything is white light with the exception of a red lense on the grimes light...that never gets used...
__________________
Bob
Aerospace Engineer '88

RV-10
Structure - 90% Done
Cabin Top - Aaarrghhh...
EFII System 32 - Done
290 HP Barrett Hung
ShowPlanes Cowl with Skybolts Fitted - Beautiful
Wiring...

Dues Paid 2018,...Thanks DR+
Reply With Quote
  #10
Old 08-11-2019, 05:12 AM
mulde35d's Avatar
mulde35d mulde35d is offline

Join Date: Dec 2017
Location: Williamsburg, VA
Posts: 175
Default IFR vs night

Quote:
Originally Posted by PilotjohnS View Post
So for the experts on IFR lighting, what colors are best for an IFR panel? I was taught green or yellow, but my IFR ground school said to use white when on final and dont worry about preserving night vision because proper color rendering was more important.

What are everyoneís thoughts on color for IFR?
I hadnít really thought about lighting in regards to IFR as much as night. During daylight any of the colors would be fine and during daytime IFR I suspect the same would hold true.

Now at night, if using these type of switches I would definitely have them on a dimmer. Especially if you want green, blue, or white. While preserving night vision may not be critical, you still donít need a bright set of lights shining in your eyes. Yellow was definitely the most docile of the colors and if all else fails I think that would be my fallback color. Good this is the LED lights that change out so easily are about $1 each. So easy to change the color if you change your mind.
__________________
Jon
RV-14A - N122X (IO-390 TB, WW 74HRT, G3X)
http://www.mykitlog.com/mulde35d
Empennage & Wings Complete
Fuselage In Progress
Research Always
Reply With Quote
