Default Try this one

I've been using the ALFI from Aircraft SPruce for a number of years now. It's a little pricey, but with the random flashing pattern it is really amazing. I had a tower chief come and tell me that whatever I paid for the lights it was worth it, as they see me before anyone else, including the big jets.


https://www.aircraftspruce.com/catal...clickkey=52910

Vic
__________________
Vic Syracuse

Built RV-4, RV-6, 2-RV-10's, RV-7A, RV-8, Prescott Pusher, Kitfox Model II, Kitfox Speedster, Kitfox 7 Super Sport, Just Superstol, DAR, A&P/IA, EAA Tech Counselor/Flight Advisor, CFII-ASMEL/ASES
Kitplanes "Checkpoints" monthly column
EAA Homebuilt Council Chair/member EAA BOD
www.Baselegaviation.com

Last edited by vic syracuse : 05-04-2018 at 05:38 AM. Reason: added link
Reply With Quote
  #292
Old 05-04-2018, 06:29 PM
Bill Boyd's Avatar
Bill Boyd Bill Boyd is offline

Join Date: Sep 2006
Location: Landing field "12VA"
Posts: 1,379
Default prelim report:

The Perihelion module works fine to wig-wag a pair of landing lights - each made from a trio of "3 x Cree XM-L2 U3 Neutral White 4500K 3800 Lumens 8.4V 1-Mode LED Drop in for TrustFire 3T6 Flashlight (Dia 51mm)" flashlight heads, fed 10.3V via a DC-DC bucking voltage converter.

It's impressive.
__________________
Bill Boyd

Hop-Along Aerodrome (12VA)
RV-6A - N30YD - flying since '98
RV-10 - N130YD reserved - under construction

donating monthly to the VAF - thanks, Doug
Reply With Quote
  #293
Old 02-19-2019, 04:30 PM
rocketbob's Avatar
rocketbob rocketbob is offline

Join Date: Jun 2006
Location: 8I3
Posts: 3,306
Default

I recently had the challenge of retrofitting lights in a RV-4 without hurting the paint. Here's what I came up with. Used one Duckworks lens cut in half for both wings. Brackets allow adjustment as the light bracket has 3/8" holes secured by flat clamping plates. I put them as far forward as practical to reduce aperture effect. Total cost ~$50 using kaidomain LEDs.



__________________
Bob Japundza CFI A&PIA
N55BC RV-6 borrowed, flying
N678X F1 Rocket, under const.
N244BJ RV-6 "victim of SNF tornado" 1200+ hrs, rebuilding
N8155F C150 flying
N7925P PA-24-250 Comanche, restoring
Not a thing I own is stock.

Last edited by rocketbob : 02-19-2019 at 04:39 PM.
Reply With Quote
  #294
Old 02-20-2019, 04:50 AM
vic syracuse vic syracuse is offline
Super Moderator

Join Date: May 2005
Location: Locust Grove, GA
Posts: 2,467
Default

Quote:
Originally Posted by rocketbob View Post
I recently had the challenge of retrofitting lights in a RV-4 without hurting the paint. Here's what I came up with. Used one Duckworks lens cut in half for both wings. Brackets allow adjustment as the light bracket has 3/8" holes secured by flat clamping plates. I put them as far forward as practical to reduce aperture effect. Total cost ~$50 using kaidomain LEDs.



Well done! Looks very nice.

Vic
__________________
Vic Syracuse

Built RV-4, RV-6, 2-RV-10's, RV-7A, RV-8, Prescott Pusher, Kitfox Model II, Kitfox Speedster, Kitfox 7 Super Sport, Just Superstol, DAR, A&P/IA, EAA Tech Counselor/Flight Advisor, CFII-ASMEL/ASES
Kitplanes "Checkpoints" monthly column
EAA Homebuilt Council Chair/member EAA BOD
www.Baselegaviation.com
Reply With Quote
  #295
Old 02-20-2019, 05:32 AM
Bill Boyd's Avatar
Bill Boyd Bill Boyd is offline

Join Date: Sep 2006
Location: Landing field "12VA"
Posts: 1,379
Default I was just thinking about this thread

since, looking for something to do to keep me moving forward while I wait for engine pieces to return from the overhaul facility, I cycled back around to some unfinished business on the leading edge...




I decided the little buck supply was a little under-muscled for the current demand of six flashlight heads all on at one time, so I decide to order a second unit, install each supply in the wing bay mounted to the aft side of the landing light bracket, and wig-wag them from a Perihelion module located in the cabin. You can see the three-head light on top of the wing, awaiting installation once I get the proper 10-32 screws.

I'm impatient to see the wig-wag in action somewhere besides on the test bench!
__________________
Bill Boyd

Hop-Along Aerodrome (12VA)
RV-6A - N30YD - flying since '98
RV-10 - N130YD reserved - under construction

donating monthly to the VAF - thanks, Doug
Reply With Quote
  #296
Old 02-20-2019, 06:29 AM
Timberwolf Timberwolf is offline

Join Date: Nov 2016
Location: Navarre, FL
Posts: 360
Default

I’m running 4x the Amazon par 36 leds and attempted using a flasher from CRAZEDpilot.com. However, it didn’t have what it takes to control these lights. CRAZEDpilot says they aren’t fast switching led drivers causing th issue, but to me it looks like it just doesn’t have the power that they claim.

I’m interested in the perihelion but wish it was just a 3 way switch to not have to put in another hole, or that it was a 3 way switch to give wig wag/off/constant. O well, gotta give up something. I’ll get one of these ordered.

Side note, does backfeeding the switch hurt anything? If I turn on the landing lights without turning off wig wags will it kill the circuitry?
__________________
Shane
RV-6 IO-360 Angle valve, G3X touch
Murphy Moose M14P flying
Aero Engineer, A&P

Last edited by Timberwolf : 02-20-2019 at 02:02 PM.
Reply With Quote
  #297
Old 02-20-2019, 06:34 AM
GalinHdz's Avatar
GalinHdz GalinHdz is offline

Join Date: Mar 2010
Location: KSGJ / TJBQ
Posts: 1,760
Default

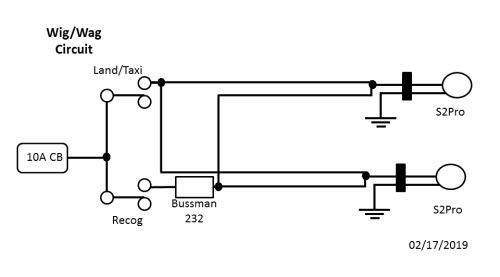

For my dual BajaDesign S2 Pro installation I wired in an inexpensive Bussmmann 232 electronic flasher which is rated at 20A and works great. Instead of two switches you can use a single 3 way switch and get the same results. Backfeeding has not been a problem.

With this configuration, if both modes are selected the constant ON "landing mode" has priority and over-rides the flashing "recognition mode". This would not be an issue if you use a 3 way switch. Here is a link to a YouTube video of the lights installed on my non RV in both the landing and recognition modes using the above circuit. Just another way to "skin a cat".

__________________
Galin
CP-ASEL-AMEL-IR
FCC Radiotelephone (PG) with Radar Endorsement
2019 Dues Paid
www.PuertoRicoFlyer.com

Last edited by GalinHdz : 02-20-2019 at 09:35 PM.
Reply With Quote
  #298
Old 02-20-2019, 10:59 AM
Ted RV8 Ted RV8 is offline

Join Date: May 2007
Location: Northern CA
Posts: 396
Default

Has anybody used the Baja Designs Squadron Sport lights yet?

Price is $129.95 and puts out 3150 Lumens. https://www.bajadesigns.com/products...t-led-spot.asp

Considering these or the Squadron Pro more light and doable the price

Also looking at the FlyLED wing leading edge kit. Middle of the road price compared to the Baja Designs. 4900 Lumens.
https://flyleds.com/products/#!/Comb...ht/p/109859298


Like the idea of one aimed down which suits a taidragger very well. Not sure if these work with Perhillion wig wag switch which I’m already running.

Last edited by Ted RV8 : 02-20-2019 at 11:24 AM.
Reply With Quote
  #299
Old 02-20-2019, 02:20 PM
Bill Boyd's Avatar
Bill Boyd Bill Boyd is offline

Join Date: Sep 2006
Location: Landing field "12VA"
Posts: 1,379
Default

One question I was able to answer for myself is that the Perihelion module does not require ballast resistors to function with LED lights as some others do. At least the Kaidomain Cree flashlight heads I used integrate with the wig-wag without any bootstrap parts added.
__________________
Bill Boyd

Hop-Along Aerodrome (12VA)
RV-6A - N30YD - flying since '98
RV-10 - N130YD reserved - under construction

donating monthly to the VAF - thanks, Doug
Reply With Quote
  #300
Old 02-28-2019, 08:14 PM
gator88 gator88 is offline

Join Date: Jan 2015
Location: virginia
Posts: 6
Default Perihelion wig wag

Has anyone installed the Perihelion wig wag and wired it like in drawing C on the Perihelion website?

http://www.periheliondesign.com/wigwagmnl.htm

The diodes suggested are circuit board diodes that need to be soldered - does anyone know if there is a similar diode available with screw terminals or spade terminals? Would this diode need to be mounted with a heat sink and thermal pad?
Reply With Quote
