VansAirForceForums
Home > VansAirForceForums

- POSTING RULES
- Donate yearly (please).
- Advertise in here!

- Today's Posts | Insert Pics


Go Back   VAF Forums > Model Specific > RV-14
Register FAQ Members List Calendar Search Today's Posts Mark Forums Read

Reply

Thread Tools Search this Thread Display Modes
  #31
Old 02-16-2013, 02:48 PM
Ron B. Ron B. is offline

Join Date: Nov 2007
Location: Yarmouth, Nova Scotia
Posts: 2,238
Default

Anyone start wiring yet? The hole at the wingtips for the five pin connector seems too long. The connector just falls out. I'll have to make a plate with the correct size hole and rivet it to the connector mount bracket.
__________________
Thanks Ron
RV-10 SOLD
RV-14 Flying
Reply With Quote
  #32
Old 02-16-2013, 04:06 PM
rvbuilder2002 rvbuilder2002 is offline

Join Date: Jul 2005
Location: Hubbard Oregon
Posts: 7,873
Default

Quote:
Originally Posted by Jetguy View Post
The current revision doesn't say anything about sect 16.
Understandable, since I don't think anyone up to this point has reported any errors or difficulty understanding anything in section 16

Quote:
Originally Posted by Jetguy View Post
Page 16-4, Step 3, the highlighted (Will from this point forward be refered to HL) in yellow Part #T1005B should be Part #T1005C. Note the nut plates HL in blue, at this point in the plans it doesn't say weather we should dimple or CS (Machine Countersink) these holes. There are 5 holes.
Because it mentions it on page 16-8 under Step 4.

Quote:
Originally Posted by Jetguy View Post
However on page 16-8 under Step 4 it says,"CS the 5 screw holes in the T00006L......... Deductive Reasoning (will be DR from this point forward) 101, I guess that means these holes.
No deductive reasoning needed here... It says five screw holes. The only other screw holes on the T-00006-L have already been dimple countersunk, so there isn't really any other choices to confuse them with.

Quote:
Originally Posted by Jetguy View Post
Page 16-5 Figure 1, Note the rivets HL in green. It says Do Not Dimple. Move forward to page 16-8 Step 4 see it below.

We apply DR it would seem we should CS these holes after attaching the skin via proseal but this one is still a bit confusing. Maybe some one could clarify this for me, perhaps a RV10 builder?
Page 16-5 below note the 2 red arrows. What rivets go there and do we dimple or CS?
I believe earlier in the plans when it had you machine countersink the row of holes that attach the baffle it said to leave some of them (every 12th hole?) un-countersunk. That is so that there is some un-countersunk holes to help better align the baffle when it is final installed. After riveting, you countersink the remainder of the holes and install rivets.

Regarding your question related to the red arrows, my deductive reasoning can't figure out what you are asking. It says do not dimple! I will research when I have some plans to look at.
Reply With Quote
  #33
Old 02-16-2013, 06:46 PM
Jetguy's Avatar
Jetguy Jetguy is offline

Join Date: Aug 2008
Location: Texas, Fort Worth
Posts: 1,231
Question

Quote:
I believe earlier in the plans when it had you machine countersink the row of holes that attach the baffle it said to leave some of them (every 12th hole?) un-countersunk. That is so that there is some un-countersunk holes to help better align the baffle when it is final installed. After riveting, you countersink the remainder of the holes and install rivets.
When you get a set of plans in you hands please tell me the page and step # where it says to do this? I cant seem to find that Step.
In regards to the red arrow holes, jee I thought I was pretty clear with my question. I'll try again, will there ever be anything in these holes or will they remain open forever.
Thanks for the other answers.
__________________
John
RV12 N1212K
Flying Since June 2010
1020 Hours as of 9/30/2017
Johnrv12@icloud.com
RV14 Wing, arrived and building at Rdog's new Hanger at 16X
S/N 140014
Reply With Quote
  #34
Old 02-16-2013, 09:04 PM
rvbuilder2002 rvbuilder2002 is offline

Join Date: Jul 2005
Location: Hubbard Oregon
Posts: 7,873
Default

Quote:
Originally Posted by Jetguy View Post
When you get a set of plans in you hands please tell me the page and step # where it says to do this? I cant seem to find that Step.
In regards to the red arrow holes, jee I thought I was pretty clear with my question. I'll try again, will there ever be anything in these holes or will they remain open forever.
Thanks for the other answers.
John, I am just trying to help... I realize things can be mis-taken when written in words, but it seems like you are coming across with a bit of sarcasm?

I was stating what the intent is, I can not say whether that is actually what it says (I will look into it next week).

As for the other question... you asked "What rivets go there and do we dimple or CS?" The plans specifically say "do not dimple". That was the reason for me not understanding your question.

If you look at later pages, I think you will see that these holes with the red arrows rivet the T-00006 to the tank skin
Reply With Quote
  #35
Old 02-16-2013, 09:13 PM
Jetguy's Avatar
Jetguy Jetguy is offline

Join Date: Aug 2008
Location: Texas, Fort Worth
Posts: 1,231
Thumbs up After further review..........

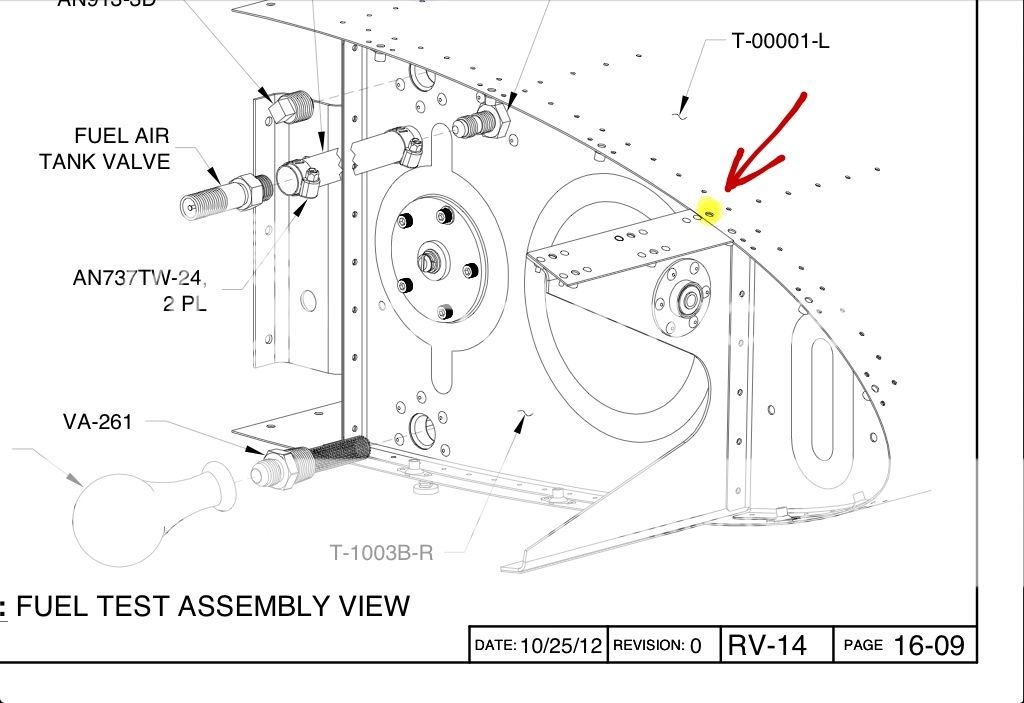

Well after further investigation you were right. On Page 16-3 Step 6 it does say to CS all those holes HL in green. Furthermore I now under stand about the holes with the red arrows next to them. They will be CS in Step 4 on page 16-8 for #8 screws. So that answers all my questions for now. I think my problem is that I'm trying to read ahead without having the parts in my hand which at times can be quite confusing. See the hole from a different angle in this pic HL in yellow, yes thats the one next to the RED ARROW,
__________________
John
RV12 N1212K
Flying Since June 2010
1020 Hours as of 9/30/2017
Johnrv12@icloud.com
RV14 Wing, arrived and building at Rdog's new Hanger at 16X
S/N 140014

Last edited by Jetguy : 02-17-2013 at 09:59 AM.
Reply With Quote
  #36
Old 03-01-2013, 12:40 PM
rvbuilder2002 rvbuilder2002 is offline

Join Date: Jul 2005
Location: Hubbard Oregon
Posts: 7,873
Default

Quote:
Originally Posted by Jetguy View Post
Well after further investigation you were right. On Page 16-3 Step 6 it does say to CS all those holes HL in green.
I finally got a chance to look at this in more detail, so wanted to clarify.

In step 6 it does say to machine C.S. all the tank baffle flange holes , but in the notes prior to that step, it recommends that every 10th hole be left un countersunk for now, so that during final assy, there can be clecos baring on full holes in the skin and baffle, aiding in alignment and preventing damage to an otherwise countersunk hole.
Reply With Quote
  #37
Old 03-08-2013, 07:36 AM
Yank Yank is offline

Join Date: Feb 2013
Location: Spotsylvania
Posts: 32
Default

John,

Thanks for pointing this stuff out. I agree, it seems a bit confusing.
Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

vB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump


All times are GMT -6. The time now is 06:02 PM.


The VAFForums come to you courtesy Delta Romeo, LLC. By viewing and participating in them you agree to build your plane using standardized methods and practices and to fly it safely and in accordance with the laws governing the country you are located in.
