Why not design the mount and install a DJM quadrant, if that is what you want?

I have over 700 hours on the DJM quadrant in my -9 and wouldn't want Cessna style engine and prop controls in my RV.
__________________
Bill R.
RV-9 (Yes, it's a dragon tail)
O-360 w/ dual P-mags
Build the plane you want, not the plane others want you to build!
SC86 - Easley, SC
www.repucci.com/bill/baf.html
Reply With Quote
  #42
Old 02-06-2017, 10:00 AM
Rocky005 Rocky005 is offline

Join Date: Jan 2013
Location: Perth, Western Australia
Posts: 35
Default Our throttle quadrant installed in our RV-14 and looking good

Hi All
I am a low hours pilot so take the following as you like, I fly both Cessna’s 152/172's and also a PA-28 and I prefer using the throttle quadrant over the push pull controls. I have used both types of controls in formation and found the quadrand was great.

It would be nice if Vans started to supply a quadrant upgrade kit for builders who want one, I think the interest is there.
So we went ahead and also installed the RV-10 Quadrant in our RV-14A. Our install was the same as Tim's, and the information Tim on Tims blog has helped us a lot so if anyone is not sure - read his blog and go for it.

The quadrant was very easy to fit on our RV-14, with the only variation to Tims is that we dropped ours by 50mm (see picture). We dropped its mount to help keep our hands away from the trim and flap controls yet to be mounted in the centre console (they will get mounted below the shown autopilot in the picture). We also felt lowering our quadrant made it more comfortable to use.
And note we can still easily view and use the standard RV-14 fuel petcock below the quadrant.



We have not yet enclosed our quadrant, but we plan on enclosing the sides once we finish the cabling.

Last edited by Rocky005 : 02-06-2017 at 10:04 AM.
Reply With Quote
  #43
Old 02-10-2017, 10:43 AM
TimO TimO is offline

Join Date: Feb 2005
Location: Wisconsin
Posts: 429
Default

Very nice, glad it's working out for you. You won't regret having a quadrant. It's very nice, and it's been working perfectly for me. It's every bit as comfortable as the one in the RV-10 and although you found you liked yours 1" lower, I find the position is perfect for myself and my 15 year old daughter both. I verified the positioning with her when we took these photos and she says it's great there.

I did add some side covers for it late in the summer, but just realized I never posted any, so I took some yesterday before our flight. I covered the sides in vinyl and foam backing with a hard back plate, so they are nice and padded and you can rest against it now comfortably. It was simple to do. I also added USB charging jacks on the side, for ipads and such.

I have some additional pics now on my website too, including some of the nice A-700 heater vent control cables. I'm VERY glad I did that. They've been working out excellently this winter!

Also you may notice in the pics I added headset hangers a week ago. They are glued on, so nothing riveted permanently.

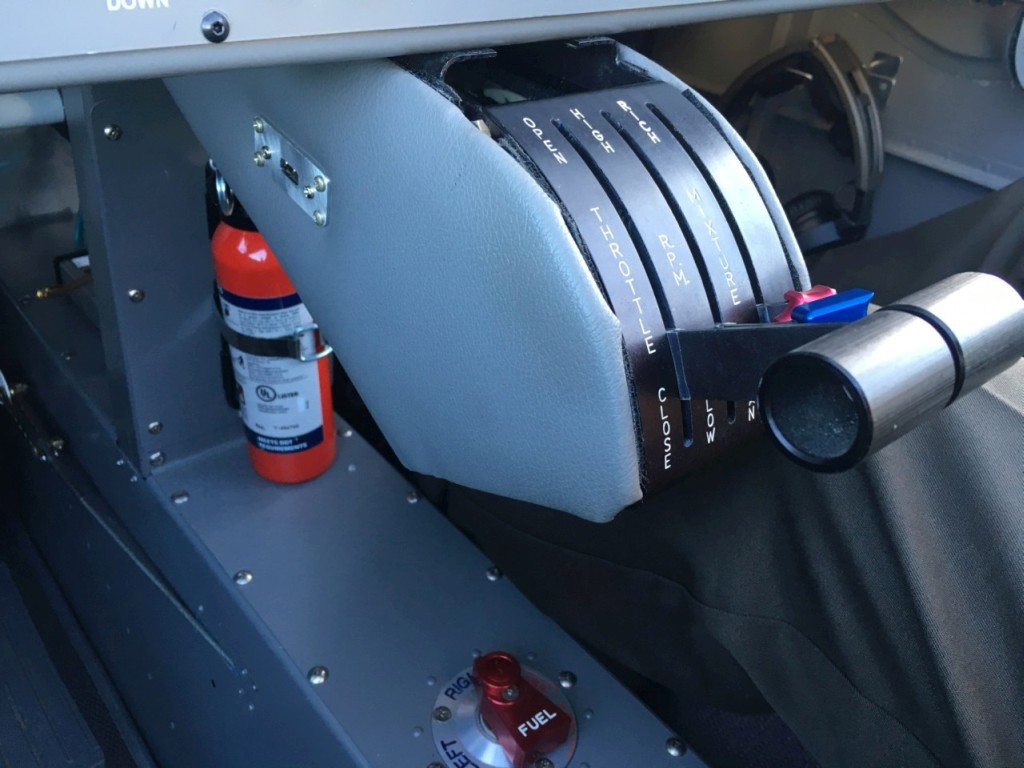

Here are some pics of the quadrant covers:



__________________
Tim Olson - CFI
RV-10 N104CD - Flying 2/2006 - 1300+ hours http://www.MyRV10.com
RV-14 N14YT - Flying 6/2016 - 285+ hours http://www.MyRV14.com
RV-10/14 Transition Training: http://www.RVCFI.com
Reply With Quote
  #44
Old 02-10-2017, 01:41 PM
Ron B. Ron B. is offline

Join Date: Nov 2007
Location: Yarmouth, Nova Scotia
Posts: 2,229
Default

I like mine left open as I stick my fingers /thumb in the side to stabilize my hand in turbulence to make small position changes.
__________________
Thanks Ron
RV-10 SOLD
RV-14 Flying
Reply With Quote
  #45
Old 08-23-2017, 11:16 PM
TimO TimO is offline

Join Date: Feb 2005
Location: Wisconsin
Posts: 429
Default

Just a heads up for someone wanting to do a quadrant. I saw a classifieds thread today with someone selling one that was for an RV-10.
http://www.vansairforce.com/communit...d.php?t=152531

Just hoping to help someone who was looking for one.
I've had many comments offline from people who've gone that route and have been happy.
__________________
Tim Olson - CFI
RV-10 N104CD - Flying 2/2006 - 1300+ hours http://www.MyRV10.com
RV-14 N14YT - Flying 6/2016 - 285+ hours http://www.MyRV14.com
RV-10/14 Transition Training: http://www.RVCFI.com
Reply With Quote
  #46
Old 08-24-2017, 01:07 AM
control control is offline

Join Date: Feb 2006
Location: Stockholm, Sweden
Posts: 536
Default

Please note that the really good stuff regarding the throttle on Tims blog, is at the end of the post in this link, not under under "Panel Part 3 - Throttle Quadrant": http://www.myrv14.com/buildlog/20160428/index.html
__________________
RV-14 kit #140138
I have entered the 90% done, 90% left to do zone
Http://magnusrv.blogspot.se
Reply With Quote
  #47
Old 01-02-2018, 03:58 AM
control control is offline

Join Date: Feb 2006
Location: Stockholm, Sweden
Posts: 536
Default

Rocky, Ron or others that have installed an RV10 quadrant in a 14:

I have followed and gotten great support from Tim regarding the quadrant installation, just one question remaining: the cable lenght for the prop control.

Have any of you routed it as in the 14-manual and if so what lenght did you use?

There will be several weeks before I have my engine here for measurements and I would like to order the cables in advance.

Best regads / control
__________________
RV-14 kit #140138
I have entered the 90% done, 90% left to do zone
Http://magnusrv.blogspot.se
Reply With Quote
  #48
Old 01-02-2018, 04:55 AM
N941WR's Avatar
N941WR N941WR is offline

Join Date: Jan 2005
Location: SC
Posts: 11,534
Default

Quote:
Originally Posted by Ron B. View Post
I like mine left open as I stick my fingers /thumb in the side to stabilize my hand in turbulence to make small position changes.
While not a -14, I did install one in my -9 10 years ago and left it open for the reason described above and wouldn't change a thing.
__________________
Bill R.
RV-9 (Yes, it's a dragon tail)
O-360 w/ dual P-mags
Build the plane you want, not the plane others want you to build!
SC86 - Easley, SC
www.repucci.com/bill/baf.html
Reply With Quote
  #49
Old 06-11-2018, 02:47 PM
control control is offline

Join Date: Feb 2006
Location: Stockholm, Sweden
Posts: 536
Default

Found this thread so why not post my follow up question here since it is perfectly on topic But first, I recently visited Tims blog in search for more information about control cable length and read some great news:

Congrats to Danielle who is now a private pilot!!!


Next up my question, since there are some minor differences between how I and Tim have attached the quadrants. (Mine is about half an inch back from the panel and I intend to use the existing FW penetration holes.) I need to measure the needed cable lengths. So between what points do you take the measurements to give to Cablecrafts?
__________________
RV-14 kit #140138
I have entered the 90% done, 90% left to do zone
Http://magnusrv.blogspot.se
Reply With Quote
  #50
Old 06-12-2018, 10:31 PM
TimO TimO is offline

Join Date: Feb 2005
Location: Wisconsin
Posts: 429
Default

Oh man, it's been a while so I'll have to just take a guess since I can't remember for sure. I know you'll want tip to tip distance for the threaded tips of the cable (the 10-32 threaded ends). Then you'll also want the throw as well. I'm hoping I wrote enough on my site when I did it that you can decipher it for your version. Either way, I'd call the company and see if they can give you the guidance. For me it was a little easy because I had an old cable on hand that melted on my RV-10 install, and was able to mock it up with that and measure off of it. If you have a cable or know of someone you can borrow one from, it would make it a pretty easy job. But, call them. See what they say.
__________________
Tim Olson - CFI
RV-10 N104CD - Flying 2/2006 - 1300+ hours http://www.MyRV10.com
RV-14 N14YT - Flying 6/2016 - 285+ hours http://www.MyRV14.com
RV-10/14 Transition Training: http://www.RVCFI.com
