  #11
Old 01-22-2018, 10:17 PM
Bavafa Bavafa is online now

Join Date: Oct 2007
Location: Sacramento, CA
Posts: 2,438
Default

Does anyone has a good sketch of Bob Archer antenna, I am planning on making one but donít have a good sketch for the dimensions. Also, what is the grounding requirement for the Archer, in my last plane I had one in the wing tip that was attached to the last rib for good grounding. It worked flawlessly and great reception but I am hoping this time to attach it to the wing tip and only use the nut plates for grounding, I am wondering if that provides adequate ground.
__________________
Mehrdad
RV7A - IO360M1B - SOLD
Dues paid
Reply With Quote
  #12
Old 01-23-2018, 12:20 AM
BobTurner BobTurner is offline

Join Date: Dec 2011
Location: Livermore, CA
Posts: 5,332
Default

Youíll want more than a sketch. The length, width, thickness, and material in the little parallel plate capacitor are fairly critical.
I put my ground leg under the nut plates, fastened with the nut plate rivets. Make sure you have good metal to metal contact all the way from the antenna to the rib.
Reply With Quote
  #13
Old 01-23-2018, 06:38 AM
steve murray's Avatar
steve murray steve murray is offline

Join Date: Jan 2005
Location: Flat Rock, North Carolina
Posts: 239
Default Archer Install question

I am getting close to installing Archer VOR antenna in RV10 wing tip. The instructions state to run the light wires via the red arrow.



Because I will be mounting the strobe\position lights where the blue circle is, question is, do I need to run the wires along the full length of this front element or can I route the lines halfway up this forward element and turn left (about at the 2nd cable clamp) and go direct to the lights as indicated by the green arrow?
__________________
Steve

RV8 Flying since 2007
RV10 in construction (Finish Kit)
Reply With Quote
  #14
Old 01-23-2018, 07:13 AM
Sam Buchanan's Avatar
Sam Buchanan Sam Buchanan is online now
been here awhile

Join Date: Dec 2004
Location: North Alabama
Posts: 3,796
Default

Quote:
Originally Posted by Bavafa View Post
Does anyone has a good sketch of Bob Archer antenna, I am planning on making one but donít have a good sketch for the dimensions. Also, what is the grounding requirement for the Archer, in my last plane I had one in the wing tip that was attached to the last rib for good grounding. It worked flawlessly and great reception but I am hoping this time to attach it to the wing tip and only use the nut plates for grounding, I am wondering if that provides adequate ground.
Installation instructions with dimensions:

http://www.aircraftspruce.com/catalog/pdf/SA001A.pdf
__________________
Sam Buchanan
1999 RV-6
1918 Fokker D.VII replica
Reply With Quote
  #15
Old 01-23-2018, 07:16 AM
Carl Froehlich's Avatar
Carl Froehlich Carl Froehlich is offline

Join Date: Dec 2007
Location: Dogwood Airpark (VA42)
Posts: 1,668
Default

Quote:
Originally Posted by Bavafa View Post
Does anyone has a good sketch of Bob Archer antenna, I am planning on making one but donít have a good sketch for the dimensions. Also, what is the grounding requirement for the Archer, in my last plane I had one in the wing tip that was attached to the last rib for good grounding. It worked flawlessly and great reception but I am hoping this time to attach it to the wing tip and only use the nut plates for grounding, I am wondering if that provides adequate ground.
Read my post on this thread about how to build your antenna: http://www.vansairforce.com/communit...d.php?t=153969

At any rate - recommend attaching the antenna to the wing rib. This makes wingtip removal much simplier.

Carl
Reply With Quote
  #16
Old 01-23-2018, 07:36 AM
Carl Froehlich's Avatar
Carl Froehlich Carl Froehlich is offline

Join Date: Dec 2007
Location: Dogwood Airpark (VA42)
Posts: 1,668
Default

Quote:
Originally Posted by steve murray View Post
. SNIP

Because I will be mounting the strobe\position lights where the blue circle is, question is, do I need to run the wires along the full length of this front element or can I route the lines halfway up this forward element and turn left (about at the 2nd cable clamp) and go direct to the lights as indicated by the green arrow?
There is no reason to run nav/strobe wires along the antenna as shown in the instruction manual, and some consideration not to. I read these instructions as ĎIf you really need to have NAV/Stobe wires near the antenna, run them like thisí.

Iíve always mounted my homebrew antennas a little aft along the wing rib to provide some separation between the antenna and the nav/strobe/landing light wires. Three RVs flying with this setup (the fourth later this year) with good performace from these antennas.

Carl
Reply With Quote
  #17
Old 01-23-2018, 10:24 AM
Bavafa Bavafa is online now

Join Date: Oct 2007
Location: Sacramento, CA
Posts: 2,438
Default

Quote:
Originally Posted by Carl Froehlich View Post
Read my post on this thread about how to build your antenna: http://www.vansairforce.com/communit...d.php?t=153969

At any rate - recommend attaching the antenna to the wing rib. This makes wingtip removal much simplier.

Carl
Hi Carl,
Thanks for the info but could it be that is the wrong thread? I read the discussion about installing a com antenna in the wing tip but did not see anything on building the Bob Archer VOR antenna in that thread.
In regards to attaching it to the wing rib, I think it would be more difficult to remove that way. In my RV7, I had to use a foam to hold it in place since it could not be attached to the wingtip and putting the wingtip on was a bit of work. The way I envision with the antenna attached to the wingtip, I only need to disconnect the coax cable to remove the tip. Any other concern or consideration with this process?
__________________
Mehrdad
RV7A - IO360M1B - SOLD
Dues paid

Last edited by Bavafa : 01-23-2018 at 10:28 AM.
Reply With Quote
  #18
Old 01-23-2018, 11:22 AM
Carl Froehlich's Avatar
Carl Froehlich Carl Froehlich is offline

Join Date: Dec 2007
Location: Dogwood Airpark (VA42)
Posts: 1,668
Default

Quote:
Originally Posted by Bavafa View Post
Hi Carl,
Thanks for the info but could it be that is the wrong thread? I read the discussion about installing a com antenna in the wing tip but did not see anything on building the Bob Archer VOR antenna in that thread.
In regards to attaching it to the wing rib, I think it would be more difficult to remove that way. In my RV7, I had to use a foam to hold it in place since it could not be attached to the wingtip and putting the wingtip on was a bit of work. The way I envision with the antenna attached to the wingtip, I only need to disconnect the coax cable to remove the tip. Any other concern or consideration with this process?
The Archer type comm and VOR antennas are identical except the VOR antenna is slightly longer and mounted horizontal, the Comm antenna is mounted with as much vertical change in the arm that extends out from the wing rib as possible.

If you attach the antenna to a piece of 0.032 angle that is bolted to the wing rib, the wingtip simply slides over the antenna. The antenna never gets moved. The leg of the antenna running off the wing rib just lays inside the wingtip.

Per my previous notes, I point out that you can improve the antenna performace by extending it out into the wingtip as far as you can. The ďtailĒ gets shorten to maintain the same resonant frequency. This however requires the use of an antenna analyzer to tune it to the appropriate frequency and adjust the gamma match to the 50 ohm feedline. An antenna analyzer should be one of the first shared tools that any EAA chapter to get. The other option is to find an experienced ham radio operator in your area and ask him to help. Most are thrilled to do any antenna work.

Carl
Reply With Quote
  #19
Old 10-04-2018, 03:42 PM
MED MED is offline

Join Date: Jul 2015
Location: Aiken, SC
Posts: 294
Default

Quote:
Originally Posted by Carl Froehlich View Post

If you attach the antenna to a piece of 0.032 angle that is bolted to the wing rib, the wingtip simply slides over the antenna. The antenna never gets moved. The leg of the antenna running off the wing rib just lays inside the wingtip.



Carl
Reviving this post looking for advice installing an Archer antenna in a wingtip installed with hinges. The hinge on the wing-side is attached with a piece of the Fiberglas flange between the hinge and the wing skin. My thought is this will insulate the hinge, so I couldn't rely on the hinge to provide the ground connection to the wing. Do you have a photo of the antenna attached to a piece of angle? Do you rivet the antenna to the angle?
__________________
MED
140236
N435MD reserved
Reply With Quote
  #20
Old 10-04-2018, 04:21 PM
Carl Froehlich's Avatar
Carl Froehlich Carl Froehlich is offline

Join Date: Dec 2007
Location: Dogwood Airpark (VA42)
Posts: 1,668
Default

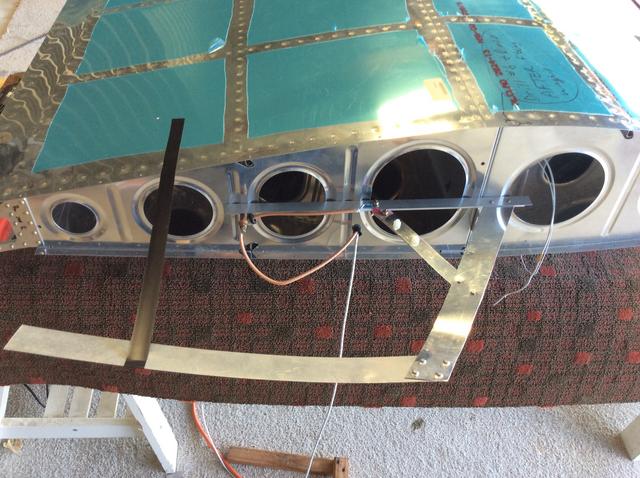

Here is a nav antenna I made for a new RV-14A. The overall tail length is long as the photo was taken before it was shorten during the tuning process. The black tape was use to temporarily hold it in place while tuning.
Carl
