Default Aarrrg!

Just finished the annual and BFR which ran out the same month. Everything worked normally yesterday. Today the left-hand door wouldn't latch properly. The interior handle goes to about a 45 degree angle then stops. This has the basic 2-pin lock but it also has the "I fly RV-10" flush billet handles on the exterior. Something is jamming the mechanism inside the door (which is sealed). Before I start cutting, has anyone experience this?

~Marc
__________________
RV-10
N814RV
2017 Donation made X4
Reply With Quote
  #2
Old 07-02-2017, 03:46 PM
Jesse's Avatar
Jesse Jesse is offline

Join Date: May 2005
Location: X35 - Ocala, FL
Posts: 3,160
Default

It's probably the clevis pin that holds the geared rod to the pin. That can sometimes catch on the fiberglass. Try that first. If that's not it, pull the clevis pin on the front and the back independently and see which one starts working with the other disconnected. Narrow it down this way.
__________________
Jesse Saint (Saint Aviation, Inc. - VAF Advertiser)
352-427-0285
jesse@saintaviation.com
RV Hotel (hangar, room, car) at X35 in north FL

Commercial ASEL/S A&P/IA EAA Technical Counselor

Dynamic Prop Balancing, Prebuy Inspections, Condition Inspections, Repairs and Mods, Injector Tuning, Airframe, Engine, Panel Upgrades, Ferrying, etc.
Reply With Quote
  #3
Old 07-02-2017, 04:39 PM
Plummit's Avatar
Plummit Plummit is offline

Join Date: Apr 2010
Location: SoCal
Posts: 538
Default

Quote:
Originally Posted by Jesse View Post
It's probably the clevis pin that holds the geared rod to the pin. That can sometimes catch on the fiberglass. Try that first. If that's not it, pull the clevis pin on the front and the back independently and see which one starts working with the other disconnected. Narrow it down this way.
I think I see what you are talking about on the plans. I'll cut the door open at the interior latch and check it out.

-Marc
__________________
RV-10
N814RV
2017 Donation made X4
Reply With Quote
  #4
Old 07-02-2017, 05:32 PM
Kyle Boatright Kyle Boatright is offline

Join Date: Aug 2005
Location: Atlanta, GA
Posts: 2,894
Default

For those of you who've finished the doors, has anyone come up with a neat way to close the holes you cut in the inside surface of the doors without a permanent patch? I hate the idea of leaving those fiddly linkages in there without a way to access them other than cutting a hole in the door.
__________________
Kyle Boatright
Atlanta, GA
2001 RV-6 N46KB
Reply With Quote
  #5
Old 07-02-2017, 08:50 PM
Plummit's Avatar
Plummit Plummit is offline

Join Date: Apr 2010
Location: SoCal
Posts: 538
Default Fixed!

Well it turns out that the builder attached the racks with screws - and no locker. No locktight nothing. The screw holding the aft rack end had backed out until it started hitting the interior of the door. I removed it and replaced with red lock tight. At least he covered the hole with thin glass so it was easy to break out and access the mechanism.

I would have preferred a removable cover plate or door panel.

-Marc
__________________
RV-10
N814RV
2017 Donation made X4
Reply With Quote
  #6
Old 07-03-2017, 10:15 AM
NovaBandit's Avatar
NovaBandit NovaBandit is offline

Join Date: Feb 2011
Location: Hastings, MN
Posts: 570
Default

Quote:
Originally Posted by Kyle Boatright View Post
For those of you who've finished the doors, has anyone come up with a neat way to close the holes you cut in the inside surface of the doors without a permanent patch? I hate the idea of leaving those fiddly linkages in there without a way to access them other than cutting a hole in the door.
I have a hole in my painted inner door skins to allow me access to the pin that connects the handle pushrod to the PlaneAround 3rd latch rack. It's probably around a 3/4" hole... enough for me to get the pin and safety wire done up with a needle nose.

I used a flush hole plug cap to cover it. It's just a black circle on my tan doors, and doesn't look bad at all, and it's removable.

__________________
Ed Kranz
RV-10 N829EC - Flying
First Flight: 8/29/15
KSGS - Fleming Field, South Saint Paul, Minnesota

YouTube.com/GoodPlaneLiving
-- Build Timelapse and Travel Videos . . GoodPlaneLiving.com -- Build and Travel Blog
Reply With Quote
  #7
Old 07-03-2017, 10:19 AM
NovaBandit's Avatar
NovaBandit NovaBandit is offline

Join Date: Feb 2011
Location: Hastings, MN
Posts: 570
Default

Here's a picture of my "pin access hole"
__________________
Ed Kranz
RV-10 N829EC - Flying
First Flight: 8/29/15
KSGS - Fleming Field, South Saint Paul, Minnesota

YouTube.com/GoodPlaneLiving
-- Build Timelapse and Travel Videos . . GoodPlaneLiving.com -- Build and Travel Blog
Reply With Quote
  #8
Old 07-03-2017, 05:00 PM
Plummit's Avatar
Plummit Plummit is offline

Join Date: Apr 2010
Location: SoCal
Posts: 538
Default

Very nice Ed! In my case the offending screw was at the front, behind the interior door handle. The builder had sealed the area with thin glass, so I had to break that out to get access. I'm wondering what's behind the passenger door and the rear outside door handle....

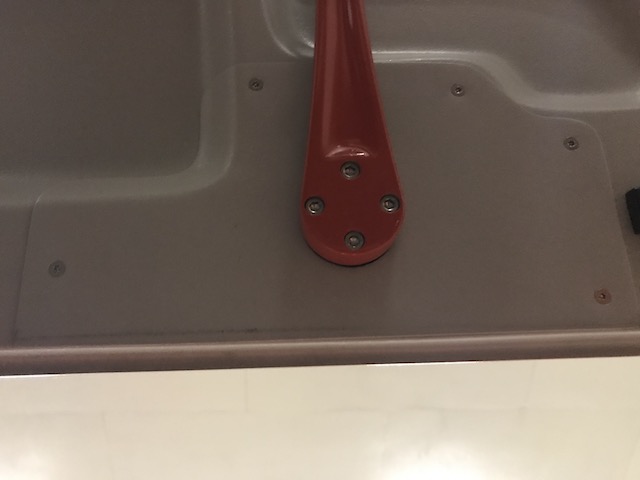

In the above image you can see the screw in the lower left that started to work it's way out. The head is bent forward in this pic.


~Marc
__________________
RV-10
N814RV
2017 Donation made X4

Last edited by Plummit : 07-03-2017 at 05:35 PM.
Reply With Quote
  #9
Old 07-03-2017, 06:40 PM
Lenny Iszak's Avatar
Lenny Iszak Lenny Iszak is offline

Join Date: Sep 2008
Location: Palm City, FL
Posts: 212
Default

If you have the IFlyRV-10 flush handle, you have something like this on the inside. More opportunity for loose screws. If that rear one comes off you could lose the rear pin and then the door.
Might be a good idea to cut a small hole that can be covered by a plug like Ed's and then scope those screws.
There's also a 1/4" screw in the center, it loosened up for me even with a star washer under it. The next time I'll get to it it will get a pair of Nordlock washers.




Here's how I covered mine so i can get to it. Not too pretty but it works.

__________________
Lenny Iszak
Palm City, FL
2014 RV-10, N311LZ - 350 hrs
Reply With Quote
  #10
Old 07-03-2017, 09:05 PM
Kyle Boatright Kyle Boatright is offline

Join Date: Aug 2005
Location: Atlanta, GA
Posts: 2,894
Default

Quote:
Originally Posted by NovaBandit View Post
I have a hole in my painted inner door skins to allow me access to the pin that connects the handle pushrod to the PlaneAround 3rd latch rack. It's probably around a 3/4" hole... enough for me to get the pin and safety wire done up with a needle nose.

I used a flush hole plug cap to cover it. It's just a black circle on my tan doors, and doesn't look bad at all, and it's removable.

I'd considered those. Do they A: Stay attached? And B: Not interfere with the internal mechanism?

I'd actually thought about thinning them a little and using rubber cement, pliobond, or some other "soft" adhesive to hold 'em in place.
__________________
Kyle Boatright
Atlanta, GA
2001 RV-6 N46KB
Reply With Quote
