Default Rear stick floor opening help needed

Hi guys,
Trying to finish up my floor and can't figure out how big the opening needs to be for the rear stick or front stick. My control surfaces are not in yet so I have no idea how much the stick actually moves. Anyone have any help on how big to make the back and front openings?

Thanks for any help,
Shawn

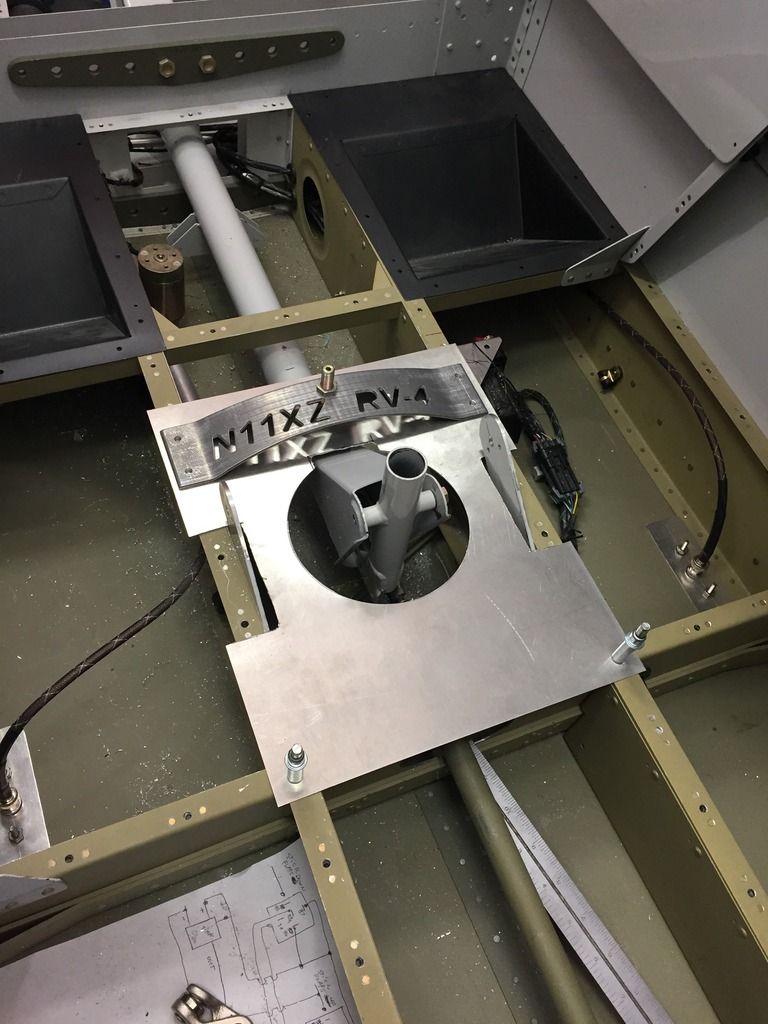

Pic is just a test piece.

[IMG][/IMG]
Reply With Quote
  #2
Old 06-30-2017, 05:56 PM
Michael Henning Michael Henning is offline

Join Date: Jun 2011
Location: Nashua, NH
Posts: 398
Default

I don't think there is flooring scheduled for that area. It's been a while, but I think my center bays are open, so I can drop my cell phone down there.
__________________
Mike
RV-4 #2750
N654ML
IO-360 200HP
WW150C Prop
1018 lbs
Flying
Reply With Quote
  #3
Old 06-30-2017, 07:13 PM
rv7charlie rv7charlie is online now

Join Date: May 2006
Location: Pocahontas MS
Posts: 1,985
Default

Mine (purchased) has what appears to be an aftermarket floor shifter boot around the rear stick. Its flange is almost wide enough to reach across the center tunnel.
Reply With Quote
  #4
Old 06-30-2017, 08:16 PM
Go Guy Go Guy is offline

Join Date: Sep 2009
Location: Jenks, Ok.
Posts: 21
Default

Don't know how big the opening needs to be, but I sure like your N # strap!
__________________
Rod Estep
RV8, BPE IO-360, C/S
5yr build, 10yr Flying
Still Grinning!

Dues Pd
Reply With Quote
  #5
Old 06-30-2017, 10:05 PM
SJordan SJordan is offline

Join Date: Sep 2016
Location: Scottsdale, AZ
Posts: 88
Default

Thanks guys for the input. I don't see anything in the plans for a "cover" back there but I sure do what to find a way to close up the center tunnel, if not my 4-year old is going to fill it up with Matchbox cars and Cheerios. It sure does look like its going to take one big boot back there to make it work. Maybe I will make an aluminum raised cover with a smaller boot then at the top. Rod the strap was built to allow me to move my seat all the back to that point as I'm 6'4. It started out as a 5lb block of aluminum and 8hr later in a CNC it weights a few ounces.

Thanks Again guys!
Reply With Quote
  #6
Old 07-01-2017, 02:45 AM
WAM120RV WAM120RV is online now

Join Date: Dec 2006
Location: Coventry. England
Posts: 563
Default Fabricate

Hi

This is an area where you need to fabricate something . I used 25 though sheet.

From the photo it looks like the torque tube is pulled up a bit high because if the bracket holding the rise joint.

There is a photos of this area on my build blog On the first page, just click on the blog link.
__________________
http://www.aerobuilder.blogspot.com


Steve Arnold
England

In completion stage of Loehle P5151
Built and now Flying G.BVLR Vans RV4
Rebuilt G.BDBD Tailwind
Rebuilt G BVTN Kitfox
Built G CDCD RV9A with WAM120
Riveted wings on Glastar G.LEZZ Now (G. SKUA)

Last edited by WAM120RV : 07-01-2017 at 02:48 AM.
Reply With Quote
  #7
Old 07-01-2017, 05:54 AM
brad walton brad walton is offline

Join Date: Jul 2007
Location: Cypress, TX
Posts: 454
Default

Don't forget about back seat air that comes up in this area also
Reply With Quote
  #8
Old 07-01-2017, 07:08 AM
SJordan SJordan is offline

Join Date: Sep 2016
Location: Scottsdale, AZ
Posts: 88
Default

Quote:
Originally Posted by WAM120RV View Post
Hi

This is an area where you need to fabricate something . I used 25 though sheet.

From the photo it looks like the torque tube is pulled up a bit high because if the bracket holding the rise joint.

There is a photos of this area on my build blog On the first page, just click on the blog link.
That's exactly what I'm thinking I need to build. Thanks for the link and pictures. I agree it seams I have that rod end to high in the brace but the the plans show 1" from center of rod end to the top of the mounting plate and the factory mount plate is spaces up with 3/4 stock so I set my rod end to -.25" below the floor. Does this sound correct? Maybe I need to recheck as I do have a lot of treads sticking up and my brace is 3/4" tall at that center point.

My plan for backseat air is a NACA duct in the bottom of the wing so I will put an air vent in the floor just outside of the center tunnel. My front tunnel is a smoke tank so I have no way of getting scatt tubing from front to back.

Thanks again for the help guys.
Reply With Quote
  #9
Old 07-01-2017, 07:00 PM
fixnflyguy fixnflyguy is offline

Join Date: Jan 2006
Location: Winston-Salem, N.C.
Posts: 782
Default what I did

I have been down that road when I built mine. I have lots of pictures, and many are already on threads here. I have a fully closed aluminum cover,leather boot, and fresh air vented from the bottom of the right wing ,through the tunnel and into the rear stick console. It's easier to send pictures to an email than post on here (for me). You need to have the front seat mounted to set your for and aft stick position at optimum angle.
__________________
Bill E.
RV-4/N76WE
41 Aeronca 65TC Defender
8A7 / Advance NC
Reply With Quote
  #10
Old 07-02-2017, 08:15 PM
Tomcat RV4 Tomcat RV4 is offline

Join Date: Nov 2007
Location: Poughkeepsie, NY 12603
Posts: 154
Default

Dont know how they will work ,as about to start flying,but installed 4 rv10 vents,2 front,2 for rear.Tomcatrv4
__________________
Tomcat RV4
dues paid and worth every penny
