  #11
Old 01-24-2018, 04:26 PM
Planecrazy232's Avatar
Planecrazy232 Planecrazy232 is offline

Join Date: Aug 2015
Location: Cape Coral, FL
Posts: 231
Default

This is a 6A not a 14 but this is how I have my panel set up. I like the screens on the pilots side. Dual alternators and a G5 for backups. Flys approaches on rails. Jesse Saint built this panel for me and did a great job on it.
__________________
Thanks,

Anthony

RV6-A "Aluminum Mistress"
Too many hobbies- not enough time.
2016, 2017 donor and happy to do it.

Last edited by Planecrazy232 : 01-24-2018 at 06:14 PM.
Reply With Quote
  #12
Old 01-24-2018, 05:56 PM
rgodsy's Avatar
rgodsy rgodsy is offline

Join Date: Dec 2013
Location: Peculiar, MO
Posts: 40
Default

Very impressive panel. Great job on the layout. Should make a good IFR platform.
__________________
RV-7A ... Building... QB Fuse 4 years and counting
Dual Garmin G3x Touch, GTN 650, GTR 200, GMA 245, GMC 307, GTX 345R, G5 ....
Aero Sport Superior IO 360 M1S CS

Dues Paid for 2018
Reply With Quote
  #13
Old 01-27-2018, 10:06 AM
Erimo's Avatar
Erimo Erimo is offline

Join Date: Jul 2015
Location: Marcoussis, France
Posts: 67
Default

Hi Antony,

Do you control the switches leds with a GAD 27 ? My avionic and devices are similar to your installation and I don't have light with it (the switches leds work well with direct power supply).
__________________
Eric
RV 14A - #140252 - flies
France
2018 dues paid
Reply With Quote
  #14
Old 01-27-2018, 01:04 PM
Planecrazy232's Avatar
Planecrazy232 Planecrazy232 is offline

Join Date: Aug 2015
Location: Cape Coral, FL
Posts: 231
Default

[quote=Erimo;1235295]Hi Antony,

Do you control the switches leds with a GAD 27 ? My avionic and devices are similar to your installation and I don't have light with it (the switches leds work well with direct power supply).[/QUOTE

I have a dedicated switch and dimmer knob to control my switch lights which I changed to incandescent because I didnít like the way the ledís dimmed. I let the rest of the panel use their respective photocells for dimming. I do not control with a GAD27.
__________________
Thanks,

Anthony

RV6-A "Aluminum Mistress"
Too many hobbies- not enough time.
2016, 2017 donor and happy to do it.
Reply With Quote
  #15
Old 01-27-2018, 10:56 PM
n982sx n982sx is offline

Join Date: Apr 2010
Location: Chicago, IL
Posts: 261
Default

Quote:
Originally Posted by Erimo View Post
Do you control the switches leds with a GAD 27 ?
I see Anthony doesn't control his lights with his GAD27. I use it to control my LED lights and some of the device screens.

I found the GAD27 dimmers worked very well for me. I have Red and White LED's which I control with separate dimmers. An LED red and white strip runs under the glare shield and individual red and white LED's mount under the panel to illuminate the floor and fuse panel.

I found that the LED's will dim very well for a dark cockpit. Not all of the devices in my panel can be dimmed with a dimmer switch, those dim automatically with the built in photocells.
__________________
Bob Meyers

Built and Flying RV-14A N626KM SN 140093 http://n626km.com
Built and Flying Sonex N982SX http://n982sx.com
Reply With Quote
  #16
Old 01-28-2018, 02:29 AM
Erimo's Avatar
Erimo Erimo is offline

Join Date: Jul 2015
Location: Marcoussis, France
Posts: 67
Default

Thanks.
My wiring don't work. I dedicated the lighting bus PWM3 to switches LED. They don't light if I connect the + end on 14V and the - to the GAD27 J271 connector. I use the dimmer supply with the Garmin GAD27 option. But they light with direct power supply.
!!??? I missed something ...
__________________
Eric
RV 14A - #140252 - flies
France
2018 dues paid
Reply With Quote
  #17
Old 01-28-2018, 05:22 AM
M McGraw's Avatar
M McGraw M McGraw is offline

Join Date: Dec 2012
Location: Greenback, TN
Posts: 403
Default

Quote:
Originally Posted by Erimo View Post
Thanks.
My wiring don't work. I dedicated the lighting bus PWM3 to switches LED. They don't light if I connect the + end on 14V and the - to the GAD27 J271 connector. I use the dimmer supply with the Garmin GAD27 option. But they light with direct power supply.
!!??? I missed something ...
Swap your + and - The GAD27 J271 for the PWM is positive
__________________
Marvin McGraw, 5TN4
RV-14. #140039 Complete
Flight hours: 200+
2018 Dues Paid
Reply With Quote
  #18
Old 01-28-2018, 06:45 AM
Erimo's Avatar
Erimo Erimo is offline

Join Date: Jul 2015
Location: Marcoussis, France
Posts: 67
Default Gad 27 and LED wiring

I will try.

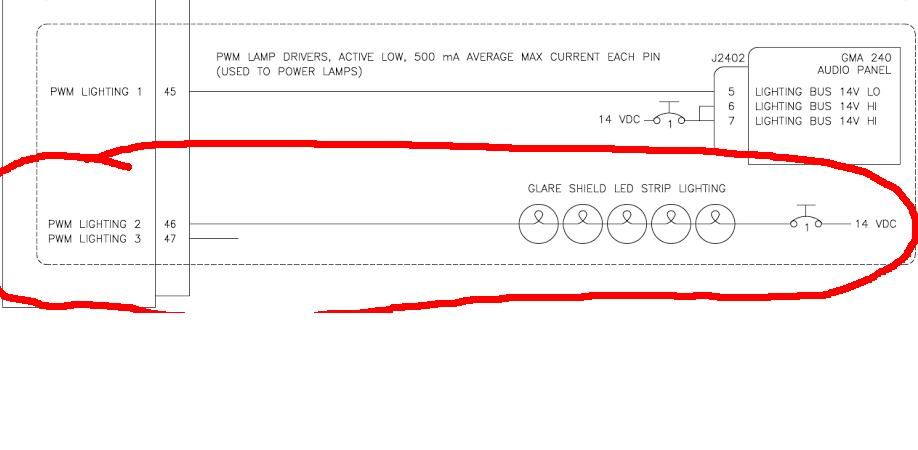

But then I don't understand the electrique diagram example on page 26-12 (figure 26-2.2) of G3X touch install manuel.
__________________
Eric
RV 14A - #140252 - flies
France
2018 dues paid

Last edited by Erimo : 01-28-2018 at 03:26 PM.
Reply With Quote
