  #631
Old 07-11-2018, 08:16 PM
Steve Melton's Avatar
Steve Melton Steve Melton is online now

Join Date: Apr 2011
Location: Cincinnati, OH
Posts: 1,664
Default

ABS may be able to survive on the firewall if it was trapped by fiberglass.
__________________
Steve Melton
Cincinnati, OH
RV-9A, Tip-up, Superior O-320, roller lifters, 160HP, WW 200RV, dual impulse slick mags, oil pressure = 65 psi, EGT = 1300F, flight hours = 600+ for all

Simplicity is the art in design.

see Amanda Melton for www.rvplasticparts.com
Reply With Quote
  #632
Old 07-11-2018, 08:27 PM
rv7charlie rv7charlie is offline

Join Date: May 2006
Location: Pocahontas MS
Posts: 2,902
Default

Try moving the start of the flair farther downstream, so the max area isn't achieved until it touches the face of the core. Also, 'invert' the transitions from round to square in the corners. Then re-run the analysis.

Then for grins, move the round section so it's centered on the face, with symetrical flairs to the edges, and re-run.

Charlie
Reply With Quote
  #633
Old 07-11-2018, 08:34 PM
Steve Melton's Avatar
Steve Melton Steve Melton is online now

Join Date: Apr 2011
Location: Cincinnati, OH
Posts: 1,664
Default

Quote:
Originally Posted by rv7charlie View Post
Try moving the start of the flair farther downstream, so the max area isn't achieved until it touches the face of the core. Also, 'invert' the transitions from round to square in the corners. Then re-run the analysis.

Then for grins, move the round section so it's centered on the face, with symetrical flairs to the edges, and re-run.

Charlie
thx for the help on this. Charlie wants the inlet shifted to pilot's side to clear a cable and maybe space limited vertically so I'm trying to make it compact. I plan to recontour and add an internal vane.
__________________
Steve Melton
Cincinnati, OH
RV-9A, Tip-up, Superior O-320, roller lifters, 160HP, WW 200RV, dual impulse slick mags, oil pressure = 65 psi, EGT = 1300F, flight hours = 600+ for all

Simplicity is the art in design.

see Amanda Melton for www.rvplasticparts.com
Reply With Quote
  #634
Old 07-11-2018, 08:43 PM
rv7charlie rv7charlie is offline

Join Date: May 2006
Location: Pocahontas MS
Posts: 2,902
Default

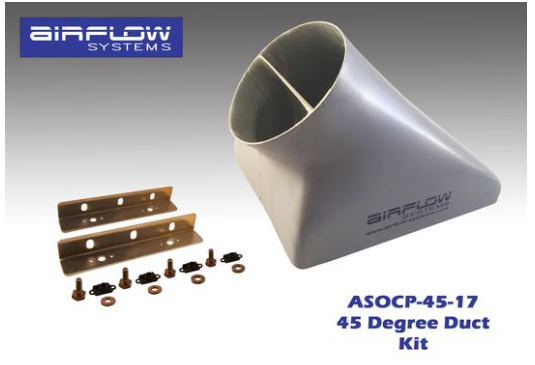

Sorry; my posts are purely about diffuser efficiency. The requesters may have specific needs when it comes to duct positioning.

If installation needs allow it, and you try the shape changes, you *might* not need the turning vane.

edit: duh; two Charlies; missed that it was another Charlie that requested the design

Last edited by rv7charlie : 07-11-2018 at 08:52 PM.
Reply With Quote
  #635
Old 07-11-2018, 08:50 PM
Steve Melton's Avatar
Steve Melton Steve Melton is online now

Join Date: Apr 2011
Location: Cincinnati, OH
Posts: 1,664
Default

Quote:
Originally Posted by rv7charlie View Post
Sorry; my posts are purely about diffuser efficiency. The requesters may have specific needs when it comes to duct positioning.

If installation needs allow it, and you try the shape changes, you *might* not need the turning vane.
appreciate the help, really. BTW the area ratio on this = 2. if we had the room we could make an efficient diffuser.
__________________
Steve Melton
Cincinnati, OH
RV-9A, Tip-up, Superior O-320, roller lifters, 160HP, WW 200RV, dual impulse slick mags, oil pressure = 65 psi, EGT = 1300F, flight hours = 600+ for all

Simplicity is the art in design.

see Amanda Melton for www.rvplasticparts.com
Reply With Quote
  #636
Old 07-11-2018, 09:17 PM
rv7charlie rv7charlie is offline

Join Date: May 2006
Location: Pocahontas MS
Posts: 2,902
Default

If you're talking inlet/core area ratio, the K&W ratios go beyond 3-1 with fairly short duct length. The example in the book has a rectangular inlet the same width as the core, with a flair on only one side. Very similar to the offset inlet in your drawing.

I initially found the info on shapes somewhat counter-intuitive, but there was test data demonstrating the efficiency.

Steve, check your PMs in a few minutes for more info.

Charlie
Reply With Quote
  #637
Old 07-12-2018, 07:14 AM
Zuldarin's Avatar
Zuldarin Zuldarin is offline

Join Date: Mar 2013
Location: Snoqualmie, wa
Posts: 296
Default

Quote:
Originally Posted by Steve Melton View Post
ABS may be able to survive on the firewall if it was trapped by fiberglass.
Just a data point for you Steve. I printed up an ABS oil cooler inlet shroud for my firewall mounted oil cooler last year. I flew it all summer including to Oshkosh and it had zero degradation that I could detect. On the flip side I also printed up an outlet duct and the radiant heat from the exhaust caused a slight bit of warping on that one so I removed it. Neither of these were reinforced by fiberglass at the time. The inlet duct is protected from exhaust radiant heat so the only heat I had to worry about was the ambient temps under the cowl and the temperature of the oil cooler itself. Neither of those were high enough to cause the plastic to soften.

This year when I replace my oil cooler I printed up a new inlet duct and put a couple of layers of carbon fiber over the duct for added security.
__________________
Darin
Snoqualmie WA
RV-9A Flying as of 03/2015
RV-10 Building - Wings - Flaps/Ailerons
www.DarinAnderson.com
2018 donation sent!
Reply With Quote
  #638
Old 07-12-2018, 07:37 AM
Chkaharyer99 Chkaharyer99 is offline

Join Date: Oct 2011
Location: Pilot Hill, CA
Posts: 810
Default

Quote:
Originally Posted by Zuldarin View Post
Just a data point for you Steve. I printed up an ABS oil cooler inlet shroud for my firewall mounted oil cooler last year. I flew it all summer including to Oshkosh and it had zero degradation that I could detect. On the flip side I also printed up an outlet duct and the radiant heat from the exhaust caused a slight bit of warping on that one so I removed it. Neither of these were reinforced by fiberglass at the time. The inlet duct is protected from exhaust radiant heat so the only heat I had to worry about was the ambient temps under the cowl and the temperature of the oil cooler itself. Neither of those were high enough to cause the plastic to soften.

This year when I replace my oil cooler I printed up a new inlet duct and put a couple of layers of carbon fiber over the duct for added security.
Darin,

Will you put the carbon fiber on the inside or outside or both inside and outside.
__________________
Charlie
RV-8
Reply With Quote
  #639
Old 07-12-2018, 08:24 AM
Zuldarin's Avatar
Zuldarin Zuldarin is offline

Join Date: Mar 2013
Location: Snoqualmie, wa
Posts: 296
Default

Quote:
Originally Posted by Chkaharyer99 View Post
Darin,

Will you put the carbon fiber on the inside or outside or both inside and outside.
I wrapped it on the outside. Its only there for structural support. I also inserted a 1" metal ring at the top so the hose clamp that holds the air ducting in place doesn't compress the glass/plastic if it gets too warm.

__________________
Darin
Snoqualmie WA
RV-9A Flying as of 03/2015
RV-10 Building - Wings - Flaps/Ailerons
www.DarinAnderson.com
2018 donation sent!
Reply With Quote
  #640
Old 07-12-2018, 12:06 PM
Chkaharyer99 Chkaharyer99 is offline

Join Date: Oct 2011
Location: Pilot Hill, CA
Posts: 810
Default

Quote:
Originally Posted by Zuldarin View Post
I wrapped it on the outside. Its only there for structural support. I also inserted a 1" metal ring at the top so the hose clamp that holds the air ducting in place doesn't compress the glass/plastic if it gets too warm.

Thank you. I was going to ask more questions but looked here ( www.darinanderson.com ) and saw your process. Nice work. Thanks again.
__________________
Charlie
RV-8
Reply With Quote
