Default Stuck Installing HS-01231C

Hi Everyone,
I am at the step on the Horizontal Stabilator where I finished cleco'ing the skins to the skeleton and before riveting, I am supposed to cleco and then final drill the HS-01231C's. If you look at the attached picture, I have cleco'ed it in one corner and I have pointed out where the other three holes on the long edge aren't lining up. I tried turning it, checked all four and same problem. Has anyone else seen this?

Rob
https://drive.google.com/open?id=1nc...w7EJUtzyxlmWN6
__________________
PPL
RV-12is
Emp. in progress - Complete thru Horizontal Stabilator Skeleton
Wings ordered 12/28/2018
2019 Dues Paid

Last edited by rgaynor : 01-20-2019 at 12:55 PM. Reason: image not showing
Reply With Quote
  #2
Old 01-20-2019, 01:03 PM
Mich48041 Mich48041 is offline

Join Date: Apr 2008
Location: Riley TWP MI
Posts: 2,858
Default

The rule of thumb for the RV-12 is that if it doesn't fit, the builder did something wrong.
__________________
Joe Gores
RV-12 Flying
Reply With Quote
  #3
Old 01-20-2019, 01:39 PM
rgaynor rgaynor is offline

Join Date: Dec 2018
Location: Boca Raton, FL
Posts: 18
Default

Anythingís possible but Iím not seeing how I could have messed this up.
__________________
PPL
RV-12is
Emp. in progress - Complete thru Horizontal Stabilator Skeleton
Wings ordered 12/28/2018
2019 Dues Paid
Reply With Quote
  #4
Old 01-20-2019, 02:22 PM
Piper J3's Avatar
Piper J3 Piper J3 is offline

Join Date: Nov 2014
Location: Hinckley, Ohio
Posts: 1,435
Default

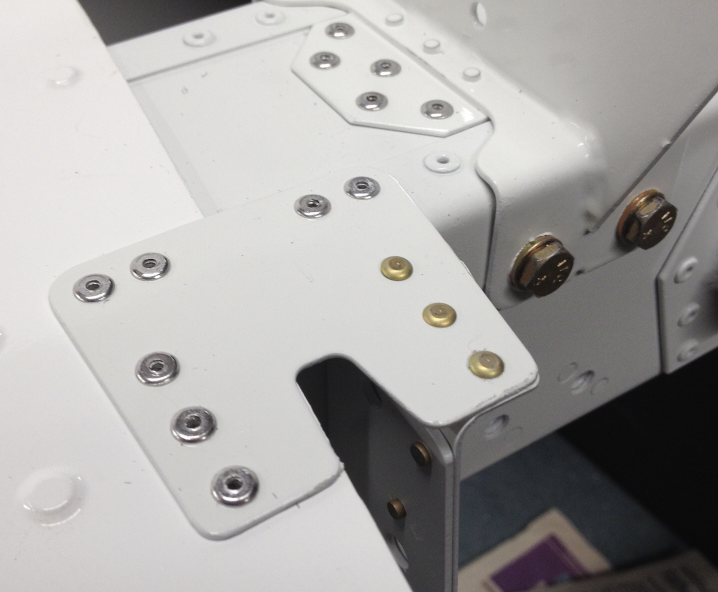

Try it this way...

__________________
-
Jim Stricker
Hinckley, Ohio (1OA2)
EAA #499867
PPL/ASEL 1970 - Sport Pilot since 2007
80 hrs Flying Aeronca Chief 11AC N86203
1130 hrs Flying 46 Piper J-3 Cub N6841H
RV-12 E-LSA #120058 AWC July 2012 N633CM
RV-12 Bought Flying Oct 2015 with 48TT - Hobbs now 459

LSRM-A Certificate 2016
Special Thanks... EJ Trucks - Crew Chief A-4 Skyhawk
MJ Stricker (Father & CFI) - 1st Lt. Captain B-17H
Reply With Quote
  #5
Old 01-20-2019, 02:29 PM
rgaynor rgaynor is offline

Join Date: Dec 2018
Location: Boca Raton, FL
Posts: 18
Default

Thank you Jim. I am putting them on exactly as you have them but only one of the holes at align to the forward spar lines up. The other three don't, no matter which one I try its the same alignment issue.
__________________
PPL
RV-12is
Emp. in progress - Complete thru Horizontal Stabilator Skeleton
Wings ordered 12/28/2018
2019 Dues Paid
Reply With Quote
  #6
Old 01-20-2019, 02:47 PM
DHeal DHeal is offline

Join Date: Sep 2006
Location: Windsor, California
Posts: 809
Default

If you look at the two pictures in the above posts, note that the inboard longitudinal rivet pattern is parallel to the edge of the gusset in the OP's pix and the reverse orientation in the #2 pix. Something is amiss here! Flip the gusset over? My plans are out in the hangar so I can't verify the correct orientation.
__________________
David Heal - Windsor, CA (near Santa Rosa)
EAA #23982 (circa 1965) - EAA Technical Counselor and Flight Advisor; CFI - A&I
RV-12 E-LSA #120496 (SV w/ AP and ADS-B 2020) - N124DH flying since March 2014 - 790+ hours (as of July 2019)!
VAF donation through June 2020.
Reply With Quote
  #7
Old 01-20-2019, 02:50 PM
Larco Larco is offline

Join Date: Mar 2005
Location: DVT Phoenix
Posts: 1,113
Default

It looks to me like the two photos show the opposite install. Maybe flip the peice over? Never heard of an RV12 hole miss match but there is always a chance?
__________________
Larry
Reply With Quote
  #8
Old 01-20-2019, 02:53 PM
rgaynor rgaynor is offline

Join Date: Dec 2018
Location: Boca Raton, FL
Posts: 18
Default

All great tip guys, I appreciate it. I flipped it over and same issue just different holes out of alignment.
__________________
PPL
RV-12is
Emp. in progress - Complete thru Horizontal Stabilator Skeleton
Wings ordered 12/28/2018
2019 Dues Paid
Reply With Quote
  #9
Old 01-20-2019, 03:09 PM
DHeal DHeal is offline

Join Date: Sep 2006
Location: Windsor, California
Posts: 809
Default

Have you looked at the pictures and instructions in the applicable SB? It appears your gusset plate is installed in the wrong orientation.

https://www.vansaircraft.com/pdf/ser...sb18-02-02.pdf

ps -- My comments are based on my construction of an RV-12. I think that the RV-12iS stab is the same.
__________________
David Heal - Windsor, CA (near Santa Rosa)
EAA #23982 (circa 1965) - EAA Technical Counselor and Flight Advisor; CFI - A&I
RV-12 E-LSA #120496 (SV w/ AP and ADS-B 2020) - N124DH flying since March 2014 - 790+ hours (as of July 2019)!
VAF donation through June 2020.
Reply With Quote
  #10
Old 01-20-2019, 03:17 PM
rgaynor rgaynor is offline

Join Date: Dec 2018
Location: Boca Raton, FL
Posts: 18
Default

I agree in my picture, my gusset is upside down, the problem is that when I flip it over I have the same exact problem. I can align the six vertical holes and one of the top horizontal holes but the other three horizontal holes do not align.
__________________
PPL
RV-12is
Emp. in progress - Complete thru Horizontal Stabilator Skeleton
Wings ordered 12/28/2018
2019 Dues Paid
Reply With Quote
