Default Garmin Pitot Installation

Does anyone have photos of the installation and routing of the electrical and tubes for the Garmin AOA and Pitot tube from the Pitot tube to the wing root. Did you drill extra holes and use snap bushings to route the tubes to the wing root?

Thanks.
Reply With Quote
  #2
Old 11-30-2018, 01:09 PM
mturnerb mturnerb is offline

Join Date: Apr 2015
Location: Ponte Vedra, FL
Posts: 767
Default

Quote:
Originally Posted by 77bonanza View Post
Does anyone have photos of the installation and routing of the electrical and tubes for the Garmin AOA and Pitot tube from the Pitot tube to the wing root. Did you drill extra holes and use snap bushings to route the tubes to the wing root?

Thanks.
See blog page starting here and "older posts": https://turnerb14a.blogspot.com/2018...ted-pitot.html

Used snap bushings with existing tooling/wire routing holes as I recall - one set of holes fits a snap bushing size that has perfect ID for the 1/4" plastic tubing (I have QB wings and some of the bushings were already in place). I added a PEX conduit to my wing which I used to route the pitot heat wiring. FYI pin 4 on one of the 2 molexes is reserved for pitot heat power - I am still running a separate ground and "sense" wire (sends data to G3x). I used 14Ga wiring for the hot/ground. Many people use shielded wire for the pitot heat. (I did not and hope I won't come to regret that decision!). If you use the standard fuselage harness it will have an adequately sized wire going to pin 4 for power.
__________________
Turner Billingsley
RV-14A In Progress
N14VB Reserved
https://turnerb14a.blogspot.com/

Last edited by mturnerb : 11-30-2018 at 01:22 PM.
Reply With Quote
  #3
Old 11-30-2018, 02:00 PM
mfleming's Avatar
mfleming mfleming is offline

Join Date: Sep 2016
Location: Joseph, Oregon
Posts: 300
Default

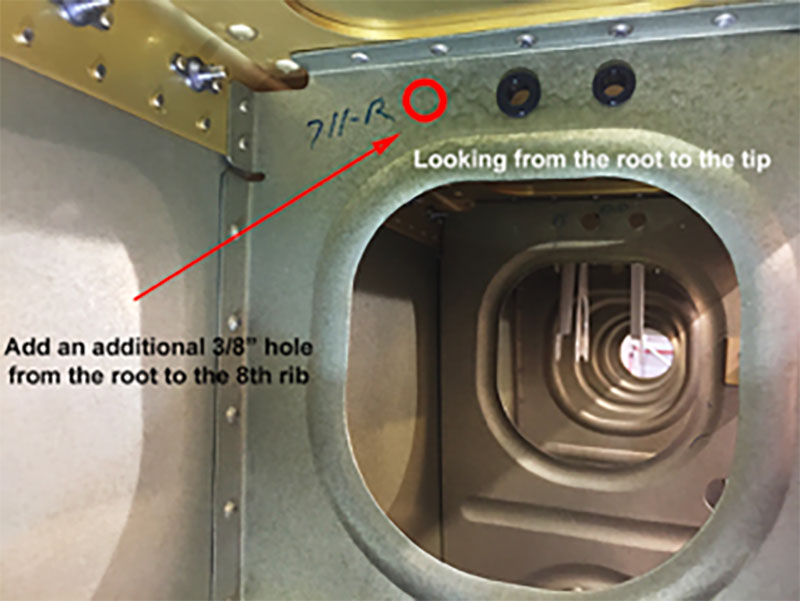

Here's a photo of the holes I drilled to run the pitot/AoA tubing and the wiring for the Garmin pitot tube.


The tubing/wire runs through the front of the ribs. I used a long drill bit to drill through the wing walk ribs. My photo says run to the 8th rib but that's just where my pitot is. Obviously run yours to wherever your pitot is located.

If your pitot is located outboard of the aileron bellcrank, you'll need to finesse these lines past it. My pitot was located just before the bellcrank to avoid this interference.


__________________
Michael Fleming
Joseph, OR
sagriver at icloud dot com

RV-7 Slider #74572
Started 11/2016
Empennage completed 11/2016 (sans fiberglass)
Ailerons and flaps completed 3/2017.
Wings completed 12/2017 (sans fiberglass)
Started on QB fuselage 01/2018
Donated and so should you

Last edited by mfleming : 11-30-2018 at 03:30 PM.
Reply With Quote
  #4
Old 11-30-2018, 03:27 PM
mfleming's Avatar
mfleming mfleming is offline

Join Date: Sep 2016
Location: Joseph, Oregon
Posts: 300
Default

Hers a photo of the business end.

__________________
Michael Fleming
Joseph, OR
sagriver at icloud dot com

RV-7 Slider #74572
Started 11/2016
Empennage completed 11/2016 (sans fiberglass)
Ailerons and flaps completed 3/2017.
Wings completed 12/2017 (sans fiberglass)
Started on QB fuselage 01/2018
Donated and so should you
Reply With Quote
  #5
Old 11-30-2018, 10:46 PM
77bonanza 77bonanza is offline

Join Date: Jan 2016
Location: Gravois Mills, MO
Posts: 13
Default

Thanks, I appreciate the photos and direction. I will be able to finish my pitot install.

Have a great holiday season!
