Default Magnetometer GMU 11 placement

Has anyone put the GMU 11 on the turtle deck of the RV10 with success?

Search feature didnít address this location that I could find. Other locations, like wing tip, is out for me due to tip tanks... so some where in the tail it will need to go.. was hoping for the deck vs hanging it from one of the ribs.
__________________
Ryan Allen, CFII

RV7 N612RA, flying since july 2012
E-170/175
RV10 Tail Kit complete, Wings building
Acro Sport 2, building
Reply With Quote
  #2
Old 02-03-2020, 10:28 PM
lr172 lr172 is offline

Join Date: Oct 2013
Location: Schaumburg, IL
Posts: 4,893
Default

I put my 22 on a custom shelf/bracket between two stringers just forward of the bulkhead aft of the baggage wall bulkhead. passed interference test and calibrated easily. Seems pretty accurate in my limited flying so far.

Seems others have done this as well with good results.

Larry
__________________
N64LR - RV-6A / IO-320, Flying as of 8/2015
N11LR - RV-10, Flying as of 12/2019
Reply With Quote
  #3
Old 02-04-2020, 05:14 AM
leok leok is offline

Join Date: Apr 2013
Location: Clarkston, MI
Posts: 320
Default

+1 LR172

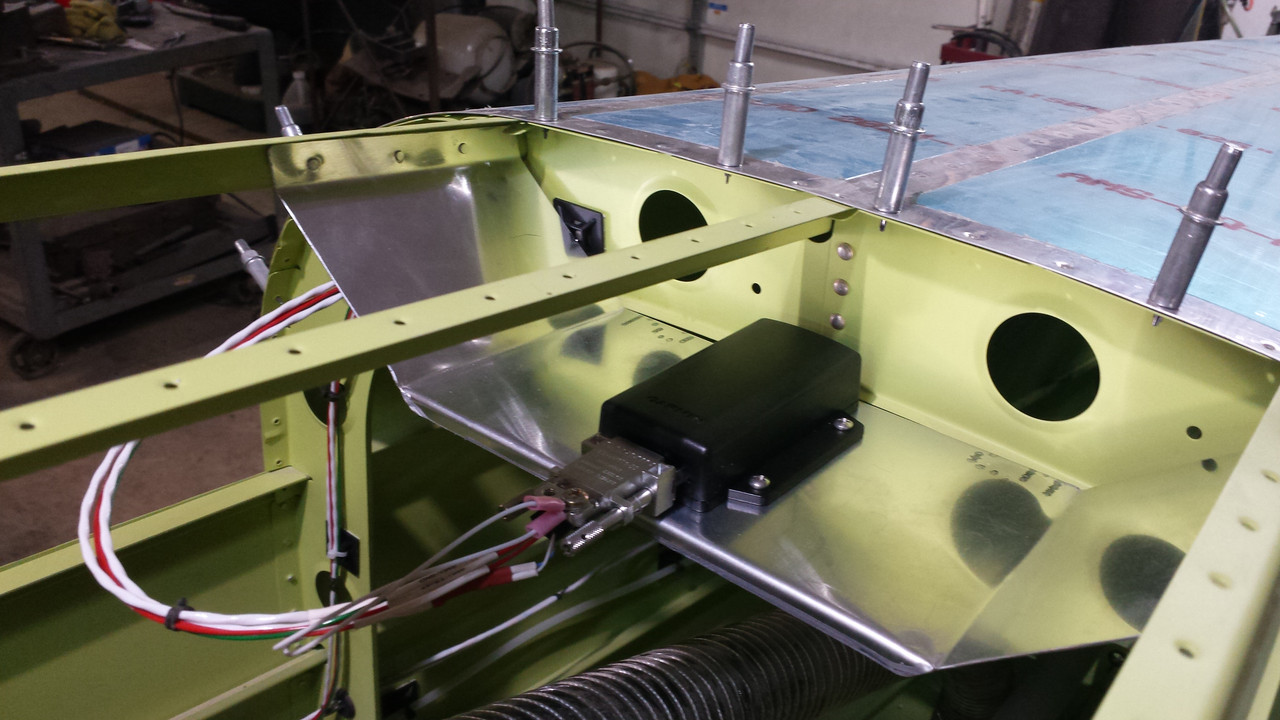

This is the shelf I made for the GMU11. Solid and no interference.

[IMG][/IMG]
__________________
Building started Oct 5th 2014, Flying since 1/16/2020
http://www.mykitlog.com/leok
RV Hotel, come by and visit if you're in town
Dues paid 2020
Reply With Quote
  #4
Old 02-08-2020, 08:06 AM
T.O.Craig T.O.Craig is offline

Join Date: Feb 2006
Posts: 165
Default

I had my gmu placed in the tail section for the first 8 hrs and would constantly get an "anomaly" pop up on the screen... Moved it to the bulkhead aft of the baggage compartment bulkhead and no more issues..I think the trim cables are to close. BTW we were within "testing limits' when we had it in the tail, but would still get the anomaly
__________________
Craig Rufi
FLYING NOW AFTER 13+ YEARS. NICE FLYING AIRCRAFT!!
RV-10/Empennage/Wings/QB Fuselage/Wiring/Doors done finally, Cowling done. Stein panel complete, and connecting all those wires :-))Thousand Oaks, Ca. Dues paid for 2019
Reply With Quote
  #5
Old 02-08-2020, 10:45 AM
Raiz Raiz is offline

Join Date: Nov 2009
Location: Cambridge, UK
Posts: 75
Default Vans bracket

Vans now sell a bracket that can be used to mount the GMU 11 in this location, although I've not fitted it myself yet. It's sold as an ADAHRS bracket but, if you read the small print, it also does the GMU 11. https://shop.vansaircraft.com/cgi-bi...uct=AHRS-mount
Reply With Quote
  #6
Old 02-08-2020, 11:27 AM
lr172 lr172 is offline

Join Date: Oct 2013
Location: Schaumburg, IL
Posts: 4,893
Default

Quote:
Originally Posted by Raiz View Post
Vans now sell a bracket that can be used to mount the GMU 11 in this location, although I've not fitted it myself yet. It's sold as an ADAHRS bracket but, if you read the small print, it also does the GMU 11. https://shop.vansaircraft.com/cgi-bi...uct=AHRS-mount
Unless they changed it, that bracket puts the AHRS next to the bell crank, ap servo and battery on the 10. Decent amount of ferrous metal in close proximity. Much better to be up near the top skin.

Larry
__________________
N64LR - RV-6A / IO-320, Flying as of 8/2015
N11LR - RV-10, Flying as of 12/2019
Reply With Quote
  #7
Old 02-08-2020, 01:39 PM
Raiz Raiz is offline

Join Date: Nov 2009
Location: Cambridge, UK
Posts: 75
Default

Yep, it's now right up under the top skin, as you can see from the plans here: https://www.vansaircraft.com/wp-cont...08/OP60-01.pdf
Reply With Quote
  #8
Old 02-08-2020, 01:41 PM
Raiz Raiz is offline

Join Date: Nov 2009
Location: Cambridge, UK
Posts: 75
Default

This thread http://www.vansairforce.com/communit...meter+location has some reports from people who have fitted the GMU 11 in your proposed location.
Reply With Quote
  #9
Old 02-11-2020, 05:32 AM
miyu1975's Avatar
miyu1975 miyu1975 is offline

Join Date: Apr 2008
Location: Indianapolis, IN
Posts: 1,065
Default

Good info all. I was kind of planning on installing the aerosport naca vent. I think that would probably interfer with the top of the bulkhead location mentioned. Unless maybe I put I further aft and still at the top of the bulkhead.

Has anyone placed them in the wing with success..like on or near an inspection plate?
__________________
Ryan Allen, CFII

RV7 N612RA, flying since july 2012
E-170/175
RV10 Tail Kit complete, Wings building
Acro Sport 2, building
Reply With Quote
  #10
Old 02-11-2020, 05:34 AM
miyu1975's Avatar
miyu1975 miyu1975 is offline

Join Date: Apr 2008
Location: Indianapolis, IN
Posts: 1,065
Default

Quote:
Originally Posted by leok View Post
+1 LR172

This is the shelf I made for the GMU11. Solid and no interference.

[IMG][/IMG]
Looks great.
__________________
Ryan Allen, CFII

RV7 N612RA, flying since july 2012
E-170/175
RV10 Tail Kit complete, Wings building
Acro Sport 2, building
Reply With Quote
