Default Problem with the elevator trim travel

Hi everyone

Just wondered if anyone could offer a solution as to why the elevator push rod doesn't seem long enough ?

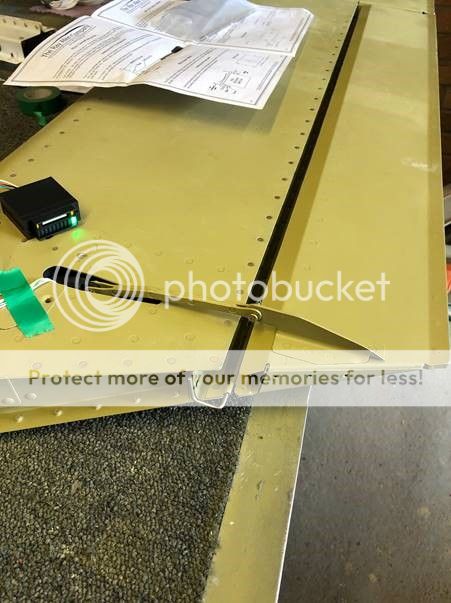

I hooked up the servo to the elevator trim tab. With the trim set in the neural position and the servo on mid travel the push rod is too short ?

i have to run run the servo motor almost fully out so the clevis pin fits



Any help would be appreciated

Last edited by Mark Browning : 03-23-2020 at 12:28 PM.
Reply With Quote
  #2
Old 03-23-2020, 12:17 PM
bkervaski's Avatar
bkervaski bkervaski is offline

Join Date: Mar 2017
Location: Birmingham, Alabama
Posts: 1,479
Default

Pics didn't post ...
__________________
RV-14A #140376
N196 (Flying)
2019 Bronze Lindy
Reply With Quote
  #3
Old 03-23-2020, 12:28 PM
Mark Browning Mark Browning is offline

Join Date: Dec 2010
Location: Doncaster England
Posts: 44
Default

sorry now posted

Last edited by Mark Browning : 03-23-2020 at 12:30 PM.
Reply With Quote
  #4
Old 03-23-2020, 12:31 PM
Carl Froehlich's Avatar
Carl Froehlich Carl Froehlich is online now

Join Date: Dec 2007
Location: Dogwood Airpark (VA42)
Posts: 2,408
Default

Correct. Mid position on the trim servo does not translate to the trim tab in neutral. The set up is designed to provide much more nose up trim than down. But if memory serves there was replacement connecting link so check on that.

Carl
Reply With Quote
  #5
Old 03-23-2020, 12:32 PM
MED MED is offline

Join Date: Jul 2015
Location: Aiken, SC
Posts: 522
Default

The trim tab travel is greater in one direction than the other. Iím pretty sure you will be fine.
__________________
MED
140236
N435MD
Miss March 2020
Reply With Quote
  #6
Old 03-23-2020, 12:43 PM
n982sx n982sx is offline

Join Date: Apr 2010
Location: Chicago, IL
Posts: 329
Default

Looks about right but can't quite tell from your pic. The travel is supposed to be very asymmetric. Mid travel will not be close to neutral.

Not sure of your kit number, but if it's an early kit, be sure you have the updated arm.
__________________
Bob Meyers

Built and Flying RV-14A N626KM SN 140093 http://n626km.com
Built and Flying Sonex N982SX http://n982sx.com

Last edited by n982sx : 03-23-2020 at 12:45 PM.
Reply With Quote
  #7
Old 03-23-2020, 12:45 PM
Mark Browning Mark Browning is offline

Join Date: Dec 2010
Location: Doncaster England
Posts: 44
Default

Quote:
Originally Posted by Carl Froehlich View Post
Correct. Mid position on the trim servo does not translate to the trim tab in neutral. The set up is designed to provide much more nose up trim than down. But if memory serves there was replacement connecting link so check on that.

Carl
Thanks Carl
Just noticed the tab travel limits are 13 degrees up and 35 Down so need to check that with the digital level
Reply With Quote
  #8
Old 03-23-2020, 12:50 PM
Mark Browning Mark Browning is offline

Join Date: Dec 2010
Location: Doncaster England
Posts: 44
Default

Quote:
Originally Posted by n982sx View Post
Looks about right but can't quite tell from your pic. The travel is supposed to be very asymmetric. Mid travel will not be close to neutral.

Not sure of your kit number, but if it's an early kit, be sure you have the updated arm.
The kit is Feb 2016, do you know when the date range of the updated arm
Thanks
Reply With Quote
  #9
Old 03-23-2020, 09:53 PM
n982sx n982sx is offline

Join Date: Apr 2010
Location: Chicago, IL
Posts: 329
Default

My kit was from 2013. I discovered a problem with the arm travel in early 2014. When I called Vans they said "Ya, we're working on it.'' so I wasn't the first to spot it.

A new arm came in the mail shortly after. Way before 2016.
__________________
Bob Meyers

Built and Flying RV-14A N626KM SN 140093 http://n626km.com
Built and Flying Sonex N982SX http://n982sx.com
Reply With Quote
  #10
Old 03-24-2020, 09:26 AM
Mark Browning Mark Browning is offline

Join Date: Dec 2010
Location: Doncaster England
Posts: 44
Default

Quote:
Originally Posted by n982sx View Post
My kit was from 2013. I discovered a problem with the arm travel in early 2014. When I called Vans they said "Ya, we're working on it.'' so I wasn't the first to spot it.

A new arm came in the mail shortly after. Way before 2016.
Hello Bob

Checking the min and max deflection on the trim i'm a little short in minimum up degrees... vans give "minimum up of 11, i have 8.5
I have checked the plans and the push rod length and piano hinge distances are correct.

I would be interested to see what measurements you guys have with max up defection when measuring with a ruler ? i have 11/16th
Reply With Quote
