  #11
Old 04-28-2008, 08:57 AM
N130WN's Avatar
N130WN N130WN is offline

Join Date: Jan 2005
Location: 8A7 (NC)
Posts: 211
Send a message via AIM to N130WN Send a message via MSN to N130WN
Thumbs up

Quote:
Originally Posted by az_gila View Post
Clamp them in a bolt, and chuck it in your drill press. You should able to cut it down to any size easily with a file....

gil A
Worked for me too.

http://bowenaero.com/mt/2007/12/aileron-stops.html
__________________
Larry Bowen
RV-8 Sold, RV-7 "Nifty II, Pay It Forward" in progress...
BowenAero.com
Reply With Quote
  #12
Old 04-28-2008, 10:32 AM
N941WR's Avatar
N941WR N941WR is offline

Join Date: Jan 2005
Location: NC
Posts: 4,958
Default

OK, I might be slow so I need to ask.

What is wrong with the stop Van's calls for in the plans?

It is very easy to install and simply works. Heck, I installed mine while the wings were on the cradle in my basement and they worked out fine.
__________________
Bill R.
RV-9 (Yes, it's a dragon tail)
Putting the "mental" in "Experimental"
Build the plane you want, not the plane others want you to build!
Huntersville, NC
www.repucci.com/bill/baf.html
Reply With Quote
  #13
Old 04-28-2008, 01:19 PM
RatMan RatMan is offline

Join Date: Jan 2005
Location: Southern Mississippi
Posts: 464
Default

Quote:
Originally Posted by N941WR View Post

What is wrong with the stop Van's calls for in the plans?
Nothing is wrong with the way the Vans says to do it. The -9 may be different but on the -8, the nylon/delrin stop is much easier to install and get the angles just right.
__________________
John Ratliff
N898R
RV-8
Saucier MS
Reply With Quote
  #14
Old 04-28-2008, 01:43 PM
az_gila's Avatar
az_gila az_gila is offline

Join Date: Jan 2005
Location: 57AZ - NW Tucson area
Posts: 3,507
Smile Adjustment..

Quote:
Originally Posted by RatMan View Post
Nothing is wrong with the way the Vans says to do it. The -9 may be different but on the -8, the nylon/delrin stop is much easier to install and get the angles just right.
...and can be adjusted without drilling out rivets....

gil A
__________________
Gil Alexander
EAA Technical Counselor, Airframe Mechanic
RV-6A VSB (Very Slow Build)
Grumman Tiger N12GA - flying
La Cholla Airpark (57AZ) Tucson AZ
Reply With Quote
  #15
Old 04-28-2008, 07:43 PM
N941WR's Avatar
N941WR N941WR is offline

Join Date: Jan 2005
Location: NC
Posts: 4,958
Default

Quote:
Originally Posted by RatMan View Post
Nothing is wrong with the way the Vans says to do it. The -9 may be different but on the -8, the nylon/delrin stop is much easier to install and get the angles just right.
I think they are the same. To install my stock stops, I drilled one hole, clecoed it in place, moved the aileron until it contacted the stop, adjusted the stop until it was flush with the aileron, drilled the second hole, and then riveted it in place. That was about as easy as it gets, IMHO.
__________________
Bill R.
RV-9 (Yes, it's a dragon tail)
Putting the "mental" in "Experimental"
Build the plane you want, not the plane others want you to build!
Huntersville, NC
www.repucci.com/bill/baf.html
Reply With Quote
  #16
Old 04-28-2008, 11:20 PM
RVG8tor's Avatar
RVG8tor RVG8tor is offline

Join Date: Mar 2007
Location: Olympia, WA
Posts: 427
Cool Glad the plan was simple for you.

Quote:
Originally Posted by N941WR View Post
I think they are the same. To install my stock stops, I drilled one hole, clecoed it in place, moved the aileron until it contacted the stop, adjusted the stop until it was flush with the aileron, drilled the second hole, and then riveted it in place. That was about as easy as it gets, IMHO.
Bill,

Since I started this thread I thought I would respond. I respect that you think the plan aileron stop was easy. However for someone who is just looking at this the DWG for the first time it is not very clear, just where do you decide to drill that first hole? I do understand that you can then pivot the stop around the first hole then mark and drill the second. But what if you get the first hole wrong, now you have a hole to repair. With the derlin method if you get it wrong you mill it to the proper size or start a new one, no major reworks. When I read about the derlin stop I thought that it was very simple, no guess work, and there was no metal angle to get hung up on something if god forbid it came loose. I have not done it yet but since there is a full size DWG of this area I can make a template that will show me what deflection there would be in the aileron hinge before it hits the Van's stop in the DWG, from there I can determine a size for the derlin stop I will need.

So from my perspective the milling and cutting of the Van's stop, then the TLAR method for the initial set is not as simple as milling the derlin stop. Just my take, it will be even easier if someone who is flying an -8 with this type of stop can tell me what size derlin stop they ended up with. I like the part where new ideas are attempted and passed on via this forum. To whoever thought of the derlin stop first thank you.

Cheers
__________________
Mike "Nemo" Elliott
RV-8A (Wings on hold, working Fuselage)
Olympia, WA
N800ME (reserved)
www.mykitlog.com/rvg8tor

Last edited by RVG8tor : 04-28-2008 at 11:23 PM.
Reply With Quote
  #17
Old 04-29-2008, 02:39 PM
rv8ch rv8ch is offline

Join Date: Feb 2005
Location: LSGG
Posts: 1,483
Send a message via Yahoo to rv8ch Send a message via Skype™ to rv8ch
Default delrin stop diameter

Hi,

I'm not yet flying, but I just went down and mic'ed my delrin stops, and they came out at a hair over 1/2 inch (0.505").

Regards,
Mickey
__________________
Mickey Coggins
http://rv8.ch
Reply With Quote
  #18
Old 04-29-2008, 02:54 PM
N941WR's Avatar
N941WR N941WR is offline

Join Date: Jan 2005
Location: NC
Posts: 4,958
Default

Quote:
Originally Posted by RVG8tor View Post
... However for someone who is just looking at this the DWG for the first time it is not very clear, just where do you decide to drill that first hole?
Mike,

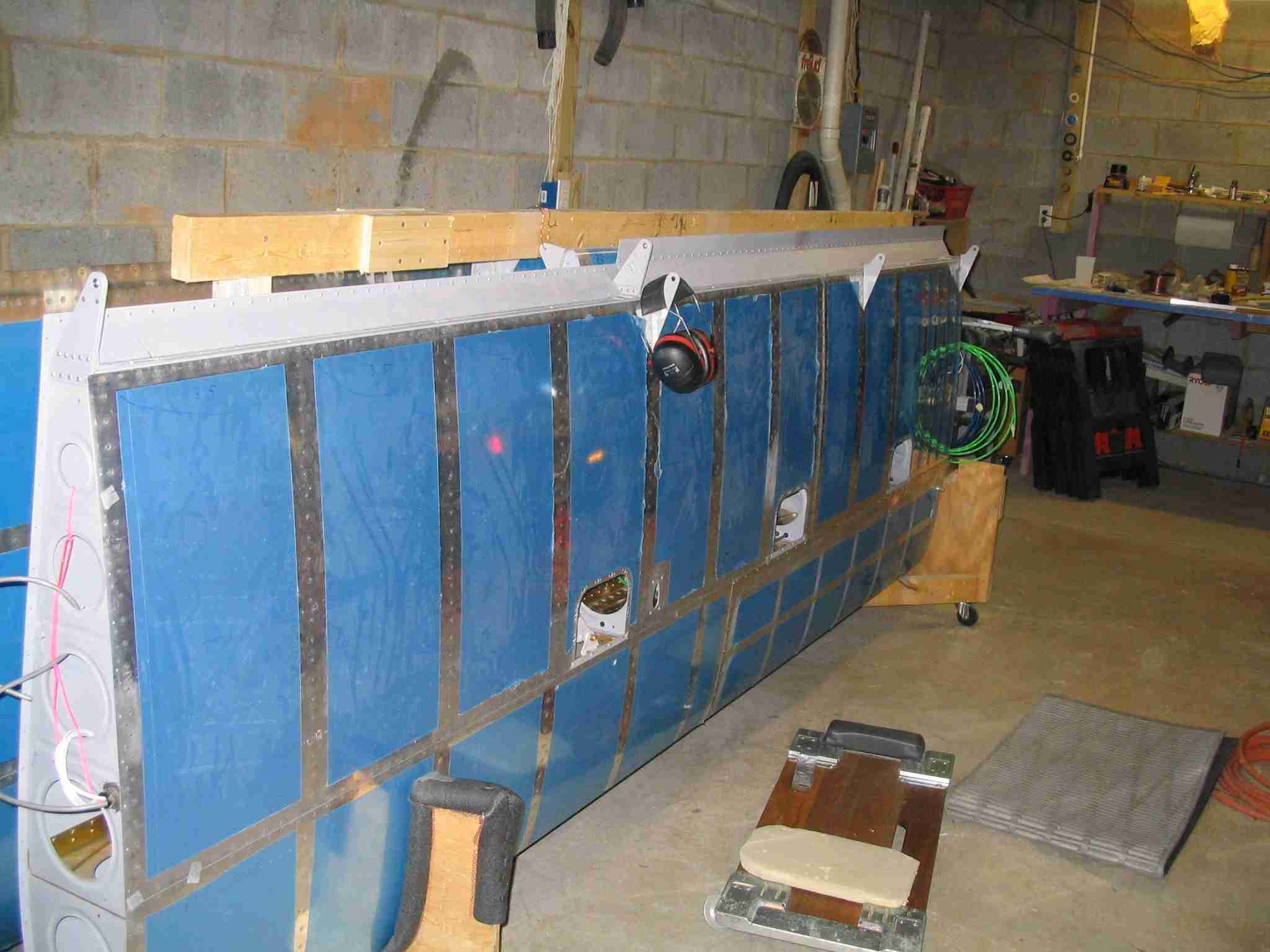

I think this is the difference in the kits. On the -9 there are two pre-punched holes on the inboard aileron bracket. (Unfortunately I didn't take a good picture of this during construction.) If you expand the following picture, you can just make out two rivet holes 1/2 down aileron bracket. The aileron bracket is just above the ear muffs, which are hanging on the outboard flap bracket. Those holes are there for aileron stop.

Then it was just a matter of making the stop per the plans.

My ignorance is showing as I assumed those holes were pre-punched in all the wing kits, thanks for the education. Man, Van's really spoiled me!
__________________
Bill R.
RV-9 (Yes, it's a dragon tail)
Putting the "mental" in "Experimental"
Build the plane you want, not the plane others want you to build!
Huntersville, NC
www.repucci.com/bill/baf.html

Last edited by N941WR : 04-29-2008 at 02:57 PM.
Reply With Quote
  #19
Old 04-29-2008, 05:14 PM
Mack 8 Mack 8 is offline

Join Date: Jul 2005
Posts: 2
Default

I used 0.5" delrin rod and it came out ok. In the past it has been said that this method although easier may place to much stress on the AN3 bolt so later I may use the delrin as a guide to where to place the plans version of the stop.

Greg
RV8 Renesis Rotary
Reply With Quote
  #20
Old 05-02-2008, 11:49 AM
RVG8tor's Avatar
RVG8tor RVG8tor is offline

Join Date: Mar 2007
Location: Olympia, WA
Posts: 427
Default My method to find the size

Mind you I have not made the Derlin stops yet but this is what I did to get the first hack on the size. The DWG in the plans for this area is full size, so I traced the bracket that is on the Aileron, the top of which will get the Derlin stop. I then cut this out, and with a push pin at the pivot point, rotated the template until it hit the Van's stop (yellow highlight in photo). I taped the template in place then traced the line of the aileron hinge (one that attaches to the rear spar) through the template. The made a perpendicular line though the upper aileron hinge point (this gets the push rod and bushing the Derlin stop will go around. Took a compass and made the circle tangent to the aileron hinge (green highlight). As you can see from the photo it looks like a Derlin stop that is .660 inches will be the ideal size. Of course this assumes the Van's stop is in the correct location and there is not much variation based on how the ailerons are built. I think this measurement will be a starting point for the prototype then I can refine from there. Time will tell how this idea works out, this was just my technique. It does look like a standard 1/2 inch Derlin rod might be close enough but since I already have the 7/8 rod I think I will just try to mill it down to .660. Sorry the pictures turned out fuzzy!

Cheers

__________________
Mike "Nemo" Elliott
RV-8A (Wings on hold, working Fuselage)
Olympia, WA
N800ME (reserved)
www.mykitlog.com/rvg8tor
Reply With Quote
